CA750X

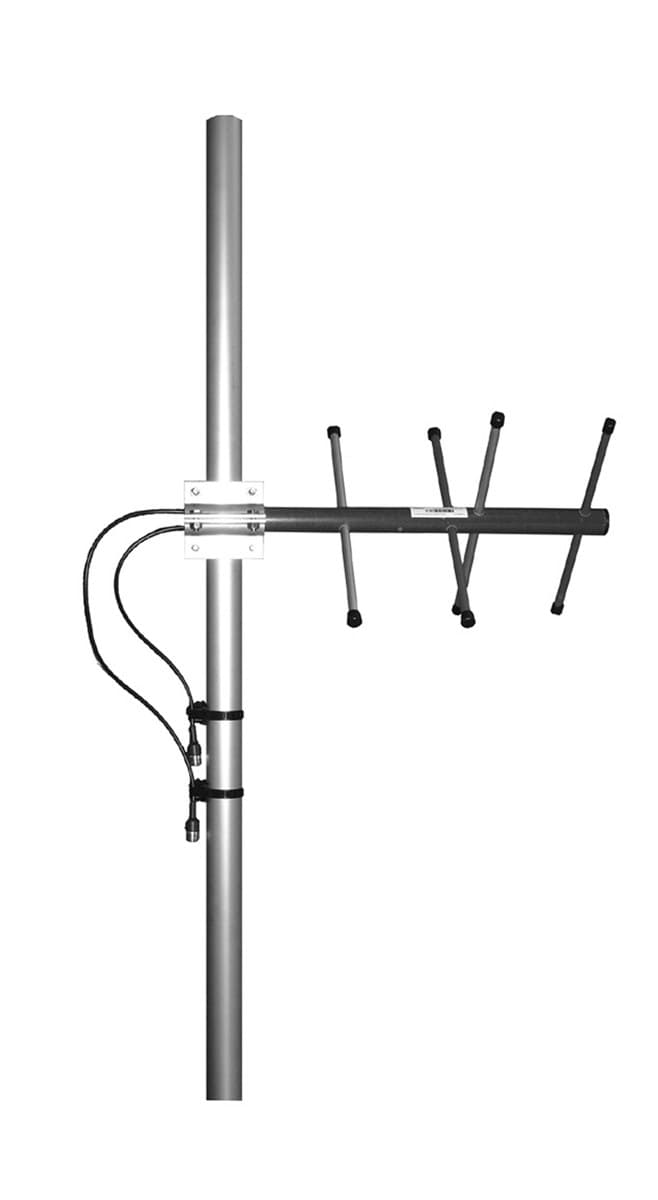

The CompleTech CA750X is a high-performance cross-polarized Yagi antenna engineered for robust communication solutions. Operating within the precise 703-803 MHz frequency range, this antenna is optimized for demanding applications. It features dual/circular polarization, a characteristic that enhances signal integrity and multipath mitigation. The CA750X boasts a radiator constructed from high-conductivity copper, ensuring efficient signal transmission and reception across its operational spectrum. Delivering a consistent gain of 6/6 dBi, the CA750X provides reliable signal strength for extended range communication. Its superior performance is further underscored by a VSWR of less than 1.5, minimizing signal reflection and maximizing power transfer. For versatile system integration, the antenna supports both N- and 7/16-female connector types, offering flexibility for various installation requirements. The CA750X is built for durability and longevity in challenging environments. Its radome is constructed from UV-resistant ABS and FG (fiberglass) materials, filled with PU (polyurethane) foam, providing excellent protection against environmental factors. This robust construction ensures reliable operation and extended service life. The mounting system is designed to accommodate pole diameters ranging from 35 mm to 60 mm, facilitating straightforward installation on standard infrastructure. Furthermore, the antenna is engineered with a low wind load of 44 N, contributing to its stability and resistance to wind-induced stress. The CA750X is rated IP67, guaranteeing comprehensive protection against dust ingress and immersion in water up to 1 meter for 30 minutes. It is designed to operate reliably across an extensive temperature range, from -40ºC to +80ºC, making it suitable for extreme climatic conditions. Key internal features include a DC-shorted feed point, integrated impedance compensation, and an integrated RF choke, all contributing to its exceptional reliability and optimized performance in critical applications such as industrial communication, telecommunications networks, and broadcasting infrastructure.
