Brad Harrison 413P401 - MINI-CHANGE 4 PORTPARALLEL WIRED / CONNECTOR

Brad Harrison 413P401 MINI-CHANGE 4 PORTPARALLEL WIRED / CONNECTOR

Alternate Item Number: 1300600039

UPC: 786788413415


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Brad Harrison 413P401 is a Mini-Change® A-Size double-ended cordset with 4-pole connectivity. This cordset features straight male to straight female connections and uses a durable PVC cable for flexibility and resistance to industrial conditions. Designed for secure electrical connections, it links sensors, actuators, and control devices in automated systems. The A-Size designation ensures compatibility with standard Mini-Change systems. Constructed with 18/4 AWG wire gauge, it delivers robust performance in industrial environments. Ideal for automation, machinery, and equipment interconnection.
  • 4-pole Mini-Change® A-Size connector cordset
  • Straight male to straight female connections
  • Durable PVC cable for flexibility and resistance
  • 18/4 AWG wire gauge for robust performance
  • Compatible with standard Mini-Change systems

Specifications

Amperage Rating
7 A
Connection Type
Straight Male to Straight Female
Environmental Conditions
IP67
Material
PVC
Material
PBT
Poles
4P
Series
MINI-CHANGE
Size
A-SIZE
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
-13 F
Temperature Rating, Minimum
-25 C
Voltage Rating
600V
Package Weight (Imperial)
2.000 L
Package Weight (Metric)
0.907 kg
FEMALE TRUNK MALE DROP4A PER LEG 8A MAX. PER UNIT

DN-PT2

FEMALE TRUNK MALE DROP4A PER LEG 8A MAX. PER UNIT
4 Position Circular Connector, Wire-to-Board, Sealable, Printed Circuit Board, Signal, Panel Mount, Reverse Gender, Triad 01 Panel/PCB Connector

6-1437719-4

4 Position Circular Connector, Wire-to-Board, Sealable, Printed Circuit Board, Signal, Panel Mount, Reverse Gender, Triad 01 Panel/PCB Connector
Ultra-Lock® (M12) Single Keyway with PG9 Cable Fitting, Female, 4 Pole, Straight, Cable Diameter 4.10 - 8.10mm

WA4000-32

Ultra-Lock® (M12) Single Keyway with PG9 Cable Fitting, Female, 4 Pole, Straight, Cable Diameter 4.10 - 8.10mm

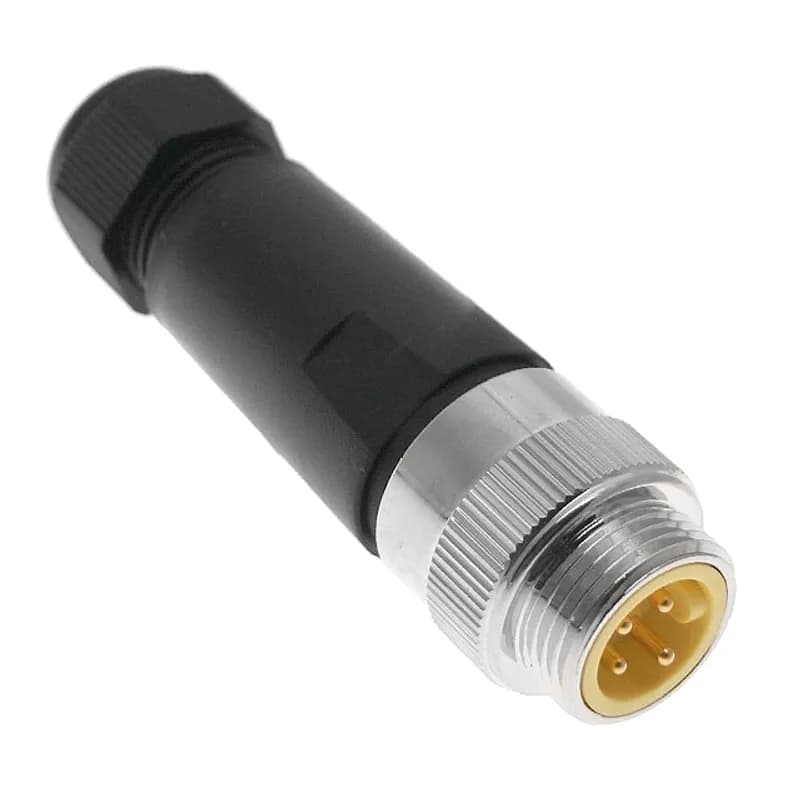

MIN Size I, 4 Pole, Male Straight with Male Threads, Field Wireable, Nickel Plated Brass, 5-13mm

MIN-4MPM-FW

MIN Size I, 4 Pole, Male Straight with Male Threads, Field Wireable, Nickel Plated Brass, 5-13mm
MIC 4P M/MP ST/ST D-CODED 10M

E11A06004M100

MIC 4P M/MP ST/ST D-CODED 10M
Mini-Change® A-Size Single-Ended Cordset, 2 Poles, Female (90°) to Pigtail, 1.83m Length

102001A01F060

Mini-Change® A-Size Single-Ended Cordset, 2 Poles, Female (90°) to Pigtail, 1.83m Length
Mini-Change® A-Size Single-Ended Cordset, 3 Poles, Female (Straight) to Pigtail, 16 AWG, Rubber Cable, 3.66m (12.0') Length

103000C01F120

Mini-Change® A-Size Single-Ended Cordset, 3 Poles, Female (Straight) to Pigtail, 16 AWG, Rubber Cable, 3.66m (12.0') Length
Mini-Change® A-Size Single-Ended Cordset, 2 Poles, Female (90°) to Pigtail, 6.10m Length

102001A01F200

Mini-Change® A-Size Single-Ended Cordset, 2 Poles, Female (90°) to Pigtail, 6.10m Length

Frequently Asked Questions

What is the maximum voltage this junction box can handle?

The maximum voltage this junction box can handle is 600V.

What is the operating temperature range for this product?

The operating temperature range for this product is -25° to +90°C.

What is the IP rating of this passive junction box?

The IP rating of this passive junction box is IP67.

How many ports does this junction box have?

This junction box has 4 ports.

What type of home run connector is used on this device?

The home run connector used on this device is a Mini-Change with 10 poles.

What is the maximum current per contact for this junction box?

The maximum current per contact for this junction box is 7.0A per module.

Does this junction box have LED indicators?

No, this junction box does not have LED indicators.

What material is the housing of this junction box made from?

The housing of this junction box is made from PBT.

What is the net weight of this junction box?

The net weight of this junction box is 408.232 grams.

What is the wiring configuration for this junction box?

The wiring configuration for this junction box is parallel.
