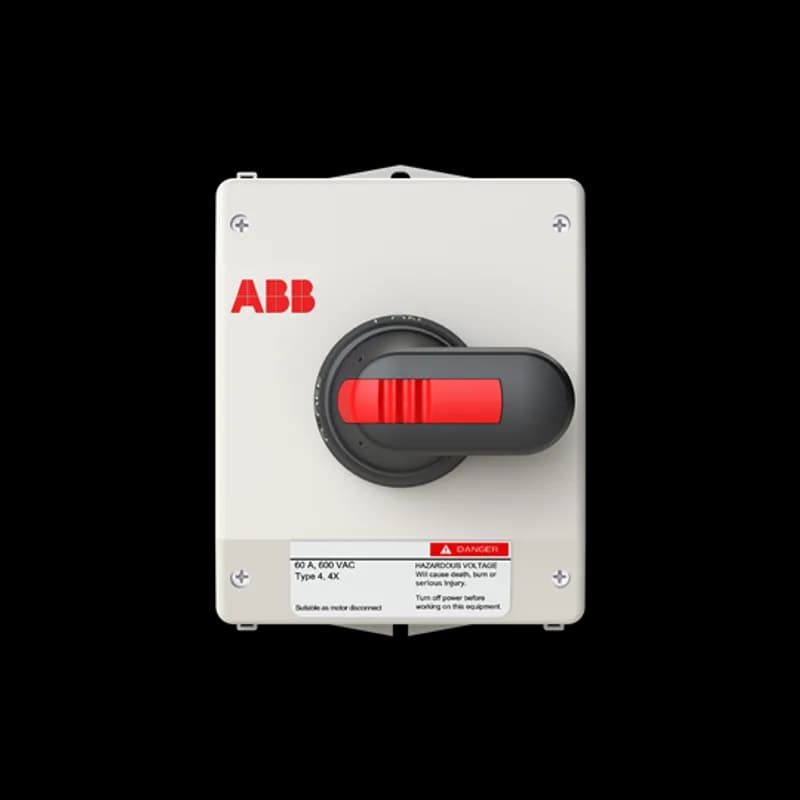

ABB - Electrification EOT560N3PAP-SBA - Enclosed Rotary Disconnects 3Pole 60A Plastic NEMA Type 4/4X Watertight Black Selector handle
ABB - Electrification

EOT560N3PAP-SBA

UPC: 783164694482

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Ensure robust electrical isolation and control with the ABB EOT560N3PAP-SBA Enclosed Rotary Disconnect. This 3-pole, 60A switch is engineered for demanding industrial and commercial environments, offering superior protection and operational reliability. Its durable plastic enclosure meets stringent NEMA Type 4/4X watertight and corrosion-resistant standards, making it ideal for applications exposed to moisture, dust, and corrosive elements. The integrated selector handle provides clear and intuitive operation for safe power disconnection and reconnection. Key features include: * **3-Pole Configuration:** Suitable for three-phase power circuits. * **60A Current Rating:** Designed to handle significant electrical loads. * **NEMA 4/4X Watertight Enclosure:** Provides exceptional protection against water ingress and harsh environmental conditions. * **Durable Plastic Construction:** Offers resilience and longevity in challenging settings. * **Selector Handle:** Facilitates easy and safe switching operations. The EOT560N3PAP-SBA is a critical component for power distribution, motor control, and safeguarding machinery in sectors such as manufacturing, water treatment, and chemical processing. Trust ABB's commitment to quality and innovation for dependable performance and enhanced operational safety in your critical applications.
  • 3-Pole Configuration for Three-Phase Power
  • 60A Current Rating for Industrial Loads
  • NEMA Type 4/4X Watertight & Corrosion Resistant Enclosure
  • Durable Plastic Housing for Harsh Environments
  • Intuitive Selector Handle for Safe Operation

Specifications

Package Dimensions (L x W x H)
0.001 IN x 0.001 IN x 0.001 IN
Package Dimensions (L x W x H)
0.0025 cm x 0.0025 cm x 0.0025 cm
Package Weight (Imperial)
0.001 L
Package Weight (Metric)
0.001 kg
