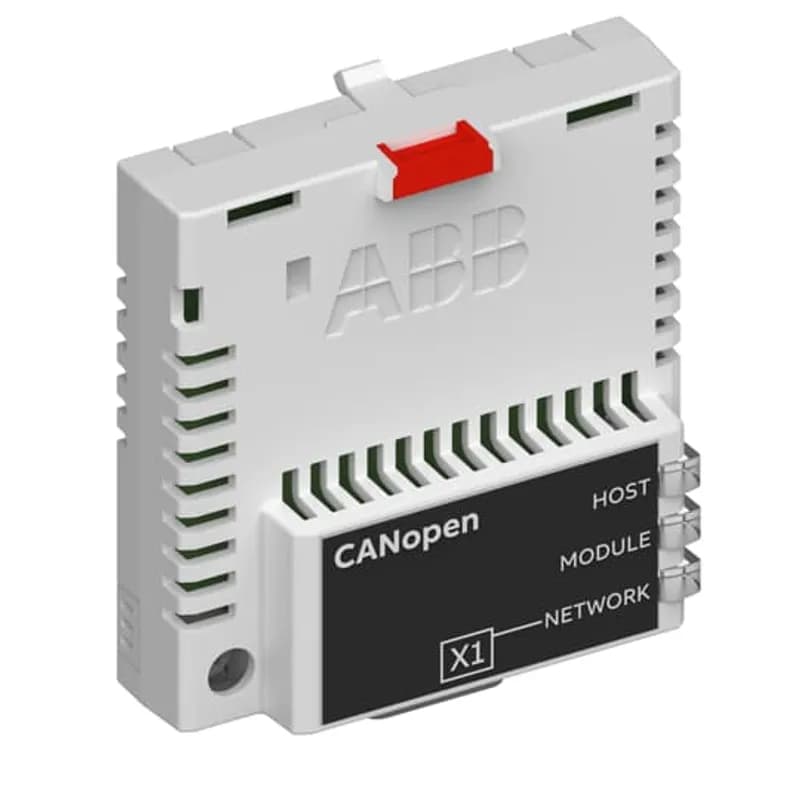

ABB Low Voltage Drives FCAN-01-KIT CANopen is a higher layer protocol based on the CAN (Control Area Network) serial bus…
Alternate Item Number: 68469376
UPC: 662348075425
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- CANopen Communication Interface Module (FCAN-01-KIT)
- Fulfills CiA DSP 402 (Drives and Motion Control) standard
- Three independent CAN Bus channels (CAN 1, CAN 2, CAN 3)
- Supports transmission rates up to 1 MBit/s
- 9-pole D-SUB female fieldbus connector
Specifications
Frame Size | 0 |
Height | 2.8 in |
Length | 1.06 in |
Type | FCAN Drive |
Weight | 0.045 lb |
Width | 2.52 IN |

FPBA-01-KIT
PROFIBUS is an open serial communication standard that enables data exchange between all kinds of automation components. The physical transmission medium of the bus is a twisted pair cable (according to the RS-485 standard). The maximum length of the bus cable is 100 to 1200 meters, depending on the selected transmission rate. Up to 31 stations can be connected to the same PROFIBUS system without the use of repeaters.
FMK-A-R1
R1 Flange Mounting Kit for the ACS550 drives allows mounting the drive with the heatsink external to a 3rd party enclosure. Use of the flange kit requires removal of the drive cover, reducing protection to IP00. R1 through R4 flange kits can be used with 3rd party UL Type 1 & 12 (NEMA 1 & 12) enclosures.Frequently Asked Questions
What is the maximum number of devices for FCAN-01?
The FCAN-01 adapter supports a maximum of 127 devices on the network.
What is the baud rate range for FCAN-01?
The FCAN-01 supports baud rates from 10 kbit/s up to 1 Mbit/s.
What is the maximum number of devices for FENA-01?
The FENA-01 adapter supports nearly unlimited devices on the network.
What is the baud rate for FENA-01 on EtherNet/IP?
The FENA-01 supports 10, 100, and 100 Mbit/s for EtherNet/IP.
What is the maximum number of devices for FPBA-01?
The FPBA-01 supports 32 devices per segment, with a total of 126 devices.
What is the baud rate range for FPBA-01?
The FPBA-01 supports baud rates from 9.6 kbit/s to 12 Mbit/s.
What is the maximum number of devices for Modbus-RTU adapters?
Modbus-RTU adapters like FMBA-01, FSCA-01, and FRSA-00 support 247 devices.
What CANopen standard does the FCAN-01 adapter fulfill?
The FCAN-01 adapter fulfills the CiA (CAN in Automation) standard DSP 402.
What communication profiles does the FPBA-01 support?
The FPBA-01 supports PROFIdrive, ABB Drives, Transparent 16, and Transparent 32 communication profiles.
What Modbus-RTU adapter modules are available?
The available Modbus-RTU adapter modules are FMBA-01, FSCA-01, and FRSA-00.
