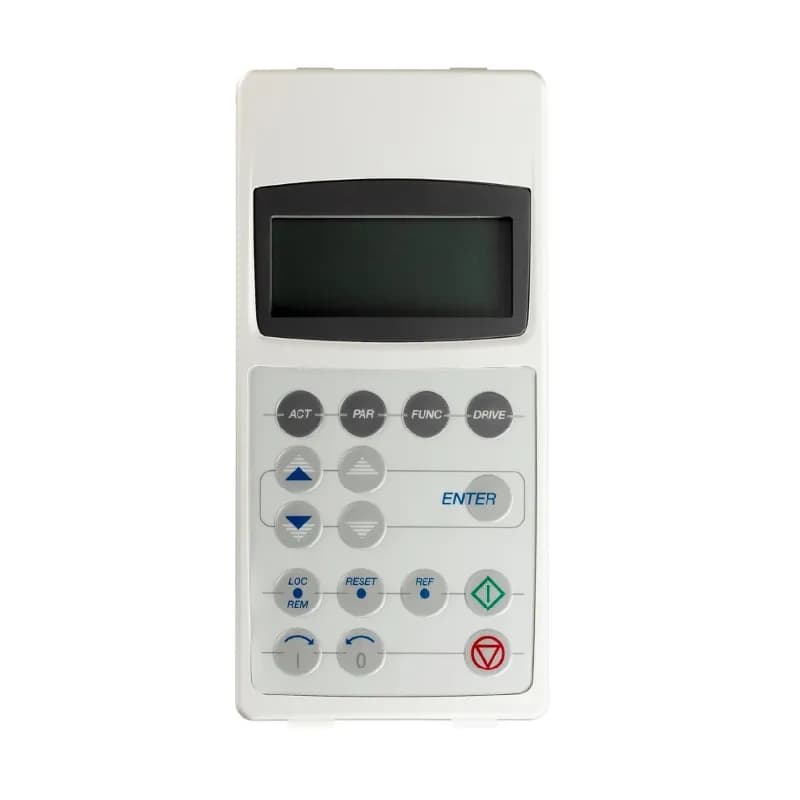

ABB - Low Voltage Drives DCSCDP312-KIT-DCS500 - CDP312R Control panel option. Requires additional mounting platform and SDCS-Com-8x drive interface card.

ABB Low Voltage Drives DCSCDP312-KIT-DCS500 CDP312R Control panel option. Requires additional mounting platform and SDCS-Com-8x…

Alternate Item Number: 3AUA489002B4378

UPC: 662348075357

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

Enhance your ABB DCS500 low voltage drive system with the CDP312R Control Panel Option (SKU: DCSCDP312-KIT-DCS500). This specialized accessory provides advanced control and monitoring capabilities, crucial for optimizing industrial processes. The CDP312R is designed for direct integration with ABB's DCS500 drive series, offering intuitive local operation and diagnostics. Please note that this kit requires an additional mounting platform and the SDCS-Com-8x drive interface card for complete installation and functionality. The CDP312R facilitates precise parameter adjustment and real-time performance feedback, ensuring your drive operates at peak efficiency. ABB's commitment to robust engineering ensures this control panel option delivers reliability and precision in demanding industrial environments. Its user-friendly interface simplifies complex drive management, making it an essential upgrade for applications requiring detailed control over motor speed, torque, and other critical parameters. The CDP312R is manufactured in the US, adhering to strict quality standards. This control panel option is a key component for industries that rely on sophisticated variable speed drive technology for their operations, including manufacturing, material handling, and process automation. By providing direct access to drive functions, it minimizes downtime and maximizes productivity. The CDP312R Control Panel Option is a testament to ABB's dedication to providing comprehensive drive solutions.
  • Enhances control and monitoring for ABB DCS500 drives
  • Requires additional mounting platform and SDCS-Com-8x interface card
  • Designed for seamless integration with DCS500 drive systems
  • Facilitates precise parameter adjustment and real-time feedback
  • Manufactured in the US for reliability and quality

Specifications

Mounting Type

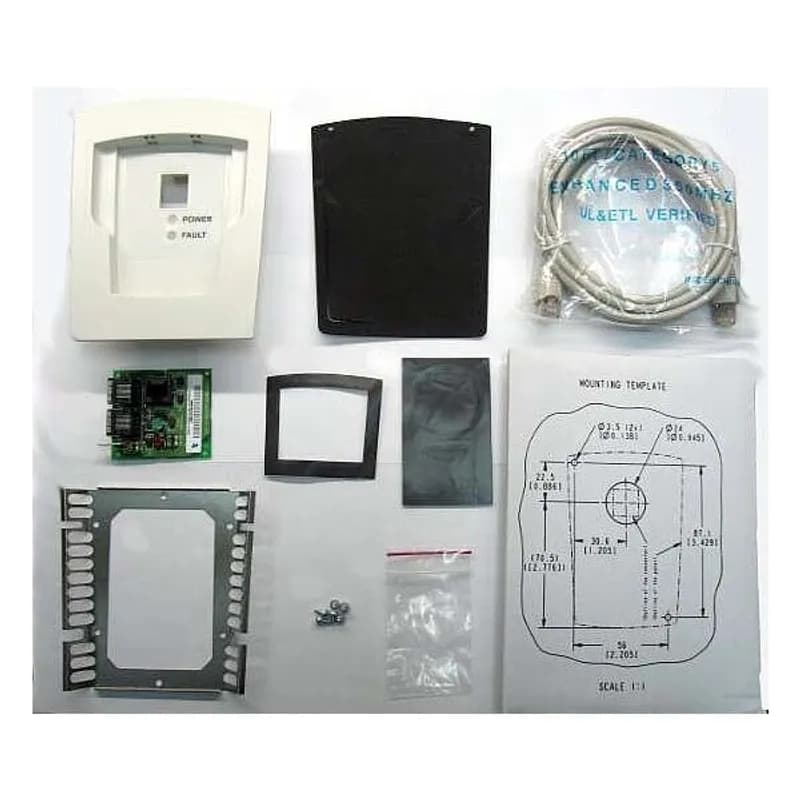

Requires additional mounting platform
Series
DCS500
Double plastic fiber optic, Qty 1, 5 meters long

61059113

Double plastic fiber optic, Qty 1, 5 meters long

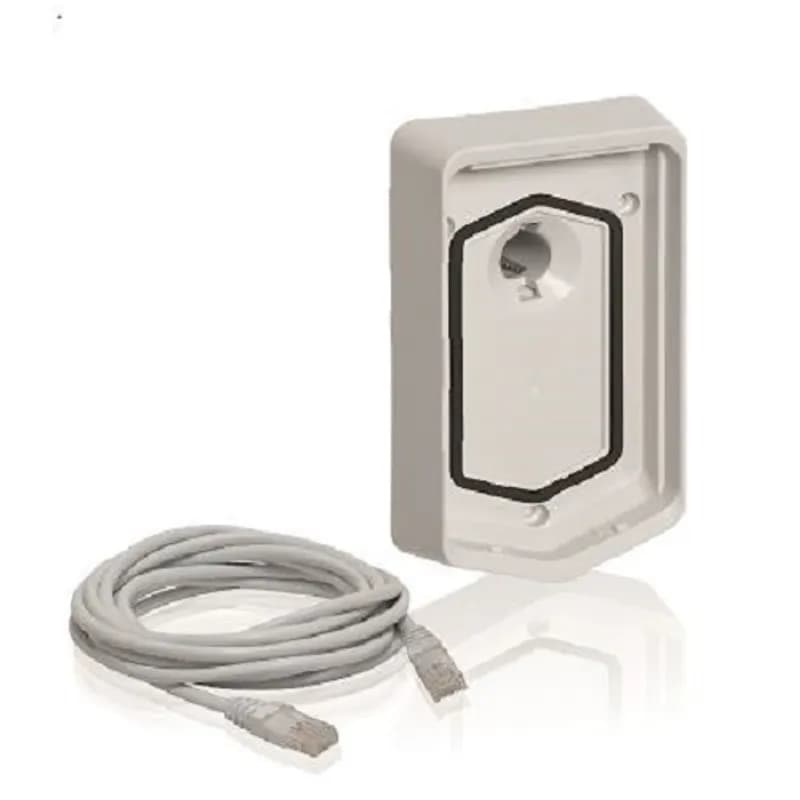

HMI door mounting kit with 2M cable

181B0399

HMI door mounting kit with 2M cable
CONDUIT MODULE B(LSLV-S100),DFR2-S100

64150005

CONDUIT MODULE B(LSLV-S100),DFR2-S100
FAN POWER SUPPLY BOARD CFV1D.400V/48V

CFW11SP-12387920

FAN POWER SUPPLY BOARD CFV1D.400V/48V
Braking Chopper, Nominal AC Line Voltage 200-240V, Minimum 1.09 OHM, RMS Continuous Load Current 115 A

NBBM-V230-A80

Braking Chopper, Nominal AC Line Voltage 200-240V, Minimum 1.09 OHM, RMS Continuous Load Current 115 A
Braking Chopper, Nominal AC Line Voltage 380-480V, Minimum 1.67 OHM, RMS Continuous Load Current 300 A

NBBM-V460-A300

Braking Chopper, Nominal AC Line Voltage 380-480V, Minimum 1.67 OHM, RMS Continuous Load Current 300 A
Braking Chopper, Nominal AC Line Voltage 500-600V, Minimum 2.7 OHM, RMS Continuous Load Current 115 A

NBBM-V600-A80

Braking Chopper, Nominal AC Line Voltage 500-600V, Minimum 2.7 OHM, RMS Continuous Load Current 115 A
ProfiBus is an open serial communication standard that enables data exchange between automation components. The transmission medium of the bus is a twisted pair cable (according to RS-485 standard). The maximum length of the bus cable is 100 to 1200 meters, depending on the transmission rate. Up to 31 stations can be connected to the same ProfiBus system without use of repeaters.

RPBA-01-KIT

ProfiBus is an open serial communication standard that enables data exchange between automation components. The transmission medium of the bus is a twisted pair cable (according to RS-485 standard). The maximum length of the bus cable is 100 to 1200 meters, depending on the transmission rate. Up to 31 stations can be connected to the same ProfiBus system without use of repeaters.
