ABB - Low Voltage Drives DCS800-DSL-4M-Cable - Interface cable for communication between the DCF external field supply and the DCS800 drive and/or between DCS800 drives. The cable supports communication for 12 pulse operation and drive-to-drive communication with the SDCS-DSL-4 board. This cable is 13 feet (4 m) long and has ferrule-tipped wires on both ends.

ABB Low Voltage Drives DCS800-DSL-4M-Cable Interface cable for communication between the DCF external field supply and the DCS800…

Alternate Item Number: 3ADT693554P0004

UPC: 662348069424

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB DCS800-DSL-4M-Cable (SKU: DCS800-DSL-4M-Cable) is a 4-meter (13 ft) interface cable specifically designed for ABB's DCS800 Low Voltage Drives. This cable facilitates essential communication between the DCF external field supply and the DCS800 drive, as well as enabling drive-to-drive communication between multiple DCS800 units. It is engineered to support 12-pulse operation and drive-to-drive communication when utilizing the SDCS-DSL-4 board. Both ends of the cable are equipped with ferrule-tipped wires, ensuring secure and reliable electrical connections for consistent signal integrity in industrial automation and control systems. Manufactured in the US, this cable is built for dependable performance in operational environments. Its specific length of 4 meters provides adequate reach for typical industrial setups, simplifying wiring configurations and installation. This interface cable is a key component for achieving advanced functionality and efficient operation within DCS800 drive systems.
  • 4-meter (13 ft) interface cable length
  • Facilitates communication between DCF and DCS800 drives
  • Enables drive-to-drive communication for DCS800 systems

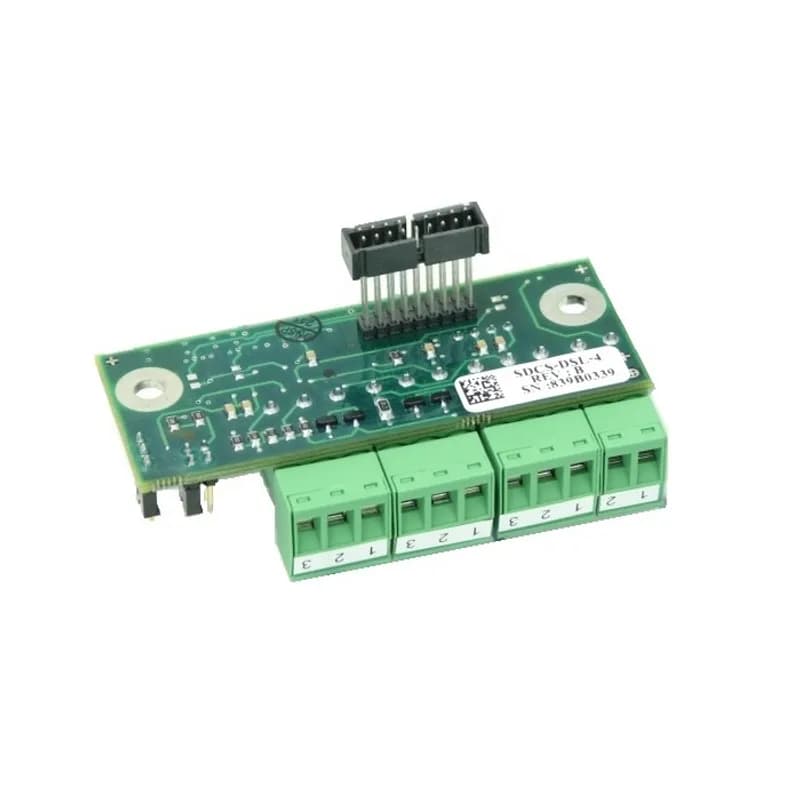

  • Supports 12-pulse operation with SDCS-DSL-4 board
  • Ferrule-tipped wires on both ends for secure connections
