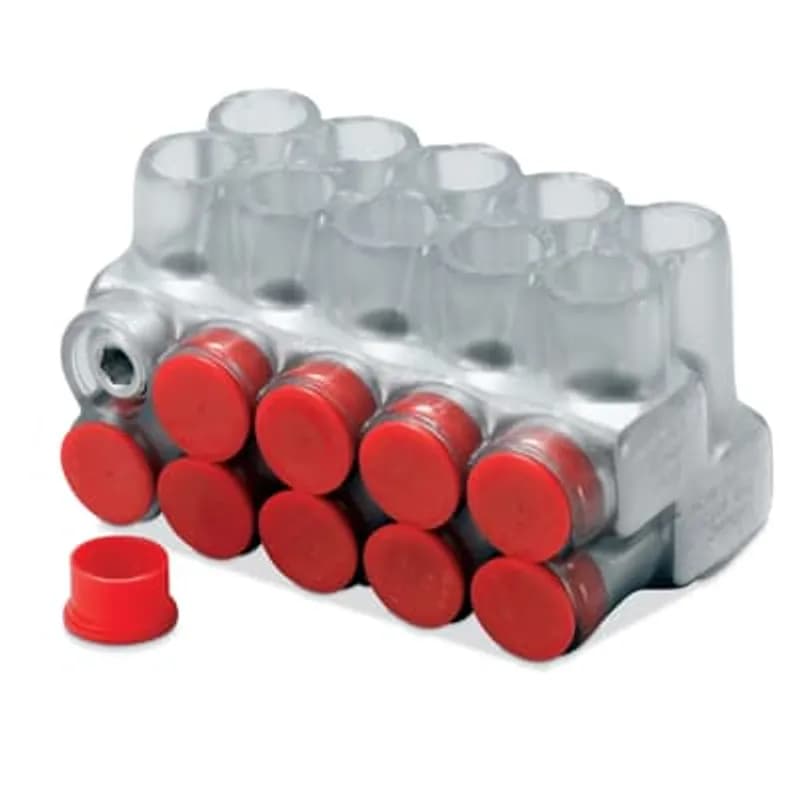

ABB - Installation Products ZVB 4045 - Aluminum Pedestal Connectors, insulated, cable range 6-500, length 4-11/16 inch, outlets 8
ABB - Installation Products

ZVB 4045

UPC: 783786822782

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB ZVB 4045 is an insulated aluminum pedestal connector designed for reliable electrical connections. Manufactured by ABB - Installation Products, this connector is engineered to accommodate a broad cable range from 6 to 500 mm², offering significant flexibility for various power distribution needs. Its robust aluminum construction ensures durability and efficient conductivity in industrial settings. The ZVB 4045 features 8 distinct outlets, allowing for multiple connections from a single point, which is crucial for organized and efficient electrical infrastructure. With a length of 4-11/16 inches, it provides adequate space for secure cable termination and management. This connector is suitable for applications requiring a dependable and insulated junction for power distribution, simplifying complex wiring layouts. The UNSPSC code 39121447 categorizes this product within electrical connectors and accessories, highlighting its specific function in electrical systems. The ZVB 4045 is a practical component for electrical contractors and facility managers seeking to establish secure and insulated connections within their power networks. Its design prioritizes both functionality and safety, making it a valuable addition to any industrial electrical installation.
  • Insulated aluminum pedestal connector for secure electrical connections.
  • Accommodates a wide cable range from 6 to 500 mm².
  • Features 8 outlets for multiple connection points.
  • Durable aluminum construction for industrial environments.
  • Length of 4-11/16 inches for efficient cable management.

Specifications

Insulation
Yes
Material
Aluminum
Mounting
Pedestal
Type
Insulated Pedestal Connector
Wire Size
#6 to 500 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.8300 L
Package Weight (Metric)
0.8300 kg
Aluminum Transformer Connector #6 - 500 kcmil, Aluminum-Copper, Two Hole NEMA, Five Conductor, Streetlight, Length 8-5/16 inch

ABN 5500 SLC

Aluminum Transformer Connector #6 - 500 kcmil, Aluminum-Copper, Two Hole NEMA, Five Conductor, Streetlight, Length 8-5/16 inch
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Copper Two-Hole Lug with Flared-End Barrel, wire size 1000 kcmil Copper. Installing Dies 125, 642. Length 7-1/4 inch. Pad 1-3/4 inch wide x 3-1/4 inch long x 21/64 inch thick. (2) 9/16 inch diameter Holes on 1-3/4 inch centers. Barrel 2-29/32 inch long. Unplated.

L 1000NTB (UNPLATED)

Copper Two-Hole Lug with Flared-End Barrel, wire size 1000 kcmil Copper. Installing Dies 125, 642. Length 7-1/4 inch. Pad 1-3/4 inch wide x 3-1/4 inch long x 21/64 inch thick. (2) 9/16 inch diameter Holes on 1-3/4 inch centers. Barrel 2-29/32 inch long. Unplated.
Tin Plated Copper Compression Lug, 1000 kcmil CU, Installing Dies 125, 642. Length 7-1/4 inch. Pad 1-3/4 inch wide x 3-1/4 inch long x 1/3 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-29/32 inch. Oxide Inhibitor. Brown Cap. Barrel to be Silver Soldered to Prevent Moisture from Entering from Pad.

PL 1000 NTSPC

Tin Plated Copper Compression Lug, 1000 kcmil CU, Installing Dies 125, 642. Length 7-1/4 inch. Pad 1-3/4 inch wide x 3-1/4 inch long x 1/3 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-29/32 inch. Oxide Inhibitor. Brown Cap. Barrel to be Silver Soldered to Prevent Moisture from Entering from Pad.
Aluminum Lug Pulling Eye for 500 kcmil AL-CU Cable, Installing Dies 106, 300, 317, 1 5/16, 15A. Length 6-3/4 Inch with Safety Orange Paint on Barrel. Pad 1-23/32 inch wide x 2-1/2 inch long x 29/64 inch thick. (1) 23/32 inch Diameter hole. Barrel 3-1/2 inch long.

PE 500-68 SOP

Aluminum Lug Pulling Eye for 500 kcmil AL-CU Cable, Installing Dies 106, 300, 317, 1 5/16, 15A. Length 6-3/4 Inch with Safety Orange Paint on Barrel. Pad 1-23/32 inch wide x 2-1/2 inch long x 29/64 inch thick. (1) 23/32 inch Diameter hole. Barrel 3-1/2 inch long.
Tin Plated Copper Compression Lug, 2000 kcmil Stranded CU, Installing Dies 2.00, 34, 175. Length 8-1/16 inch. Pad 3-1/16 inch wide x 3-3/16 inch long x 29/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 3-1/8 inch. Oxide Inhibitor. Orange Cap.

PL 2000 NSPC

Tin Plated Copper Compression Lug, 2000 kcmil Stranded CU, Installing Dies 2.00, 34, 175. Length 8-1/16 inch. Pad 3-1/16 inch wide x 3-3/16 inch long x 29/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 3-1/8 inch. Oxide Inhibitor. Orange Cap.
Copper Compression Lug, 500 kcmil CU, Installing Dies 1, 87, 251, 20. Length 6-1/16 inch. Pad 1-9/16 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-3/16 inch. Not Plated.

PL 500 N

Copper Compression Lug, 500 kcmil CU, Installing Dies 1, 87, 251, 20. Length 6-1/16 inch. Pad 1-9/16 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-3/16 inch. Not Plated.
Tin Plated Copper Compression Lug, 750 kcmil CU, Installing Dies 106, 24, 1 5/16. Length 7 inch. Pad 1-3/4 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-13/16 inch. Oxide Inhibiting Compound, Yellow Cap. Barrel to be Silver Soldered to Prevent Moisture from Entering from Pad.

PL 750 NSPC

Tin Plated Copper Compression Lug, 750 kcmil CU, Installing Dies 106, 24, 1 5/16. Length 7 inch. Pad 1-3/4 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 2-13/16 inch. Oxide Inhibiting Compound, Yellow Cap. Barrel to be Silver Soldered to Prevent Moisture from Entering from Pad.

Frequently Asked Questions

What is the cable range for the ZVB 4045 connector?

The ZVB 4045 connector is designed to accommodate a cable range from 6 to 500 mm².

How many outlets does the ABB ZVB 4045 have?

The ABB ZVB 4045 pedestal connector features 8 outlets.

What is the length of the ZVB 4045 aluminum pedestal connector?

The ZVB 4045 connector has a length of 4-11/16 inches.

What material is the ABB ZVB 4045 connector made from?

The ABB ZVB 4045 is an aluminum pedestal connector.

Is the ZVB 4045 connector insulated?

Yes, the ZVB 4045 is an insulated aluminum pedestal connector.
