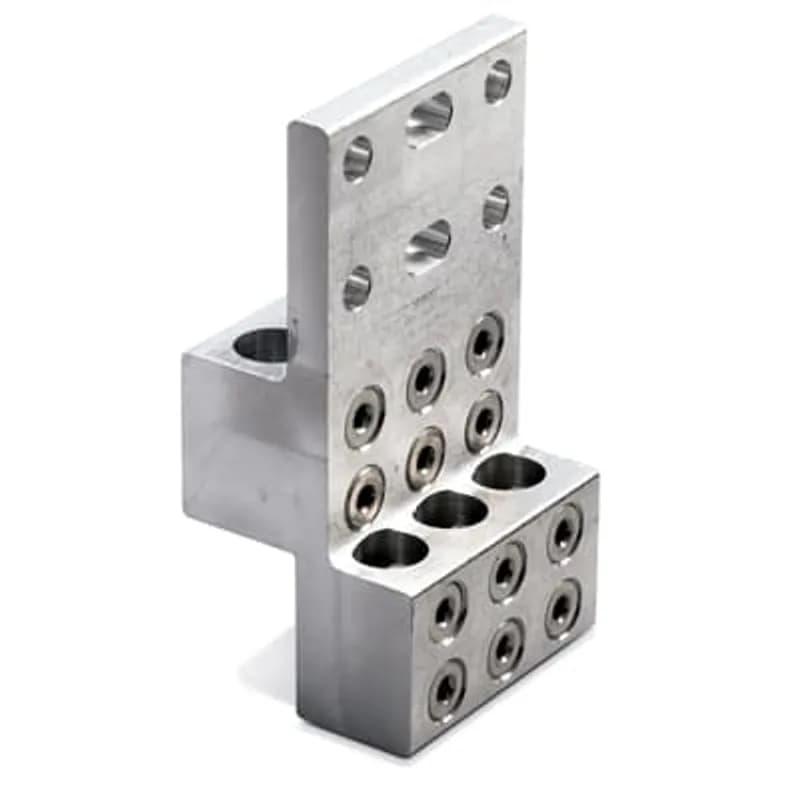

ABB - Installation Products ZBT-2027-DSC - Aluminum Transformer Spade Connector - Cable Range 1/0 AWG - 750 kcmil, Width 3 Inch, Overall Length 8-3/8 inch, Depth 3-5/8 inch, Pad Thickness 5/8 inch, 4 Mounting Holes, 4 Outlets, Double Row Mounting Holes, Two Set-Screws per Outlet. Grease Compound included. 4-Hole Pad with 9/16 inch Diameter holes on 1-3/4 inch Centers. Includes 8 7/8-14 UNF-2B Screws.

ABB Installation Products ZBT-2027-DSC Aluminum Transformer Spade Connector - Cable Range 1/0 AWG - 750 kcmil, Width 3 Inch…

UPC: 075114433082

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ZBT-2027-DSC Aluminum Transformer Spade Connector is engineered for robust electrical connections in transformer applications. This connector accommodates a wide cable range from 1/0 AWG to 750 kcmil, ensuring versatility for various power distribution needs. Its substantial construction features a 3-inch width, an overall length of 8-3/8 inches, and a depth of 3-5/8 inches, with a pad thickness of 5/8 inch for secure mounting. The connector boasts a 4-hole pad design with 9/16 inch diameter holes, spaced on 1-3/4 inch centers, facilitating a double row of mounting holes for enhanced stability. Each of the four outlets is equipped with two set screws, ensuring a firm and reliable connection to the conductor. Included with the ZBT-2027-DSC is a grease compound to aid in installation and prevent corrosion. The package also contains eight 7/8-14 UNF-2B screws for immediate application. This ABB Installation Products component, identified by SKU ZBT-2027-DSC, is designed for critical power infrastructure where dependable connections are paramount. Its aluminum construction offers excellent conductivity and corrosion resistance, making it suitable for demanding electrical environments. The double row mounting hole configuration provides increased surface area for secure fastening, crucial for high-current applications.
  • Accommodates cable range 1/0 AWG - 750 kcmil
  • Durable aluminum construction for conductivity and corrosion resistance
  • 4-hole pad with 9/16" diameter holes on 1-3/4" centers
  • Four outlets, each with two set screws for secure connections
  • Includes grease compound and eight 7/8-14 UNF-2B screws

Specifications

Conductor Range
1/0 AWG, 750 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Special Features
Double Row Mounting Holes
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.3500 L
Package Weight (Metric)
1.9730 kg
