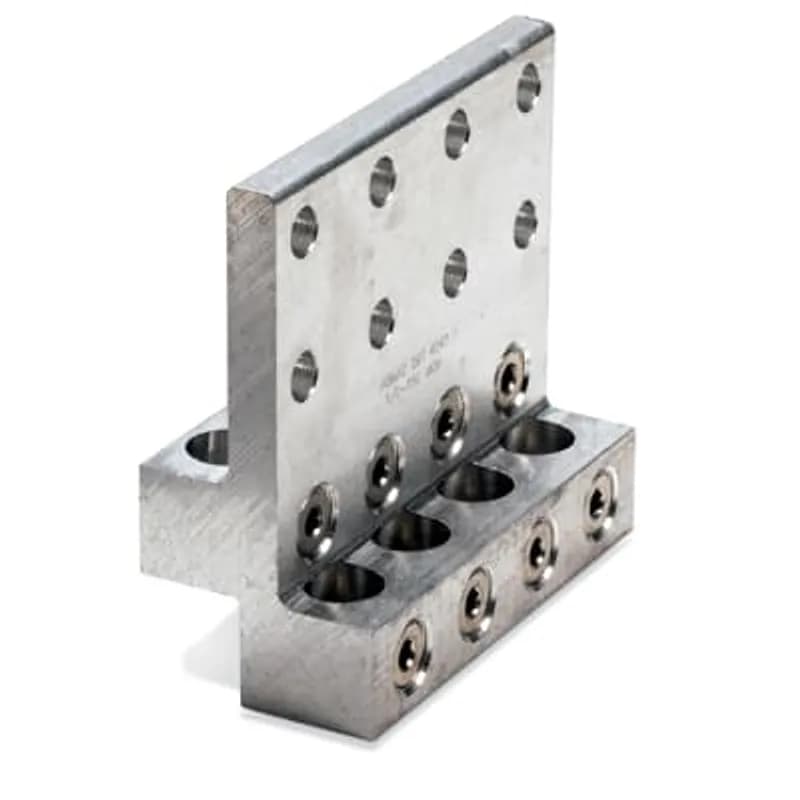

ABB - Installation Products ZBT 2027 - Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable range 1/0-750, mounting holes 4 outlets 4. 6-3/8 inch x 3-1/16 inch x 3 inch

ABB Installation Products ZBT 2027 Aluminum Transformer Spade Connectors - ZBT Series - Double Row Mounting Holes, cable…

UPC: 783786760435


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ZBT 2027 is an aluminum transformer spade connector from ABB's Installation Products division. Designed for reliable electrical connections in transformer applications, this connector accommodates a broad cable range from 1/0 to 750 kcmil. Its robust construction ensures secure termination for power distribution and utility infrastructure. The ZBT 2027 features double row mounting holes, providing four distinct mounting outlets for versatile installation. Key specifications include: * **Manufacturer:** ABB - Installation Products * **SKU:** ZBT 2027 * **Series:** ZBT Series Aluminum Transformer Spade Connectors * **Cable Range:** 1/0 - 750 kcmil * **Mounting Holes:** 4 outlets (double row) * **Dimensions:** 6-3/8 inches (length) x 3-1/16 inches (width) x 3 inches (height) This connector is suitable for applications requiring secure and efficient cable termination onto transformer terminals. Its aluminum construction offers good conductivity and corrosion resistance for long-term performance in electrical systems. The ZBT 2027 is a practical choice for utility, industrial, and commercial power installations where dependable spade connections are essential.
  • ABB ZBT Series Aluminum Transformer Spade Connector
  • Accommodates cable range from 1/0 to 750 kcmil
  • Double row mounting holes with 4 outlets
  • Dimensions: 6-3/8" L x 3-1/16" W x 3" H
  • Ideal for transformer terminations and power distribution

Specifications

Application
Transformer Connector
Conductor Range
1/0 to 750 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Mounting Type
Double Row Mounting Holes
Number of Conductors
4
Series
ZBT Series
Size
3 Inch
Size
6-3/8 inch x 3-1/16 inch x 3 inch
Special Features
Compact Zeebar design halves cantilever stress and doubles cable capacity. Dual Rated to accept Copper or Aluminum conductors. High strength Alluminum alloy maximizes electrical and mechanical performance. Ball-Bottom screws ensure maximun conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
