ZAB202M

SuperMag magnetic fittings are designed for new industrial and commercial construction, industrial maintenance and repair operations, and commercial building retrofits. They help secure fittings to strut during assembly by using embedded neodymium magnets.

No, the magnets are only intended as an installer aid. Magnetic fittings must be bolted in place following standard installation procedures for permanent installation.

The magnetic fittings act as a third hand, allowing installers to work more efficiently and safely by eliminating the need to manually hold fittings and strut together while installing bolts, nuts, and rods.

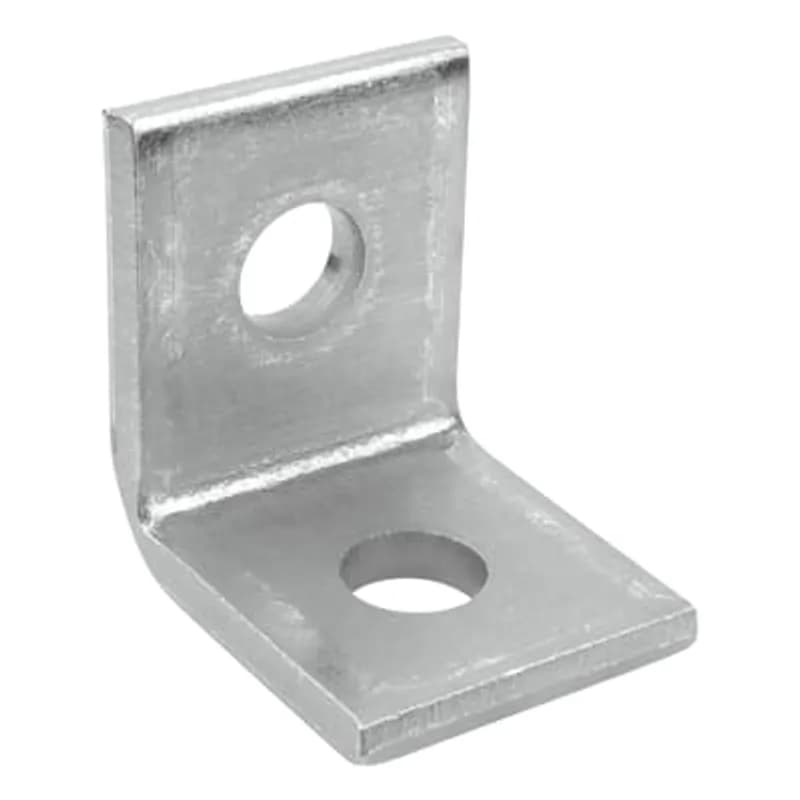

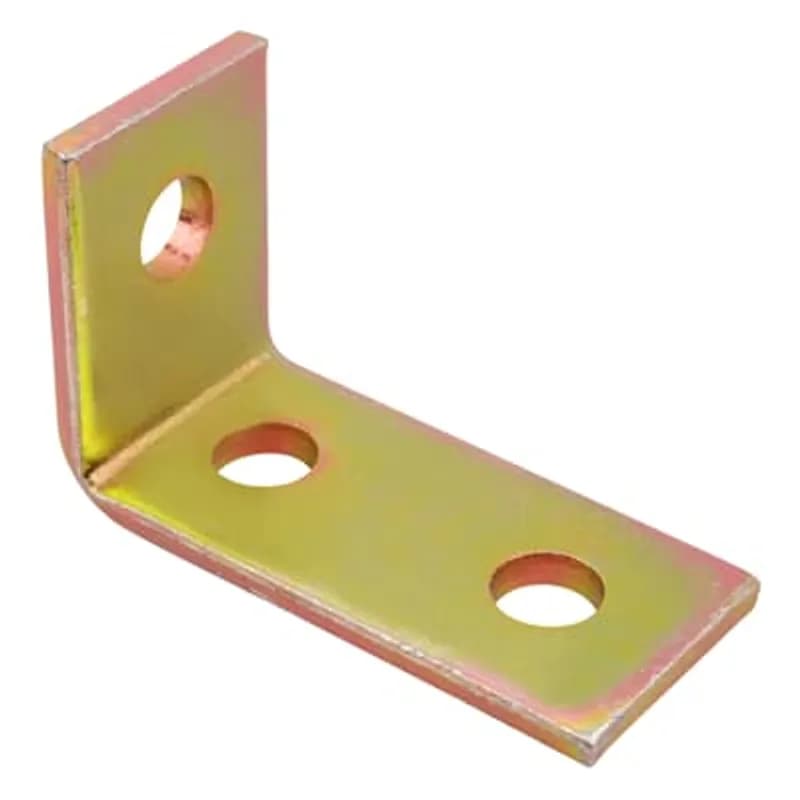

Available magnetic fittings include 90° angle fittings (2-hole and 4-hole), flat L-brackets, flat T-brackets, and square washers for 1/4", 3/8", and 1/2" bolts.

The magnetic fittings are available in two finishes: GoldGalv (standard) and SilverGalv. To order SilverGalv, customers should specify the suffix EG.

The fittings feature neodymium (NdFeB) grade N35 nickel-plated magnets. These magnets are staked in place for dual-sided use and can support at least 2x their own weight.
