ABB - Installation Products Z4045USLRC/EZ5912-7R - Zeebar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud 5/8 inch and 1 inch, Eight Connector, Length 5-1/8 inch, Height 2-7/8 inch, with Oxide Inhibitor, Option R - Right Hand Feed with EZ 5912-7 Clear PVC Insulating Boot
ABB - Installation Products

Z4045USLRC/EZ5912-7R

UPC: 783786762262

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

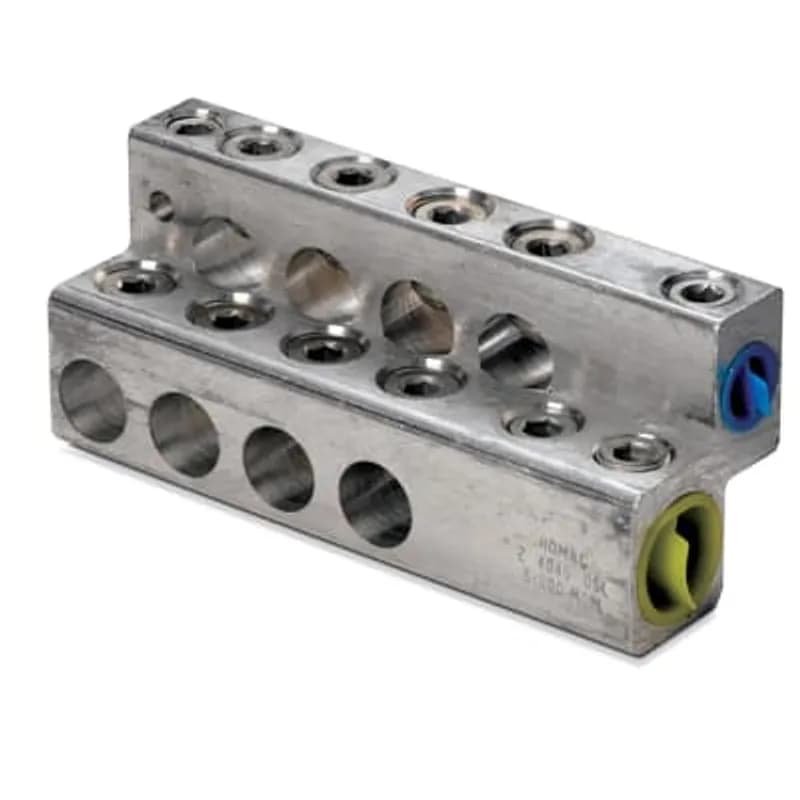

The ABB Zeebar Aluminum Transformer Connector (SKU: Z4045USLRC/EZ5912-7R) is a high-conductivity aluminum connector designed for transformer installations requiring aluminum-to-copper transitions. This 8-conductor unit accommodates wire sizes from #6 AWG to 500 kcmil, making it suitable for medium to high-current applications. The connector features dual stud sizes (5/8 inch and 1 inch) for compatibility with standard transformer bushings and termination hardware. The connector includes an integrated oxide inhibitor to prevent galvanic corrosion when joining aluminum and copper conductors, ensuring long-term electrical integrity. The right-hand feed configuration simplifies installation in tight transformer compartments, while the EZ 5912-7 clear PVC insulating boot provides dielectric protection and strain relief for the conductors. Measuring 5-1/8 inches in length and 2-7/8 inches in height, this connector is optimized for space-constrained installations without sacrificing current-carrying capacity. It meets industry standards for transformer connections and is manufactured by ABB Installation Products, a leader in electrical connection solutions. Ideal for utility substations, commercial transformers, and industrial power distribution systems where reliable aluminum-to-copper transitions are required.
  • Connects #6 AWG to 500 kcmil aluminum and copper conductors
  • Dual stud sizes: 5/8" and 1" for transformer bushing compatibility
  • Oxide inhibitor prevents galvanic corrosion at aluminum-copper junctions
  • Right-hand feed configuration with EZ 5912-7 clear PVC insulating boot
  • Dimensions: 5-1/8" length x 2-7/8" height, optimized for compact installations

Specifications

Application
Compact Secondary Transformer Connector with a Street Light Outlet
Conductor Range
#6 to 500 kcmil
Connection
Mechanical
Height
2-7/8 in
Insulation
True
Material
Aluminum and Copper
Material
Aluminum
Number of Conductors
8
Poles
8
Series
Zeebar
Size
6-13/16 inch long x 2-7/8 inch high
Size
#6 - 500 kcmil, length 5-1/8 inch, height 2-7/8 inch
Special Features
Compact Zeebar design halves cantilever stress and doubles cable capacity. Easy to install with all screws on top. A 5/16 inch hex wrench does it all - including the street light option. Fits both 5/8 and 1 inch studs. Dual Rated to accept Copper or Aluminum Conductors. Ball-Bottom screws ensure maximum conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Stud-Mount Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.7700 L
Package Weight (Metric)
0.8030 kg
