ABB - Installation Products XD9-TB - 3-1/2 Inch XD Cast Iron Expansion/Deflection Coupling with Electro Zinc Plating
More images

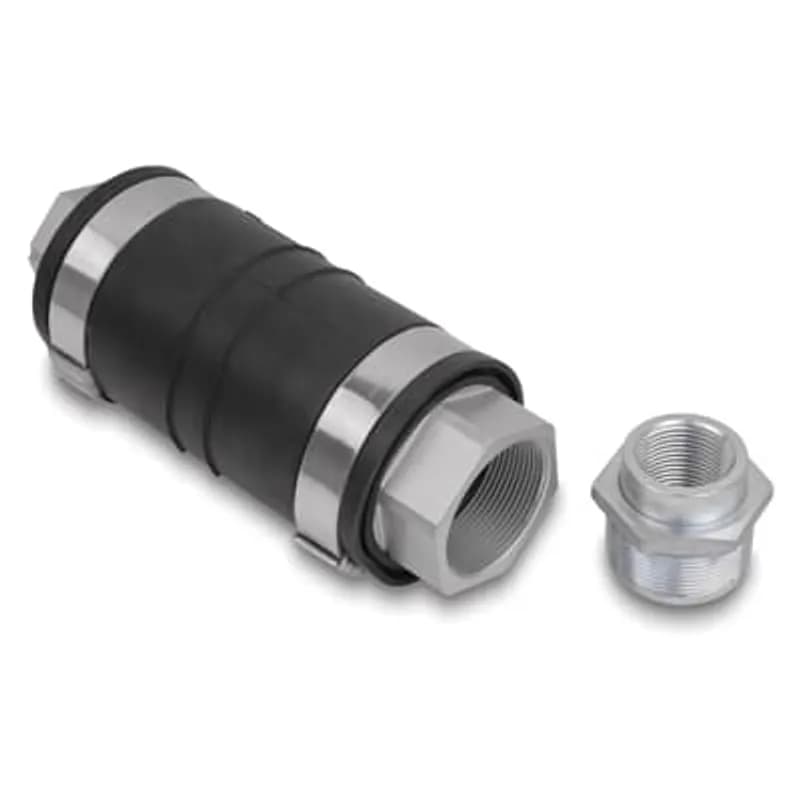

ABB Installation Products XD9-TB 3-1/2 Inch XD Cast Iron Expansion/Deflection Coupling with Electro Zinc Plating

UPC: 786209894199


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB XD9-TB (SKU: XD9-TB) is a 3-1/2 inch expansion and deflection coupling constructed from durable cast iron. This coupling features an electro-zinc plating for enhanced corrosion resistance, making it suitable for industrial environments. Designed by ABB - Installation Products, this component is engineered to accommodate movement within conduit systems, preventing stress on connections and ensuring the integrity of electrical pathways. Its robust cast iron construction provides a strong and reliable solution for managing expansion and deflection, crucial in applications where thermal changes or structural vibrations are present. The 3-1/2 inch size is specifically suited for larger conduit runs. This coupling is an essential part of maintaining the longevity and safety of electrical installations by absorbing mechanical stress. Its electro-zinc plating offers a protective barrier against environmental factors, contributing to a longer service life. ABB's commitment to quality in their Installation Products division ensures that the XD9-TB meets stringent performance requirements for industrial use. This coupling is vital for applications requiring flexibility and resilience in conduit systems, safeguarding electrical infrastructure from damage caused by movement and expansion.
  • 3-1/2 Inch Size for larger conduit applications
  • Durable Cast Iron Construction for robust performance
  • Electro Zinc Plating for enhanced corrosion resistance
  • Accommodates expansion and deflection in conduit systems
  • Manufactured by ABB - Installation Products

Specifications

Application
Bridges, Tunnels, Inter-Building Walkways, Docks and Piers and Wastewater and Water Treatment Facilities
Material Quality
Ductile Cast Iron
Special Features
Accommodates Axial Expansion/contraction Up to 3/4 Inch, Parallel Deflection Up to 3/4 Inch and Angular Misalignment Up to 30 Degree
Standard
CSA, UL E23018
Trade Size
3-1/2 in
Type
XD Expansion/Deflection Couplings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
25.9700 L
Package Weight (Metric)
11.7800 kg
PVC Coated Expansion/Deflection Coupling, Hub Size 3-1/2 Inch/91 Metric, Dimensions A: 7-3/4 Inch B: 6-1/2 Inch, Gray

XD9-G

PVC Coated Expansion/Deflection Coupling, Hub Size 3-1/2 Inch/91 Metric, Dimensions A: 7-3/4 Inch B: 6-1/2 Inch, Gray
Threaded Reducer with Dura Plate Finish, 1/2 Inch Male Thread and 3/8 Inch Female Thread

040-600

Threaded Reducer with Dura Plate Finish, 1/2 Inch Male Thread and 3/8 Inch Female Thread
5 Inch Split Coupling, Malleable Iron Zinc Plated with Neoprene Gasket

SPCP500

5 Inch Split Coupling, Malleable Iron Zinc Plated with Neoprene Gasket
1/2 Inch Aluminum, Grounding Hub with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H050GRA-TB

1/2 Inch Aluminum, Grounding Hub with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
3/4 Inch Zinc Capoff with Chrome Plating, Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H075CAPCP

3/4 Inch Zinc Capoff with Chrome Plating, Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
1 Inch Aluminum, Capoff with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H100CAPA

1 Inch Aluminum, Capoff with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
1-1/4 Inch Aluminum, Bulkhead Fittings with Insulating Throat Thermoplastic, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H125BHDA

1-1/4 Inch Aluminum, Bulkhead Fittings with Insulating Throat Thermoplastic, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
1-1/4 Inch Zinc Capoff with Chrome Plating, Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H125CAPCP

1-1/4 Inch Zinc Capoff with Chrome Plating, Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

Frequently Asked Questions

What type of product is the XD9-TB?

The XD9-TB is an XD Expansion/Deflection Coupling.

What is the outer jacket of the XD9-TB made of?

The outer jacket is molded neoprene in natural black.

What is the suitable operating temperature range for the XD9-TB?

The XD9-TB is suitable for temperatures between -35 degrees C to 93 degrees C (-30 degrees F to 200 degrees F).

What type of union does the XD9-TB have?

The XD9-TB features an integral two-piece union.

How is grounding handled for the XD9-TB?

Grounding is provided by a flexible internal bonding jumper.

Does the XD9-TB coupling include straps?

The XD9-TB includes two tamperproof stainless steel straps.

What is the finish on the XD9-TB hub?

The hub finish is zinc plate and painted with aluminum acrylic paint.

What material is the hub of the XD9-TB made from?

The hub material for the XD9-TB is ductile cast iron.

What is the trade size of the XD9-TB coupling?

The trade size for the XD9-TB is 3-1/2 inches.

What are the dimensions of the XD9-TB coupling?

The dimensions are: A=10-9/16 in, B=9-3/4 in, C=7-3/4 in, and D=6-5/8 in.

How to Install XD Expansion/Deflection Couplings

This guide provides step-by-step instructions for installing XD Expansion/Deflection couplings, which protect conduit wiring systems from damage due to movement. It covers the procedure for connecting two sections of conduit when one or both cannot be turned.

Estimated time: 30m

Tools needed:

Pipe wrench, Wrench, Ohmmeter or suitable testing equipment

Supplies needed:

Electrically conductive compound (e.g., Kopr-Shield®)

  1. Review Safety Precautions and Prepare

    Ensure all NEC and local codes are followed by a qualified installer. Never perform installation on an energized line. If installing in wet locations, apply a thin coat of electrically conductive compound (e.g., Kopr-Shield®) on the first three internal NPT threads of the coupling to enhance conductivity and protect mating surfaces.

  2. Secure the Stationary Coupling End

    Wrench-tighten the Union Nut (A). Thread the NPT Stationary Coupling End (E) onto Conduit (#1). Finish tightening this connection with a pipe wrench until it is wrench-tight. Do not use the Union Coupling End (F) for tightening, as this could damage the grounding strip.

  3. Connect the Second Conduit

    While holding the Union Coupling End (F) firmly, thread Conduit (#2) into the NPT Union Coupling (B). Finish tightening this connection with a pipe wrench until it is wrench-tight. Avoid twisting the entire unit during installation to prevent damage to the grounding strap.

  4. Verify Ground Continuity

    Before energizing the system, verify that ground continuity has been established using an Ohmmeter or other suitable testing equipment. Failure to properly ground the connection will create an electrical shock hazard which can cause serious injury or death.
