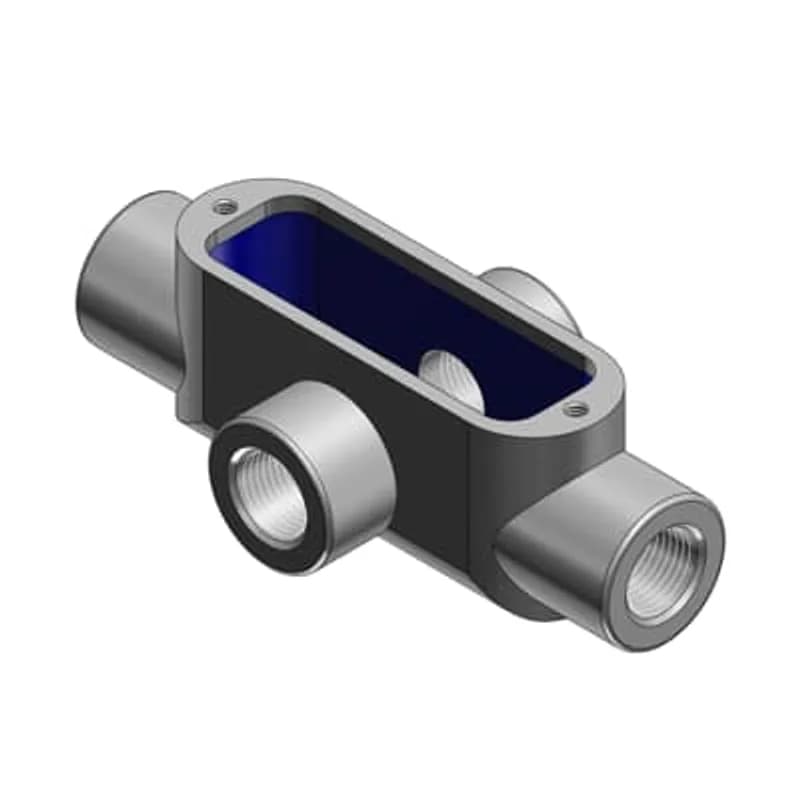

ABB - Installation Products X50M - Series 35 1/2 Inch Conduit Body, Body Material Malleable Iron, Finish Zinc Plating with an Aluminum, Acrylic Coating for Use with Rigid/IMC Conduit
ABB - Installation Products

X50M

UPC: 786210960920

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB Series 35 1/2" Rigid X Conduit Body (SKU: X50M) is a heavy-duty electrical conduit fitting engineered for use with Rigid and Intermediate Metal Conduit (IMC). Constructed from durable malleable iron, this conduit body provides a robust housing for electrical conduit connections, ensuring long-term reliability in industrial and commercial applications. The body features a protective finish combining zinc plating with an aluminum acrylic coating, delivering dual-layer corrosion resistance against environmental factors such as moisture, chemicals, and abrasion. This finish enhances durability and extends service life in demanding installations, including outdoor, underground, or corrosive environments. Designed for 1/2" conduit, the Series 35 X conduit body facilitates changes in direction and provides essential access points for wire pulling and maintenance without disrupting the conduit run. The two-screw cover style ensures secure closure and easy access, while the rigid X design accommodates standard Rigid and IMC conduit systems. Its construction from malleable iron ensures mechanical strength and resistance to impact, making it suitable for applications where durability is critical. The Series 35 X conduit body is a practical solution for managing conduit runs in industrial facilities, commercial buildings, and infrastructure projects where reliable wire access and protection are essential.
  • 1/2" size for standard Rigid and IMC conduit systems
  • Malleable iron construction for high mechanical strength and impact resistance
  • Zinc plating with aluminum acrylic coating for superior corrosion protection
  • Two-screw cover style for secure closure and easy access
  • Dimensions: 5-7/16" (A) x 1-3/4" (B) x 2-13/16" (C)

Specifications

Application
To Connect Conduit Sections
Finish
Zinc Plating with Aluminum Acrylic Coating
Hub Size
1/2
Material Quality
Malleable Iron
Material Quality
Other
Special Features
Zinc-Plated Iron Construction with Aluminum Acrylic Coating Provides Durability, Impact Resistance and Corrosion Resistance
Standard
UL E2969, CSA
Type
Series 35 Conduit Body
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1300 L
Package Weight (Metric)
0.5130 kg
