Authorized ABB Distributor (Installation Products)

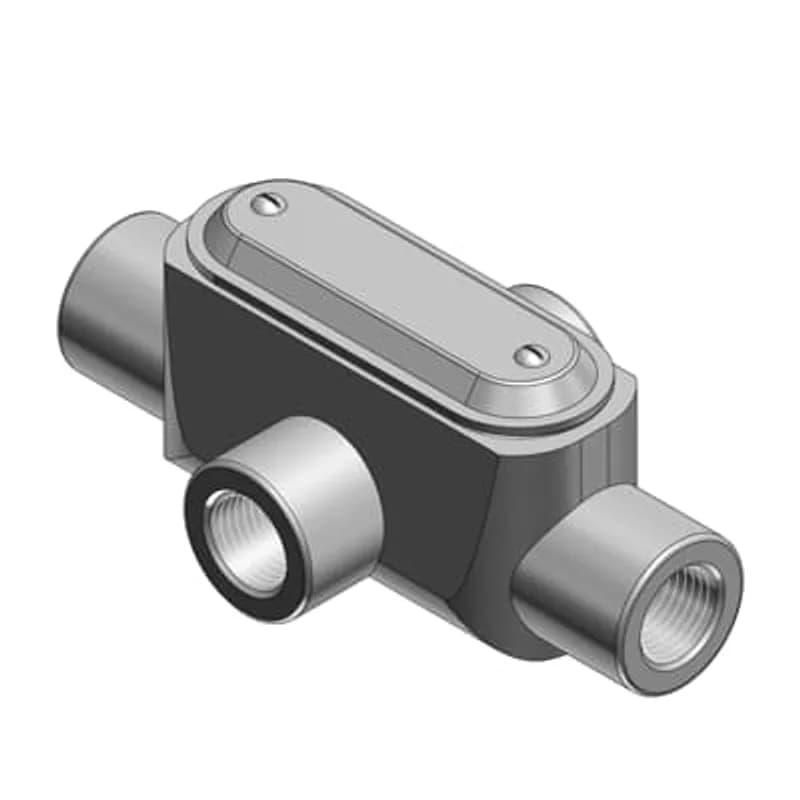

ABB - Installation Products X37CG-TB - 1 Inch BlueKote Form 7 (X) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating with Neoprene Gasket

ABB Installation Products X37CG-TB 1 Inch BlueKote Form 7 (X) Pre-Assembled Conduit Body, Cover and Gasket, Body Material…

UPC: 786210917061


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products X37CG-TB 1 Inch BlueKote Form 7 Pre-Assembled Conduit Body delivers corrosion-resistant protection for industrial electrical installations. The conduit body features a gray iron body with zinc plating and a baked-on epoxy powder coat, providing a durable external finish. Internally, the BlueKote coating enhances resistance to moisture, chemicals, and abrasion, ensuring long-term performance in harsh environments. The stamped steel cover is zinc-plated with a neoprene gasket, ensuring a tight seal against dust and water ingress. This pre-assembled unit includes the body, cover, and gasket, reducing installation time and eliminating the need for separate component sourcing. Designed for use with rigid metal conduit systems, the X37CG-TB is ideal for commercial, industrial, and utility applications where reliable electrical distribution and protection are critical. Compatible with standard 1-inch conduit fittings, this conduit body meets industry standards for electrical safety and durability. The UNSPSC code 39131708 classifies this product under electrical fittings, ensuring proper categorization for procurement and inventory management.
  • 1 Inch conduit body with gray iron body and zinc plating
  • BlueKote internal coating for enhanced corrosion and abrasion resistance
  • Baked-on epoxy powder coat for durable external protection
  • Stamped steel cover with zinc plating and neoprene gasket
  • Pre-assembled with body, cover, and gasket for faster installation

Specifications

Application
Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors
Color
Blue
Finish
Zinc Plated with Epoxy Powder Coat
Form
Form 7
Hub Size
1
Material
Gray Iron with Zinc Plating, Stamped Steel with Zinc Plating
Material Quality
Gray Iron
Series
BlueKote Form 7 (X)
Size
1 Inch
Special Features
BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires
Standard
UL E2969, CSA
Type
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.6300 L
Package Weight (Metric)
1.6470 kg
