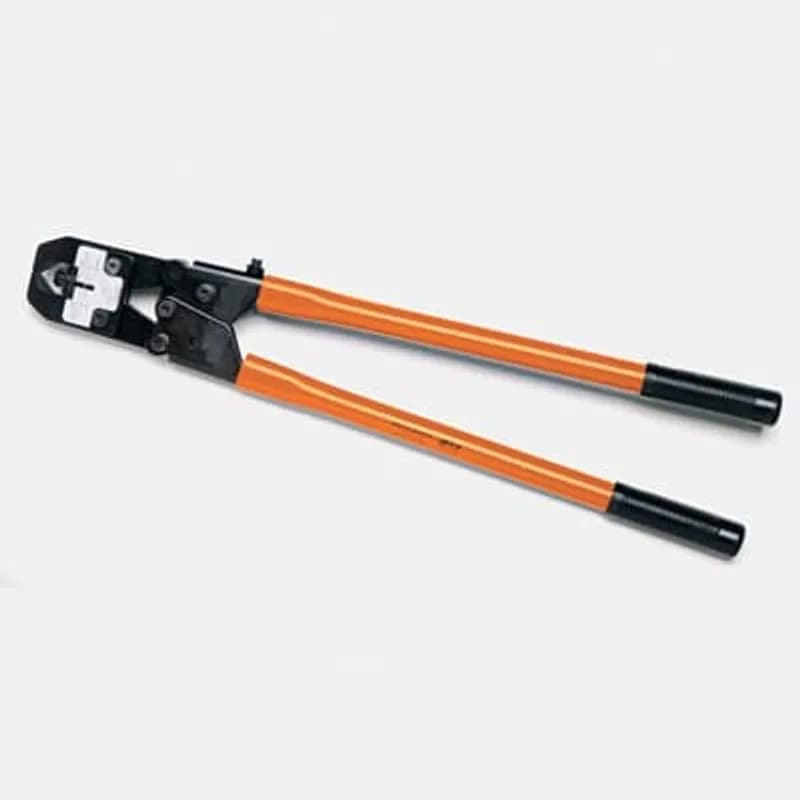

ABB Installation Products WT3185 Heavy Duty Hand Tool for Crimping D-M Non-insulated Terminals
UPC: 786210305998
Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Designed for crimping non-insulated D-M terminals
- Manual operation for direct control and precision
- Part of ABB Installation Products line
- Suitable for industrial and commercial wiring applications
- UNSPSC code 27111518
Specifications
Application | Crimping Terminals/Splices/Disconnects |
Handle Type | Palm Grip |
Special Features | Adjustable Indent Style Crimp, No Dies Required, Shure-Stake Ratchet |
Type | Manual Crimp Tool |
Wire Size | 250 kcmil-8 AWG |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.0000 L |
Package Weight (Metric) | 2.7220 kg |
WT440
Crimp Tool for Shield-kon Non-insulated Outer Sleeve GSC Connectors Up To .348 I.D. And Insulated Outer Sleeve GSR Connectors Up To .297 I.D., Length 8 inches, weight without dies 1 pound.Frequently Asked Questions
Where can I find gauging information for the tools?
For gauging information, customers should contact Tool Services.
What wire gauge range do Sta-Kon® tools support?
The tools install self-insulated and non-insulated Sta-Kon® terminal series in the 22-10 AWG wire range.
How do the crimping tools ensure proper compression?
The Shure-Stake mechanism prevents the handles from opening until the full staking action is completed, ensuring correct compression every time.
Where can I find gauging information for the tools?
For gauging information, customers should contact Tool Services.
What wire gauge range do Sta-Kon® tools support?
The tools install self-insulated and non-insulated Sta-Kon® terminal series in the 22-10 AWG wire range.
How do the crimping tools ensure proper compression?
The Shure-Stake mechanism prevents the handles from opening until the full staking action is completed, ensuring correct compression every time.
Where can I find gauging information for the tools?
For gauging information, customers should contact Tool Services.
What wire gauge range do Sta-Kon® tools support?
The tools install self-insulated and non-insulated Sta-Kon® terminal series in the 22-10 AWG wire range.
How do the crimping tools ensure proper compression?
The Shure-Stake mechanism prevents the handles from opening until the full staking action is completed, ensuring correct compression every time.
What wire gauge range do Sta-Kon® tools support?
The tools install self-insulated and non-insulated Sta-Kon® terminal series in the 22-10 AWG wire range.
How to Crimp Uninsulated STA-KON® Terminals with WT3185 Crimper
This guide provides step-by-step instructions for safely and effectively crimping uninsulated STA-KON® terminals onto electrical cables using the WT3185 adjustable crimper, including initial tool setup and verification procedures.
Estimated time: 30m
Tools needed:
WT3185 Adjustable Crimper, Wire strippers, Pin gauge, Measuring tape or ruler
Supplies needed:
Uninsulated STA-KON® Terminals, Electrical cable (8 GA to 250 MCM)
- Observe Safety Warnings
WARNING: HANDLES ARE NON-INSULATING. DO NOT CRIMP ON ENERGIZED WIRES. Always ensure the wires are de-energized before beginning any crimping operation. Keep fingers and other body parts clear of the die nest during operation of the tool to prevent injury from the SHURE-STAKE® Full Stroke Compelling Mechanism.
- Check Handle Adjustment
Lay the WT3185 crimper on a flat surface. Open the handles fully and then release them, allowing the tool to close under its own weight. Measure the handle spread distance at the inner surface of the handle tips. The tool is properly adjusted if this distance is 14 inches ± 1/2 inch.
- Adjust Handle Spread (if necessary)
If the handle spread is not within the specified range (14 inches ± 1/2 inch), adjust it. Turn the adjustment screw clockwise to increase the handle spread or counterclockwise to decrease it until the correct measurement is achieved.
- Prepare the Cable
Strip the insulation from the end of the electrical cable. Ensure that the cable strands are not cut or nicked during the stripping process. The length of the stripped portion should match the barrel length of the terminal you intend to crimp.
- Select Tool Side and Adjust Indenter
Identify the correct side of the crimper tool based on the type of connector and the cable gauge you are using. Turn the adjusting wheel until the pointer slot aligns with the selected cable size line. Ensure the wheel is in a positive detented position for accurate crimping.
- Insert Cable into Connector
Take the uninsulated STA-KON® terminal and insert the stripped end of the cable fully into the connector barrel until it bottoms out. Ensure all cable strands are contained within the terminal barrel.
- Position Connector in Crimper
Carefully place the connector into the crimper tool, positioning it between the die nest and the indenter. Ensure the connector is seated properly and securely within the tool's crimping area.
- Crimp the Connector
Close the handles of the WT3185 crimper firmly to apply the crimp. Refer to the specific instructions provided with your STA-KON® connectors for the required number of crimps to ensure a secure and reliable connection. Apply as many crimps as specified.
- Perform Gauging Procedure (Maintenance)
For tool maintenance and verification, close the tool jaws until they bottom. Select the appropriate side of the tool (Tubular or Brazed) and move the indenter until the pointer slot aligns with the selected cable size (e.g., 6 GA for brazed, 2/0 for tubular). Gauge the crimping area with a suitable pin gauge. The gauge diameter must fall within .405 ±.010 for 2/0 tubular and .215 ±.010 for 6 GA brazed products.
