UPC: 783786103690
Documents & Media
Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*
Overview
- Compatible with ACSR conductors: Main (795-477 kcmil, 26/7-30/7 strand), Tap (556-300 kcmil, 18/1-600-336 strand)
- Rated for 900-600 kcmil main conductors and 600-336 kcmil tap conductors
- 4-3/4 inch length with wide-range H-type compression design
- Compatible with R or Z die sets for standardized tooling
- Manufactured by ABB Installation Products for utility and industrial applications
Specifications
Application | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
Connection | Compression |
Environmental Conditions | All Seasons / Conditions |
Housing Material | Aluminum |
Housing Material | Aluminium |
Insulation | None |
Mounting | None |
Number Of Conductors | 2 |
Size | Length 4-3/4 inch |
Special Features | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area |
Standard | RUS Accepted. Complies with ANSI C119.4 Specifications |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |

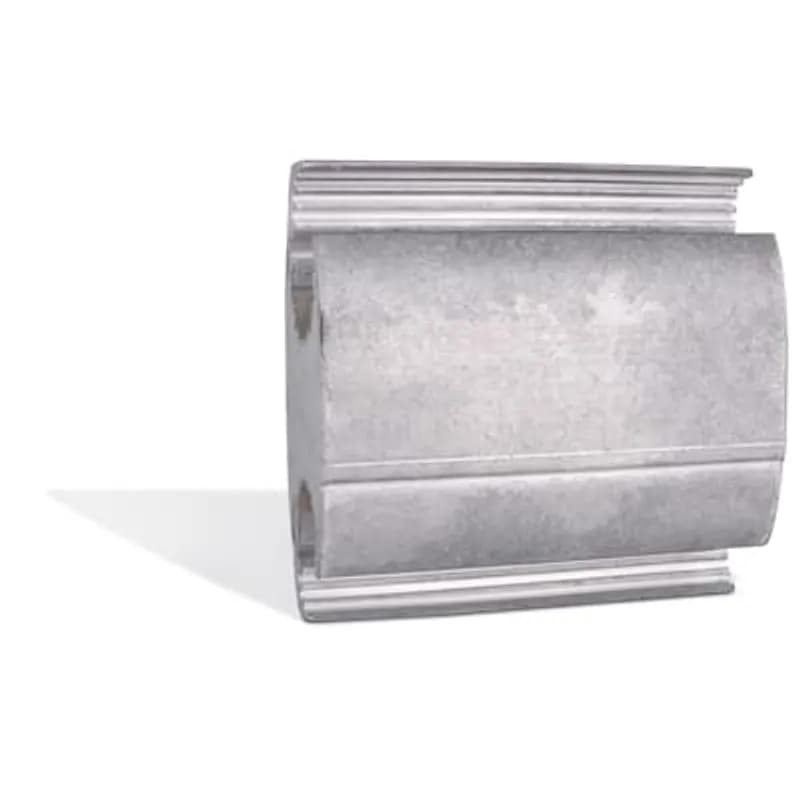

Type | H-Type Compression Tap Connector |
Wire Size | Main: 795 (26/7) to 477 (30/7) ACSR or 900 to 600 STR kcmil , Tap: 556 (18/1) to 300 ACSR or 600 to 336 STR kcmil |
Package Dimensions (L x W x H) | 5.3 IN x 2.09 IN x 4.9 IN |
Package Dimensions (L x W x H) | 13.462 cm x 5.3086 cm x 12.446 cm |
Package Weight (Imperial) | 1.6400 L |
Package Weight (Metric) | 0.7440 kg |
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
WR989
Aluminum Wide Range H-Type Compression Connector Main: 900 - 600 MCM Str., Tap: 900 - 600 MCM Str., Die: R OR Z. 4-3/4 inchWR999
Aluminum Wide Range H-Type Compression Connector Main: 954 45/7 - 666 ACSR, 1033 - 750 Str., Tap: 954 45/7 - 666 ACSR, 1033 - 750 Str. 4-3/4 inch
CF22-1
Copper H-Type Compression Connector. Wire Range: #6 to #2 Solid Copper or #6 Stranded Copper. Installing Dies: K, W - KK, BKT, B.CF44-1
Copper H-Type Compression Connector Main: 6 TR. 4, 6 Solid Copper, Tap: 8, 4, 6 Solid Copper, Tap: 6 Stranded CopperCF1010-1
Copper H-Type Compression Connector Main: 1/0, 1, 2 Stranded Copper, Tap: 1/0, 1, 2 Stranded CopperFrequently Asked Questions
What industry specifications does WR969 comply with?
The WR969 connector complies with ANSI C119.4 specifications and is RUS Accepted.
Does the WR969 connector come with an oxide inhibitor?
Yes, the WR969 connector is prefilled with an oxide inhibitor held captive in the rib/connection area.
Are special tools required to install WR969 connectors?
No, WR969 connectors can be installed using standard compression tools and dies, requiring no special tools.
What is the tap conductor diameter range for WR969?
The tap conductor diameter for WR969 ranges from 0.666 inches minimum to 0.893 inches maximum.
What is the main conductor diameter range for WR969?
The main conductor diameter for WR969 ranges from 0.883 inches minimum to 1.108 inches maximum.
What is the length of the WR969 connector?
The WR969 connector has a length of 43⁄4 inches.
How many indents are needed for mechanical tool installation?
When using a mechanical tool, WR969 connectors require four indents for proper installation.
What tools are compatible with WR969 tap connectors?
WR969 tap connectors are compatible with Blackburn JB60A, JB60B, Y60, 60A, and PH-3 tools.
What material is the WR969 connector made from?
The WR969 connector is made of 1350 aluminum alloy, providing high strength and conductivity.
What material is the WR969 connector made from?
The WR969 connector is made of 1350 aluminum alloy, providing high strength and conductivity.
