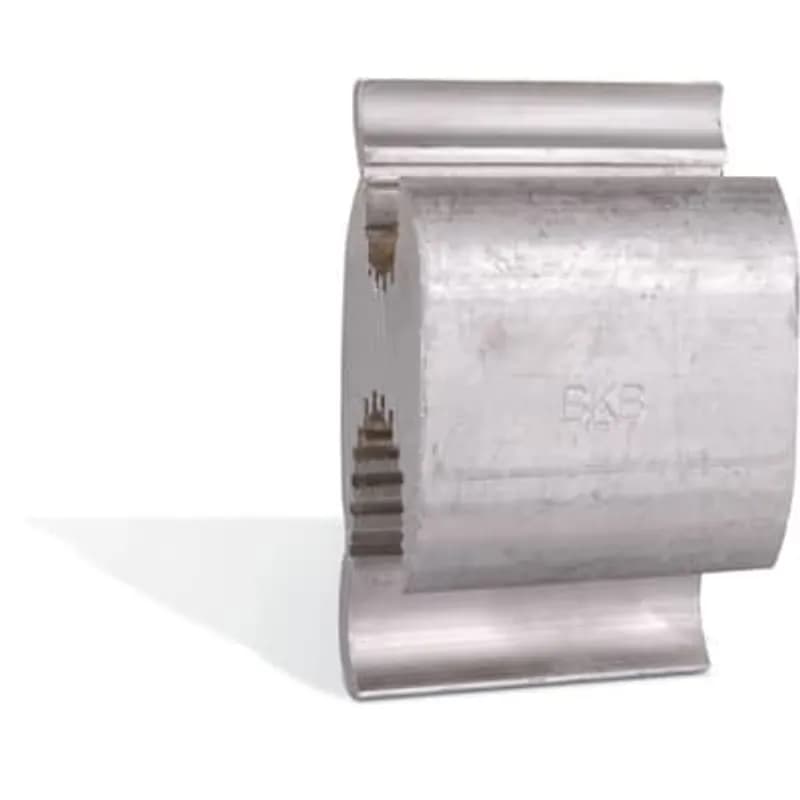

ABB - Installation Products WR835 - Aluminum Wide Range H-Type Compression Connector Main: 477 18/0-4/0 ACSR, 556-250 Str., Tap: 4/0-1/0 ACSR, 4/0-1/0 Str., 4/0-2/0 Sol. 2 inch.
More images
ABB - Installation Products

WR835

UPC: 783786100231

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 80

Multiplier: 80

*Contact for lower quantities*

Overview

The ABB WR835 (SKU: WR835) is a robust H-type compression connector designed for reliable electrical connections in industrial applications. Manufactured by ABB - Installation Products, this connector is engineered for wide-ranging conductor compatibility. It accommodates main conductors ranging from 477 kcmil 18/0 ACSR to 4/0 ACSR, and 556 kcmil to 250 kcmil stranded conductors. For tap connections, the WR835 supports ACSR conductors from 4/0 to 1/0, stranded conductors from 4/0 to 1/0, and solid conductors from 4/0 to 2/0. The connector features a substantial 2-inch diameter, indicating its capacity for handling significant conductor sizes and ensuring a secure, high-integrity crimp. Its H-type design facilitates efficient and dependable connections, crucial for maintaining power flow and system stability in overhead power distribution and transmission networks. The aluminum construction offers excellent conductivity and corrosion resistance, essential for long-term performance in outdoor environments. This connector is a vital component for utility companies and electrical contractors performing line construction and maintenance. Its precise engineering ensures that conductor integrity is maintained under load, minimizing resistance and heat buildup.
  • Wide range of conductor compatibility for main and tap connections
  • Suitable for ACSR and stranded aluminum conductors
  • Durable aluminum construction for corrosion resistance
  • H-type compression design for secure and reliable connections
  • 2-inch diameter for substantial conductor capacity

Specifications

Application
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
None
Number Of Conductors
2
Size
Length 2 inch
Special Features
Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Main: 477 18/0 to 4/0 ACSR or 556 to 250 STR kcmil , Tap: 4/0 to 1/0 ACSR or 4/0 to 1/0 STR or 4/0 to 2/0 SOL AWG
Package Dimensions (L x W x H)
6.75 IN x 3.25 IN x 7.06 IN
Package Dimensions (L x W x H)
17.145 cm x 8.255 cm x 17.9324 cm
Package Weight (Imperial)
0.3000 L
Package Weight (Metric)
0.1360 kg
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Connector, Two-Way, 2/0 Aluminum to 1/0 Copper

269-31499-10

Connector, Two-Way, 2/0 Aluminum to 1/0 Copper
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-336 ACSR, 556-336 Str., Tap: 4/0-2/0 ACSR, 4/0-3/0 Str. 4/0 Sol., Die: N. 2 inch.

WR839

Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-336 ACSR, 556-336 Str., Tap: 4/0-2/0 ACSR, 4/0-3/0 Str. 4/0 Sol., Die: N. 2 inch.
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-4/0 ACSR, 556-250 Str., Tap: 336 18/1-266 ACSR, 350-250 Str., 336-397 Sol. 3 inch.

WR875

Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-4/0 ACSR, 556-250 Str., Tap: 336 18/1-266 ACSR, 350-250 Str., 336-397 Sol. 3 inch.
Aluminum Wide Range H-Type Compression Connector Main: 3-6 ACSR, 2-6 Str., 1-4 Sol.,Tap: 8-14 Str., 8-14 Sol., Die: 5/8 OR BG. 13/16 inch.

WR9

Aluminum Wide Range H-Type Compression Connector Main: 3-6 ACSR, 2-6 Str., 1-4 Sol.,Tap: 8-14 Str., 8-14 Sol., Die: 5/8 OR BG. 13/16 inch.
Aluminum Wide Range H-Type Compression Connector Main: 556 18/1 - 300 ACSR, 600 - 336 Str., Tap: 556 18/1 - 300 ACSR, 600 - 336 Str., Die: R OR Z. 4-3/4 inch

WR929

Aluminum Wide Range H-Type Compression Connector Main: 556 18/1 - 300 ACSR, 600 - 336 Str., Tap: 556 18/1 - 300 ACSR, 600 - 336 Str., Die: R OR Z. 4-3/4 inch
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-366 ACSR, 500-336 Str., Tap: 477 18/1-336 ACSR, 500-336 Str., Die: N. 3 inch.

WR889

Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-366 ACSR, 500-336 Str., Tap: 477 18/1-336 ACSR, 500-336 Str., Die: N. 3 inch.
Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-366 ACSR, 556-336 Str., Tap: 336 18/1-266 ACSR,, 350-266 Str. 397 Sol. 3 inch.

WR879

Aluminum Wide Range H-Type Compression Connector Main: 477 18/1-366 ACSR, 556-336 Str., Tap: 336 18/1-266 ACSR,, 350-266 Str. 397 Sol. 3 inch.

Frequently Asked Questions

What conductor sizes does the ABB WR835 support?

The WR835 supports main conductors from 477 18/0-4/0 ACSR and 556-250 Str. It supports tap conductors from 4/0-1/0 ACSR, 4/0-1/0 Str., and 4/0-2/0 Sol.

What type of conductors can be used with the WR835 connector?

The WR835 is designed for ACSR (Aluminum Conductor Steel Reinforced) and stranded aluminum conductors for main connections, and ACSR, stranded, and solid aluminum conductors for tap connections.

What is the diameter of the WR835 connector?

The WR835 connector has a diameter of 2 inches.

Who manufactures the WR835 compression connector?

The WR835 compression connector is manufactured by ABB - Installation Products.

What is the UNSPSC code for this ABB connector?

The UNSPSC code for this ABB connector is 39121409.
