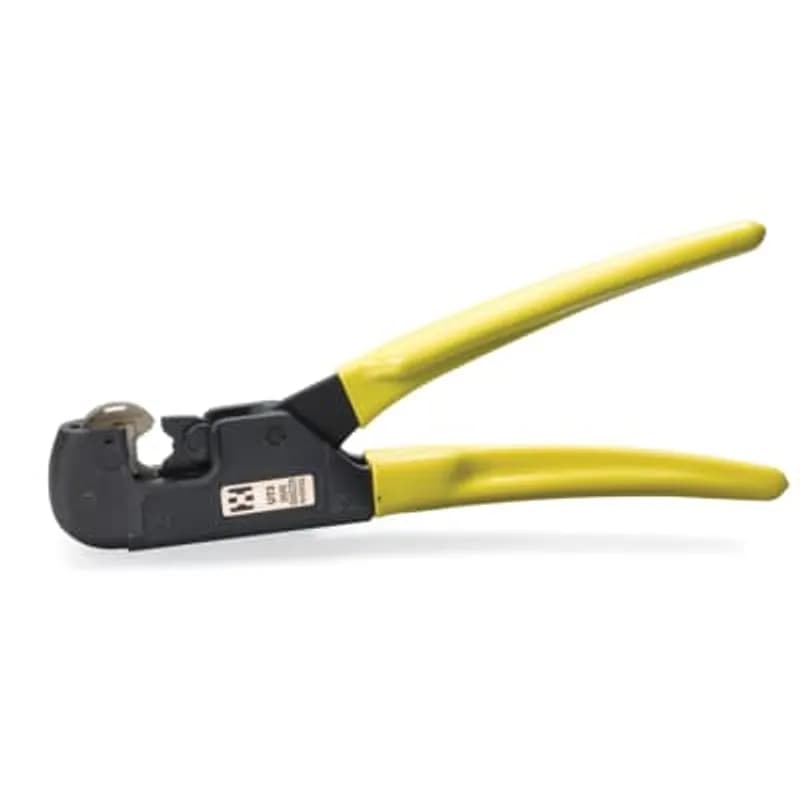

ABB Installation Products UT 3 Installation Tool - Installs Compression Connectors on ACSR, Stranded, Compressed, and…
UPC: 783786755790
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Installs compression connectors on ACSR, stranded, compressed, and compact stranded conductors.
- Features yellow PVC slip-on grip handles for enhanced comfort and control.
- Includes a gold die for optimal performance with compression connectors.
- Designed for reliable and efficient connector termination.
- Manufactured by ABB - Installation Products.
Specifications
Application | Installs compression connectors on ACSR, stranded, compressed and compact stranded |
Color | Yellow |
Material | PVC |
Series | UT 3 |
Special Features | One stroke of the tool develops full compression |
Type | Manual Compression Tools |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.6700 L |
Package Weight (Metric) | 1.2110 kg |
UT 3 M
Installation Tool - Installs Compression Connectors rom #8 to 4/0. PVC Yellow Slip on Grip handles. Weight 2.2 pounds.
DF 175-350
175 Kit For 350 MCM, Consists of 5-7/8 inch x 1-3/4 inch Aluminum Connector with 2-Hole 7/8 inch thick Pad, 2-Hole Aluminum Lug ( AL 350 N ), EPDM Rocket, EPDM Stud Cover, Lubricant and Black Cap. Hardware includes two Screws and one Jam Nut.KBEZ 3N
Transformer Pedestal Connector, Aluminum Keebar, Stud size 5/8 inch and 1 inch. 6-Hole Pad 4.875 inch wide x 3.125 inch deep x .375 inch thick.ABK-AD 8172
Tin Plated Aluminum Lay In Transformer Spade Connector Adapter Pad, 18 Inch Long X .750 Thick X 14.609 Wide. 1/2 inch Hardware includes (8) Stainless Steel Flat Washers, (4) Stainless Steel Belleville Washers, (4) Silicone Bronze Nuts, (4) Stainless Steel 1/2-14 x 2-1/4 inch Bolts. T-Shaped Pad - Top of T has (Total 16) .56 inch Diameter Holes (2 Rows of 8) along with (2) 1.13 inch Diameter holes. Bottom of T has (8) 56 inch Diameter Holes (2 Rows of 4) along with (2) Slotted Holes in the center.
BTC3104-B2-5
Type BTC,Copper,single conductor,one hole mount (offset-tang),for conductor rnage 4 Str- 3/0 Str.
15 C 150 R
Installation Dies, Round Dies for smooth, High Voltage Compression, Suitable for Low Voltage Use, Die Code 150R. Steel with Black Oxide Finish.Frequently Asked Questions
What types of conductors can the UT 3 install connectors on?
The ABB UT 3 installation tool can install compression connectors on ACSR, stranded, compressed stranded, and compact stranded conductors.
What type of die is included with the UT 3 tool?
The ABB UT 3 installation tool includes a gold die for use with compression connectors.
What are the grip handles made of on the UT 3 tool?
The ABB UT 3 installation tool features yellow PVC slip-on grip handles for user comfort and control.
Who manufactures the UT 3 installation tool?
The ABB UT 3 installation tool is manufactured by ABB - Installation Products.
How to Prepare and Maintain the UT 3 Compression Tool
This guide provides instructions for the initial setup of dies for 1/2" and 5/8" compression connectors and routine lubrication for the UT 3 tool, ensuring proper operation and longevity.
Estimated time: 10m
Tools needed:
Tolerance gauge
Supplies needed:
Good grade lubricating oil
- Review Safety Information
Before operating or servicing the UT 3 tool, read and understand all instructions and safety information provided in the manual. Be aware of proper usage and potential hazards to prevent injury or damage.
- Lubricate Pivot and Link Pin Areas
Occasionally apply a good grade of lubricating oil to the pivot and link pin areas of the tool. This maintenance step ensures smooth operation of the ratchet and pawl mechanism and extends the tool's lifespan.
- Install Dies for 1/2" Connectors
To prepare the tool for 1/2" compression connectors, ensure the upper die is inserted into the tool head with the '1/2"' marking readable and the '5/8"' marking upside down. Refer to Figure B in the manual for the correct orientation.
- Install Dies for 5/8" Connectors
To prepare the tool for 5/8" compression connectors, pull the upper die straight out of the tool head. Reverse the die and re-insert it so the '5/8"' marking is readable. Refer to Figure C in the manual for the correct orientation.
- Test Tool Compression (Optional)
To verify proper compression, place a tolerance gauge between the dies and close the tool. If the gauge is not held firmly in place, the tool is below tolerance and should be returned to the factory for repair.
