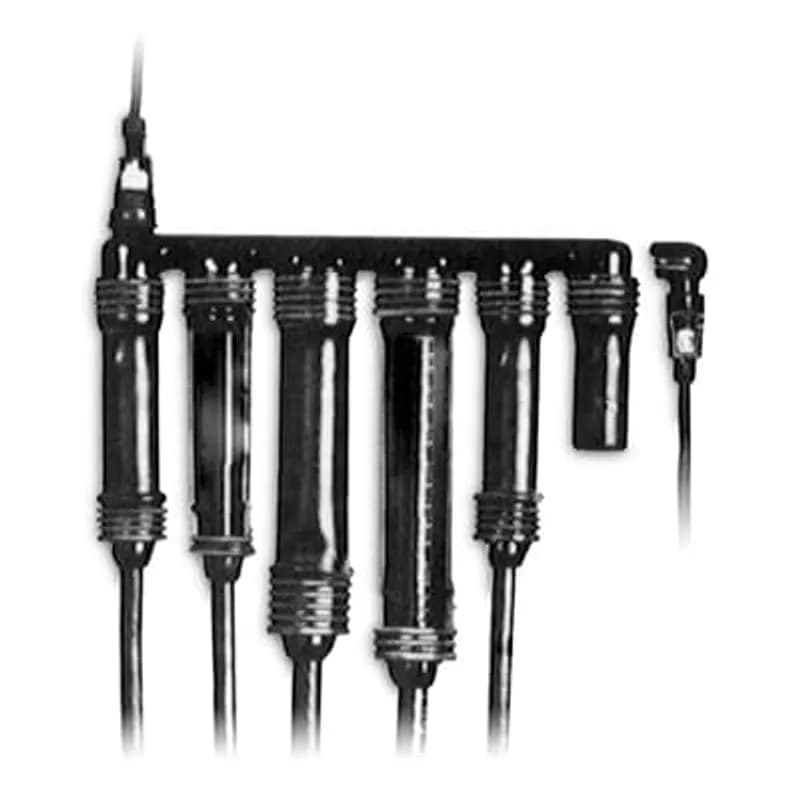

ABB - Installation Products UPC40 - Flood-Seal Bus Connectors, length 7.1 inch, 179 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 4, ports 4
ABB - Installation Products

UPC40

UPC: 783786831654

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Overview

The ABB Flood-Seal Bus Connector, SKU UPC40, is designed for secure and reliable electrical connections in demanding industrial settings. This connector features a robust construction with a length of 7.1 inches (179 mm) and a height of 6.5 inches (165 mm) including the sleeve. It is equipped to handle multiple conductor sizes, accommodating a 2-bolt configuration for larger terminals and a 1-bolt configuration for smaller terminals (size 4). The design incorporates 4 ports, facilitating efficient and organized wiring. This Flood-Seal connector ensures a protected connection, crucial for maintaining system integrity and preventing environmental ingress. Its specific dimensions and terminal configurations make it suitable for applications requiring precise electrical distribution and connection points. The UNSPSC code for this product is 39121443, categorizing it within electrical connectors and accessories. ABB's Installation Products division is known for providing dependable solutions for electrical infrastructure.
  • ABB Flood-Seal Bus Connector, SKU UPC40
  • Length: 7.1 inches (179 mm)
  • Height with sleeve: 6.5 inches (165 mm)
  • Terminal Configuration: 2-bolt large, 1-bolt small (size 4)
  • Number of Ports: 4

Specifications

Application
For pedestal, vault, handhole and direct-burial applications
Color
Black
Conductor Range
350 to 500 kcmil
Connection Type
2-bolt large terminal, 1-bolt small terminal
Poles
4 ports
Series
Flood-Seal Bus Connectors
Size
7.1 Inches
Size
7.1 inch (179 mm) length, 6.5 inch (165 mm) height with sleeve
Special Features
Watertight
Type
Bus connectors
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1500 L
Package Weight (Metric)
0.0680 kg
Flood-Seal Bus Connectors, length 10.8 inch, 248 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 6, ports 6

UPC60

Flood-Seal Bus Connectors, length 10.8 inch, 248 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 6, ports 6
Flood-Seal Bus Connectors, length 9.2 inch, 223 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 2, ports 2

UPC51

Flood-Seal Bus Connectors, length 9.2 inch, 223 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 2, ports 2
Flood-Seal Bus Connectors, length 10.2 inch, 259 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 5, 1-bolt small term 0, ports 5

UPC55

Flood-Seal Bus Connectors, length 10.2 inch, 259 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 5, 1-bolt small term 0, ports 5
Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with Twin-Screw two-way configuration, conductor range 2-1000, outlets 8 (4 per side) with 2-Holes each, Includes (16) Screws, (8) Insulating Rockets and Silicone Grease Packets. 9-43/64 inch wide x 10-1/2 inch tall.

UH 1000-44 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with Twin-Screw two-way configuration, conductor range 2-1000, outlets 8 (4 per side) with 2-Holes each, Includes (16) Screws, (8) Insulating Rockets and Silicone Grease Packets. 9-43/64 inch wide x 10-1/2 inch tall.
Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with Twin-Screw one-way configuration, conductor range 2-1000, 8 Towers with 2-Holes each. 19-59/64 inch wide x 5-1/4 inch tall x 2-1/8 inch deep. Includes (8) Insulating Rockets. Black PVC Coating. Instruction Sheet. Silicone Grease, (16) Screws 7/8-14.

UH 1000-8 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with Twin-Screw one-way configuration, conductor range 2-1000, 8 Towers with 2-Holes each. 19-59/64 inch wide x 5-1/4 inch tall x 2-1/8 inch deep. Includes (8) Insulating Rockets. Black PVC Coating. Instruction Sheet. Silicone Grease, (16) Screws 7/8-14.
Stud Adapter kit for Flood-Seal 95 and 125 Series threaded Transformer Connectors. Kit includes Adapter with Inter Stud Size 5/8-11 UNC-2B - Right Hand Thread and Outer Stud Size 1-14 UNS-2A Left Hand Thread, includes EPDM Stud Cover 4.281 inches long, Pink Cap, TL 101 Grease and Steel Jam Nut 5/8-11 UNC-2B.

2135 K

Stud Adapter kit for Flood-Seal 95 and 125 Series threaded Transformer Connectors. Kit includes Adapter with Inter Stud Size 5/8-11 UNC-2B - Right Hand Thread and Outer Stud Size 1-14 UNS-2A Left Hand Thread, includes EPDM Stud Cover 4.281 inches long, Pink Cap, TL 101 Grease and Steel Jam Nut 5/8-11 UNC-2B.
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5

UH 5 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5
Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with 350 services, conductor range feeder 2-1000 tap 6-350 SL 14-6, Eight Outlets, (2) 1-Hole, (4) 2-Hole and (2) 1-Hole. 15-3/4 inch wide x 5-1/4 inch tall for the 2-Hole. 2-Hole Towers tapped 7/8-14 UNF-2B, 1-Hole Towers Tapped 11/16-16 UNS-2B. Includes Screws, (4) long Rockets, (4) short Rockets, Silicone Grease. Black PVC Coating.

UH 1000-242 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors - UH 1000 series with 350 services, conductor range feeder 2-1000 tap 6-350 SL 14-6, Eight Outlets, (2) 1-Hole, (4) 2-Hole and (2) 1-Hole. 15-3/4 inch wide x 5-1/4 inch tall for the 2-Hole. 2-Hole Towers tapped 7/8-14 UNF-2B, 1-Hole Towers Tapped 11/16-16 UNS-2B. Includes Screws, (4) long Rockets, (4) short Rockets, Silicone Grease. Black PVC Coating.
