Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*

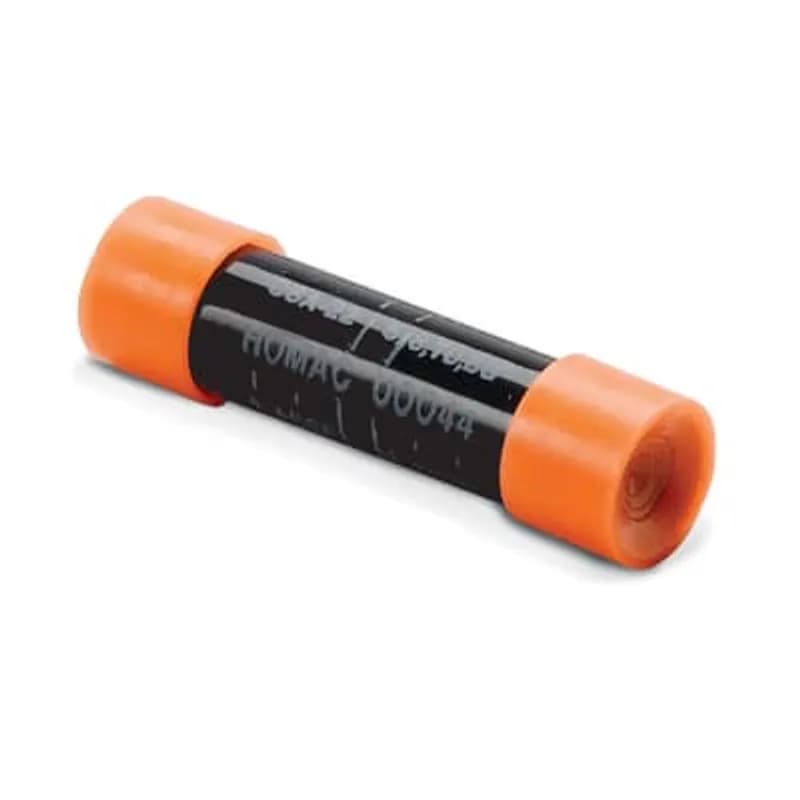

Overview
- Accommodates #2 to #4 AWG stranded, compact, or compressed conductors
- 3-1/4" length for proper insulation and mechanical strength
- Orange die series for correct compression sizing
- UL-listed for 600V systems, suitable for service entrance applications
- Insulated for direct burial and outdoor use, meets NEC requirements
Specifications
Application | For Compact Conductors |
Color | Orange/Orange |
Conductor Range | #4 STR , #4 COMPR , #4 COMPT |
Connection | Compression |
Insulation | Insulated |
Material | Aluminum |
Number Of Conductors | 2 |
Size | 3-1/4 inches long |
Special Features | Solid center barriers and large chamfers. Easy cable installation. Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture. Constructed from Aluminum. Provides high conductivity. All splices are marked with installation die codes and compression locations for easy identificaton and installation. Tough Stabilized -Nylon Sleeves Rresist Installing-Tool Pressure and Provide Reliable 600V Insulation |
Standard | ANSI C119.4 |
Type | Compression Splice Service Entrance Insulated |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0600 L |
Package Weight (Metric) | 0.0270 kg |
