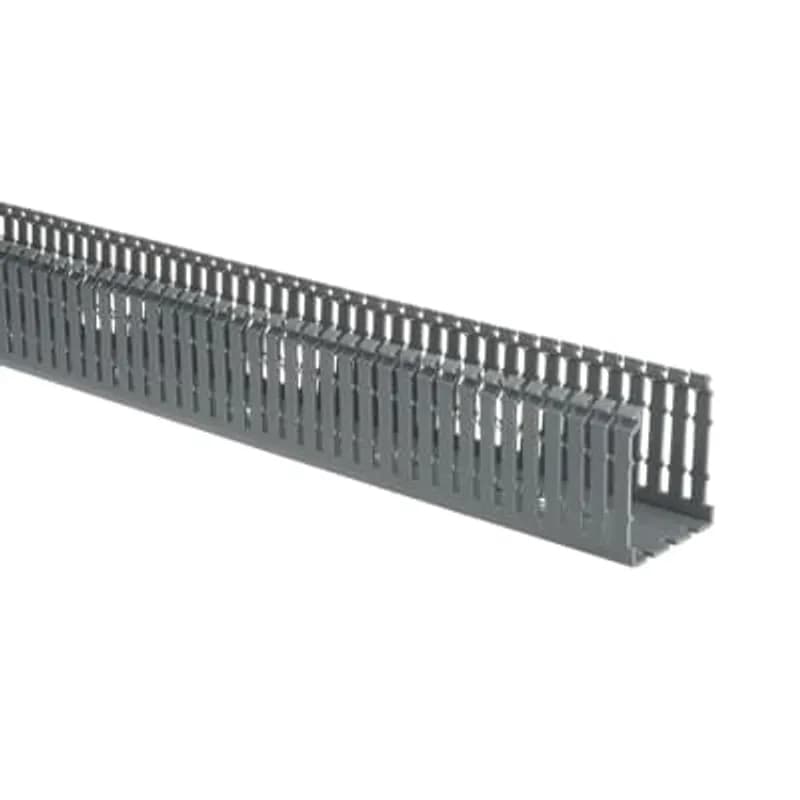

TYD2X3SPG6

The temperature rating is -40°F to 140°F (-40°C to 60°C).

The maximum operating temperature is 140°F (60°C).

The wiring duct is made from West Lake Chemical 5055 PVC with 100% regrind level.

The dimensions are 2.250 inches in width and 3.000 inches in height.

The cover design is flush mount, which mounts flush with the side walls.

The flammability rating is UL94V-0.

The product features North American and DIN style mounting holes.

Yes, the duct is compatible with various wire gauges including 8 AWG to 24 AWG.

Wire fill is based on 50% fill of duct area.
