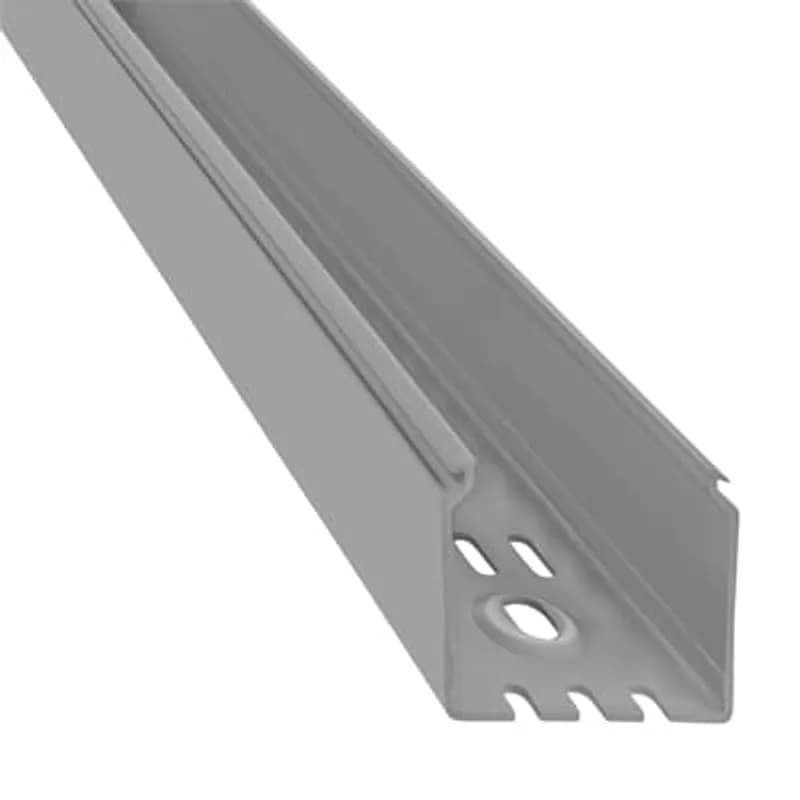

TYD2X2RPG6

The temperature rating is -40°F to 140°F (-40°C to 60°C).

The catalog number for this product is TYD2X2RPG6.

The product is made from West Lake Chemical 5055 PVC with a 100% regrind level.

The flammability rating is UL94V-0.

The cover mounts flush to the side walls with a flush mount cover design.

The product features North American and DIN style mounting holes.

The product is compatible with various wire sizes, including 8 AWG to 24 AWG.

The wire fill is based on 50% fill of duct area.

The drawing is intended for descriptive purposes only and may deviate from details shown.

All dimensions are for reference only and are provided in both imperial and metric units.
