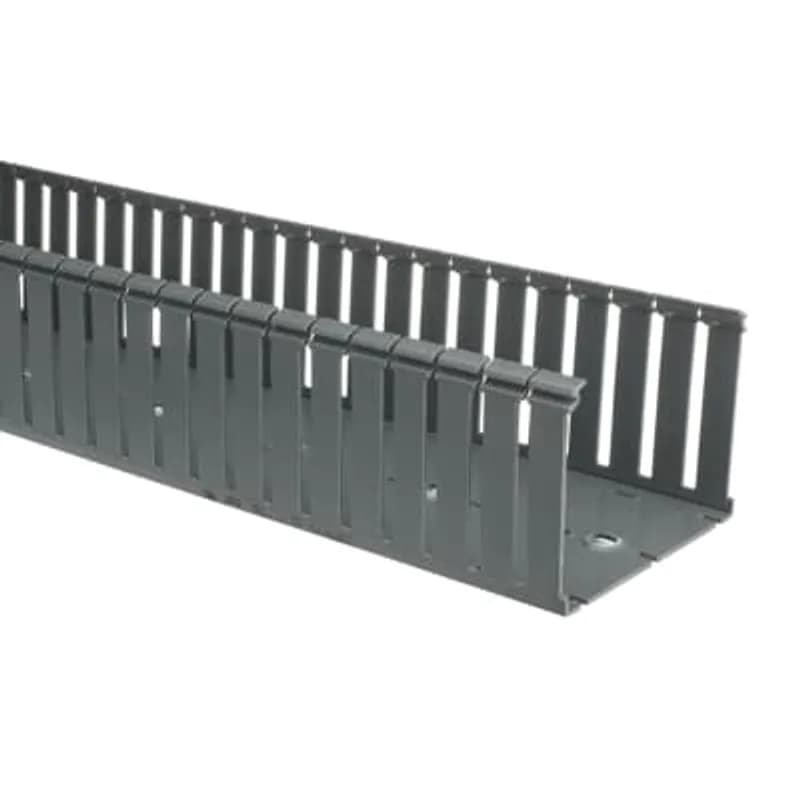

TYD15X3WPG6

The temperature rating is -40°F to 140°F (-40°C to 60°C).

The product is made from West Lake Chemical 5055 PVC with 100% regrind level.

Wire fill is based on 50% fill of duct area.

The slot size is .195 x .625 inches (5.0 x 15.9 mm).

The flammability rating is UL94V-0.

The product includes North American and DIN style mounting holes.

The cover mounts flush with the side walls for a clean design.

Dimensions are for reference only and vary by catalog number.

The product can accommodate various wire sizes, including up to 8 AWG.

Safety warnings are not explicitly stated in the document.
