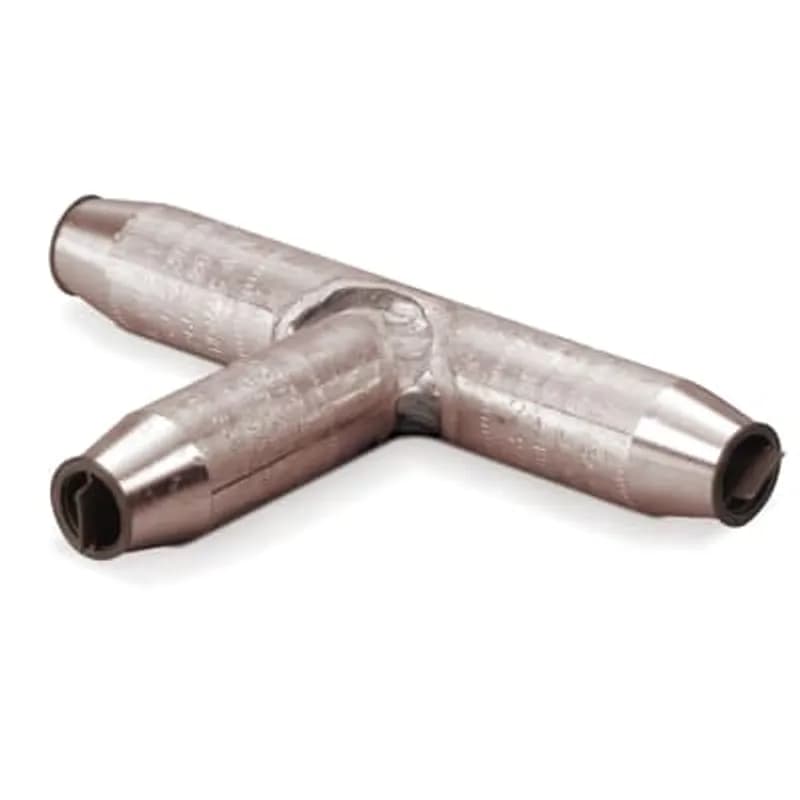

TT 500-500

The ABB TT 500-500 supports both 500 kcmil Copper (CU) and 500 Compact Copper (CU) for both the main and tap connections.

The main section of the ABB TT 500-500 is 2-19/32 inches long, and the tap section is 6-23/32 inches long.

The ABB TT 500-500 requires installation dies TH, 87, 20, 1, 251, and 12A for proper crimping.

The main is silver brazed to the tap on the ABB TT 500-500, ensuring a strong and conductive joint.

The dimpled construction on the ABB TT 500-500 enhances mechanical strength and improves electrical contact integrity.
