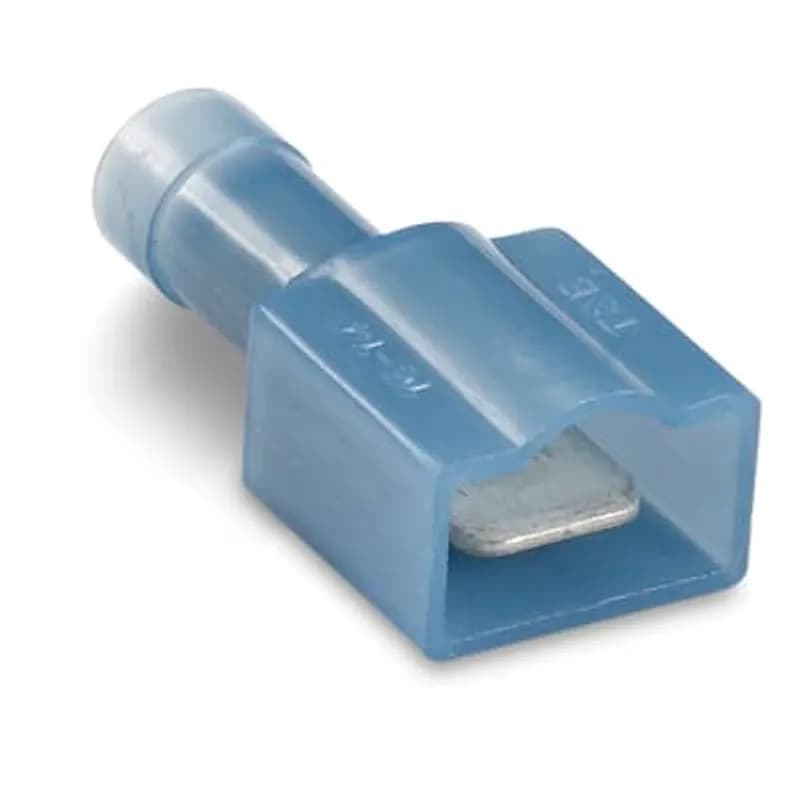

ABB - Installation Products TNF14-250MDD-XV - Nylon insulated double crimp male disconnect 250 Series, Wire range 16-14, Blue, Canister of 15 disconnects

ABB Installation Products TNF14-250MDD-XV Nylon insulated double crimp male disconnect 250 Series, Wire range 16-14, Blue…

UPC: 786209935892


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 75

Multiplier: 75

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB TNF14-250MDD-XV is a high-quality male disconnect terminal designed for reliable electrical connections. Manufactured by ABB Installation Products, this terminal is part of the 250 Series and features double crimp capability for enhanced wire security. It is specifically engineered to accommodate wire ranges from 16 to 14 AWG, ensuring compatibility with a common range of industrial wiring. The blue insulation color provides clear visual identification for different wire gauges, adhering to industry standards. Each canister contains 15 individual disconnects, offering a convenient and efficient supply for installation projects. The nylon insulation provides electrical isolation and protection, crucial for safe and effective operation in various industrial settings. This product is ideal for applications requiring secure and durable wire termination, contributing to the overall integrity and longevity of electrical systems. Its robust construction and precise manufacturing ensure consistent performance. The UNSPSC code for this product is 39121447, categorizing it within electrical connectors and accessories. This specific model, TNF14-250MDD-XV, is a testament to ABB's commitment to providing essential components for electrical installations.
  • ABB Installation Products TNF14-250MDD-XV Male Disconnect
  • Nylon insulated for electrical protection
  • Double crimp design for secure wire termination
  • Suitable for 16-14 AWG wire range
  • Blue color for easy identification, sold in canisters of 15

Specifications

Color
Blue
Finish
Tin Plated
Insulation
Yes
Material
Nylon
Standard
UL E66716
Type
Nylon Fully Insulated Double Crimp Male Disconnect
Voltage Rating
600 kV
Wire Size
16-14 AWG
Package Dimensions (L x W x H)
5.12 IN x 3.3 IN x 3.12 IN
Package Dimensions (L x W x H)
13.0048 cm x 8.382 cm x 7.9248 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
Nylon insulated double crimp female disconnect 250 Series, Wire range 16-14, Blue, Canister of 15 disconnects

TNF14-250FDD-XV

Nylon insulated double crimp female disconnect 250 Series, Wire range 16-14, Blue, Canister of 15 disconnects
16-14 AWG Nylon Insulated Female Disc .110X.020 Tab, 100/Pack

F16-110-2N

16-14 AWG Nylon Insulated Female Disc .110X.020 Tab, 100/Pack
Polycarbonate Insulated Female Disconnect Terminal Brazed Barrel Wire Range .5-1.5 millimeters squared Tab Size 4.8mm x .5mm

RA63V

Polycarbonate Insulated Female Disconnect Terminal Brazed Barrel Wire Range .5-1.5 millimeters squared Tab Size 4.8mm x .5mm
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, outlets 6, Oxide Inhibitor, with Street Light Option, Uses Boot number BB 11 - order separately.

ABC 6350 SLC

Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 12-350, length 6 inch, outlets 6, Oxide Inhibitor, with Street Light Option, Uses Boot number BB 11 - order separately.
Aluminum Pedestal Connector, #12 - 350 kcmil, Aluminum and Copper, Six Conductor, with cover, Black

ABC 6350 C BB 11BLK

Aluminum Pedestal Connector, #12 - 350 kcmil, Aluminum and Copper, Six Conductor, with cover, Black
Nylon Insulated Female Disconnect, Length .91 Inches, Width .29 Inches, Maximum Insulation .162, Tab Size .250x.032, Wire Range #16-#14, Color Blue, Copper, Tin Plated, On Left Feed Reel Mylar Tape, 1,000 Pack

RB250ML

Nylon Insulated Female Disconnect, Length .91 Inches, Width .29 Inches, Maximum Insulation .162, Tab Size .250x.032, Wire Range #16-#14, Color Blue, Copper, Tin Plated, On Left Feed Reel Mylar Tape, 1,000 Pack
Vinyl Fully Insulated Female Disconnect, Length 1.01 Inches, Width .38 Inches, Maximum Insulation .185, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated, On Left Feed Reel Mylar Tape, 1,000 Pack

RB2573ML

Vinyl Fully Insulated Female Disconnect, Length 1.01 Inches, Width .38 Inches, Maximum Insulation .185, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated, On Left Feed Reel Mylar Tape, 1,000 Pack
