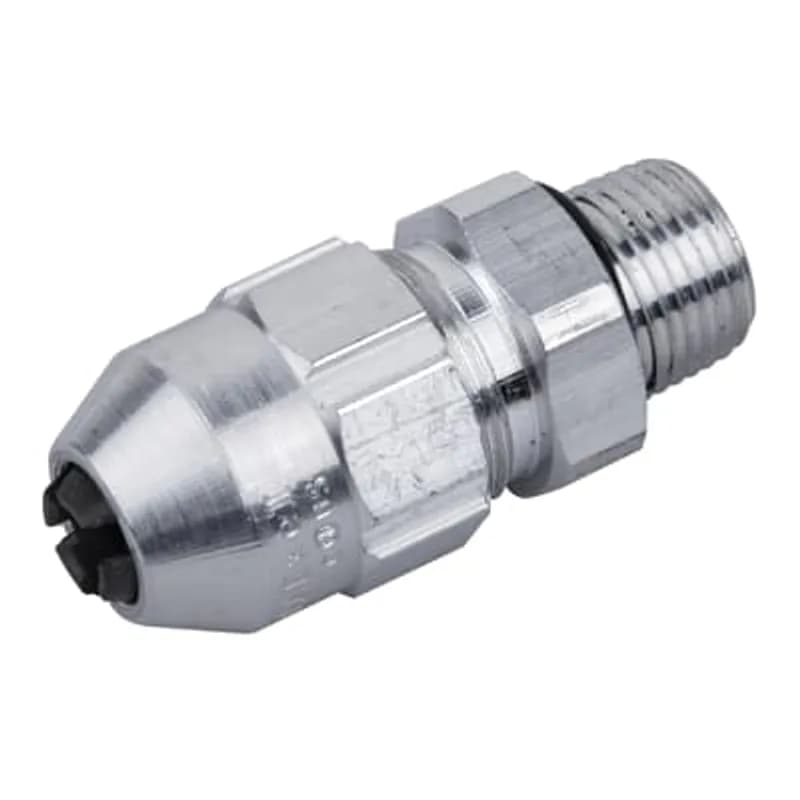

ABB Installation Products TCF100-109AL Tray/Cord Fitting, Hub Size NPT 1 Inch, Cable Diameter 0.940 to 1.090 Inch, Throat…

TCF series fittings conform to CSA C22.2 60079-0, 60079-7, UL 60079-0, 60079-7, UL514B, UL50 / CSA C22.2-18.3, -94, and RoHS.

The product must be installed in accordance with applicable national and local electrical codes.

The TCF100-109AL fitting has a 1 inch NPT thread.

The TCF100-109AL fitting has a cable range from 23.88 mm (0.940 in) minimum to 27.69 mm (1.090 in) maximum.

The TCF series cable fittings have an ingress protection rating of IP66 and are Type 4/4X. They are also Type 6 for flexible cord only.

The normal working temperature range for TCF series cable fittings is -40°C to +90°C.

The fittings are made of copper-free aluminum. Stainless steel 316 options are available for some models, including TCF100-109SS6.

The fittings are suitable for non-armoured, portable, and tray cables. They are designed for non-armoured/portable cables in Class I Zone 1 and tray cable in Class I Zone 2/Div 2.

TCF series cable fittings are suitable for hazardous and industrial locations, raceway and enclosures, and wet and dry locations.

TCF series cable fittings are suitable for hazardous and industrial locations, raceway and enclosures, and wet and dry locations.
