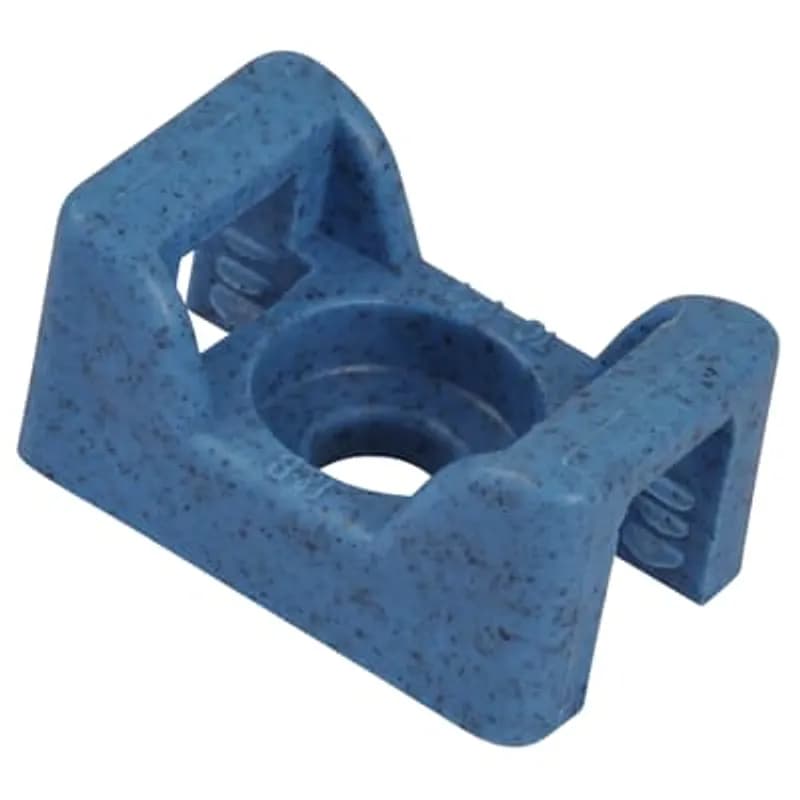

ABB - Installation Products TC5141-PDT - Detectable Saddle Support Mounting Base, Detectable Blue Polypropylene, Length of 17.02mm (0.67 Inches), Width of 11.1mm (0.43 Inches), Height of 8.38mm (0.33 Inches), Screw Mounting Method, #6 Pan Head Screw, Mounting Hole Size of 3.8mm (0.15 Inches)

ABB Installation Products TC5141-PDT Detectable Saddle Support Mounting Base, Detectable Blue Polypropylene, Length of…

UPC: 786209019431

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB TC5141-PDT Detectable Saddle Support Mounting Base (SKU: TC5141-PDT) from ABB Installation Products is engineered for secure and visible cable management in industrial environments. Constructed from durable blue polypropylene, this mounting base offers a reliable solution for attaching cables and conduits. Its compact dimensions, measuring 17.02mm (0.67 inches) in length, 11.1mm (0.43 inches) in width, and 8.38mm (0.33 inches) in height, allow for efficient use of space in control panels and equipment housings. The TC5141-PDT features a screw mounting method, specifically designed to accommodate a #6 Pan Head Screw, ensuring a firm and stable attachment. The mounting hole is precisely sized at 3.8mm (0.15 inches) to facilitate easy and accurate installation. This detectable mounting base is crucial for applications where visibility and traceability are paramount, aiding in quick identification and maintenance. Its blue color enhances visibility, making it suitable for use in areas where accidental damage or dislodgement needs to be minimized. The polypropylene material provides good chemical resistance and electrical insulation properties, common requirements in industrial settings. The TC5141 series designation indicates its place within ABB's range of mounting solutions, offering consistent quality and performance. This product is ideal for securing wiring harnesses, small cables, or conduit runs within electrical enclosures, machinery, or infrastructure projects. Its screw-down design ensures it remains in place under vibration or moderate stress, providing long-term cable support. The detectable nature of this base is a key feature for safety and compliance in certain industries, helping to prevent accidental damage to critical infrastructure. ABB's commitment to quality in their Installation Products ensures that the TC5141-PDT will perform reliably in its intended applications, contributing to organized and safe electrical installations. The UNSPSC code for this product is 39121717.
  • Detectable blue polypropylene construction for high visibility and durability.
  • Compact dimensions: 17.02mm (L) x 11.1mm (W) x 8.38mm (H).
  • Screw mounting method using a #6 Pan Head Screw.
  • Mounting hole size of 3.8mm for secure attachment.
  • Ideal for industrial cable management and traceability.

Specifications

Color
Blue
Material
Polypropylene
Mounting
Screw
Operating Temperature
-40 to +185 F
Operating Temperature, Maximum
185 F
Operating Temperature, Maximum
85 C
Operating Temperature, Minimum
-40 F
Operating Temperature, Minimum
-40 C
Special Features
Detectable with metal and X-ray detection equipment
Type
Saddle Support Base
Package Dimensions (L x W x H)
8 IN x 4 IN x 1 IN
Package Dimensions (L x W x H)
20.32 cm x 10.16 cm x 2.54 cm
Package Weight (Imperial)
0.001 L
Package Weight (Metric)
0.001 kg
