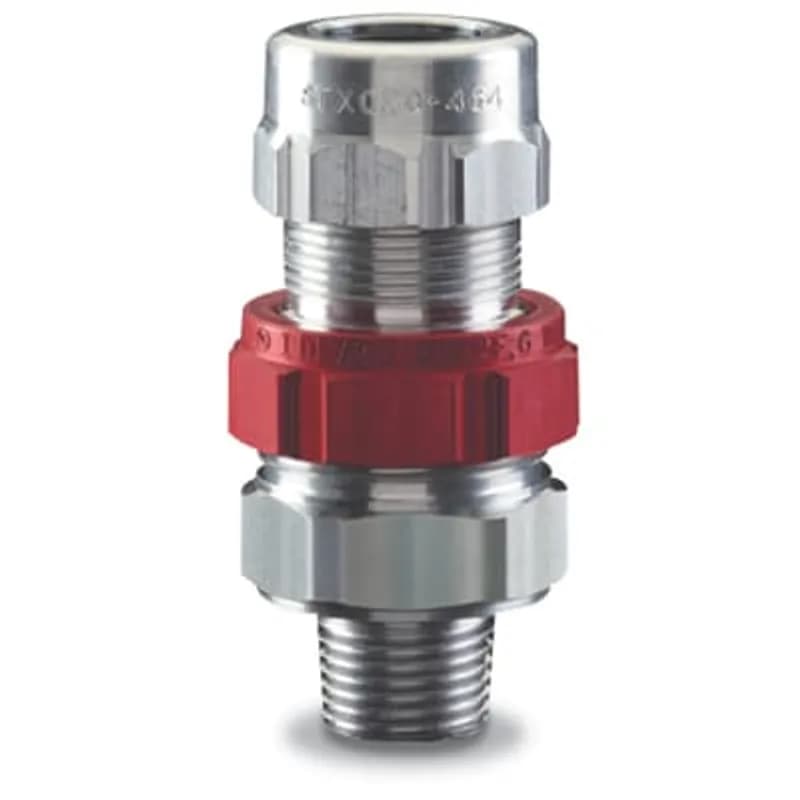

ABB Installation Products STX200-474S Star Teck XP hazardous location steel jacketed cable fitting hub size 2 inches Range…
UPC: 786210985251
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Designed for hazardous locations
- Steel jacketed cable fitting
- 2-inch hub size
- Accommodates jacket range 2.100-2.375 inches
- Easy-to-fill integral sealing chamber
Specifications
Application | For Hazardous Locations |
Color | Red;Silver |
Material | Steel |
Size | 2 Inches |
Standard | CSA 23086 |
Type | Teck Cable Fittings |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.4000 L |
Package Weight (Metric) | 1.5420 kg |
CCOP250
One piece strut clamp with saddle designed to secure rigid/EMT conduit or cable perpendicular to strut. It is made of steel with a galvanized finish. The clamp fits 2-1/2 in EMT and 2-1/2 in RMC and has a static load rating of 350 lbs.
CITEK-200-241-S
Steel fitting with a hub size of 2 inches for cables with over jacket diameters of 2.18 to 2.41 inches.CITEK-75-120
Aluminum fitting with a hub size of 3/4 inch for cables with over jacket diameters of 1.02 to 1.2 inches.
How to Install the STX200-474S Cable Fitting
Instructions for installing the STX200-474S Star Teck™ cable fitting with integral seal.
Estimated time: 30m
Tools needed:
Hacksaw, Screwdriver
Supplies needed:
Sealing compound (SC4-KIT-1 or SC65), Fiber damming material (if using SC4-KIT-1)
- Prepare the cable
Determine the required working length of the conductors. Remove a portion of the outer jacket to expose the armor. Cut the armor using a hacksaw, being careful not to nick the conductor insulation. Trim the outer jacket to the strip length specified in the product table.
- Feed cable through gland nut
Feed the cable through the gland nut opening and push until the cable armor contacts the end stop.
- Tighten gland nut
Tighten the gland nut until an appropriate seal is obtained or to the maximum torque specified in the table. Ensure the bushing and collar ring seal evenly around the cable's outer jacket and are flush with the gland nut face. Keep the cable centered for an optimal seal.
- Disassemble fitting components
Loosen the union to disassemble the hub from the body sub-assembly. Unscrew the sealing chamber from the body sub-assembly.
- Prepare conductors
Trim the inner jacket to a length of 1/8"-3/8" to expose the conductor bundle. For shielded data cables, remove the outer shield, taking care not to damage inner shields, and remove filler materials without disturbing inner shields.
- Apply sealing compound
If using liquid sealing compound (SC4-KIT-1), pack fiber damming material into voids between conductors and body, and spread grounding conductor strands if applicable. Mix the compound according to package instructions and fill the sealing chamber. For fittings STX300-478 and larger, fill halfway, wait 2 hours, then fill to the top. If using putty-type sealing compound (SC65), mix the two parts until uniform. Apply a portion between insulated conductors and around uninsulated grounding conductor strands. Build up compound to fill the sealing chamber.
- Reassemble and seal
Screw the sealing chamber back onto the body sub-assembly until fully seated. Slide the sealing chamber onto the cable and compound. Screw the sealing chamber to the body sub-assembly until fully seated. Remove any excess compound with a damp cloth. For putty compound, fill the throat area of the sealing chamber and pack tightly around conductors. Allow compound to set for approximately one hour.
- Mount hub
Mount the hub in the desired location. Once the sealing compound is solidified, place the encapsulated assembly into the hub and secure by tightening the union until metal-to-metal contact is achieved.
