ABB - Installation Products SP6DS - Short Stud Double Service Post Connectors for Conductors 2/0 - 2 Stranded, 2 Solid, Stud Size 1/2 - 13 x 3/4
More images
ABB - Installation Products

SP6DS

UPC: 783786805327

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 150

Multiplier: 150

*Contact for lower quantities*

Overview

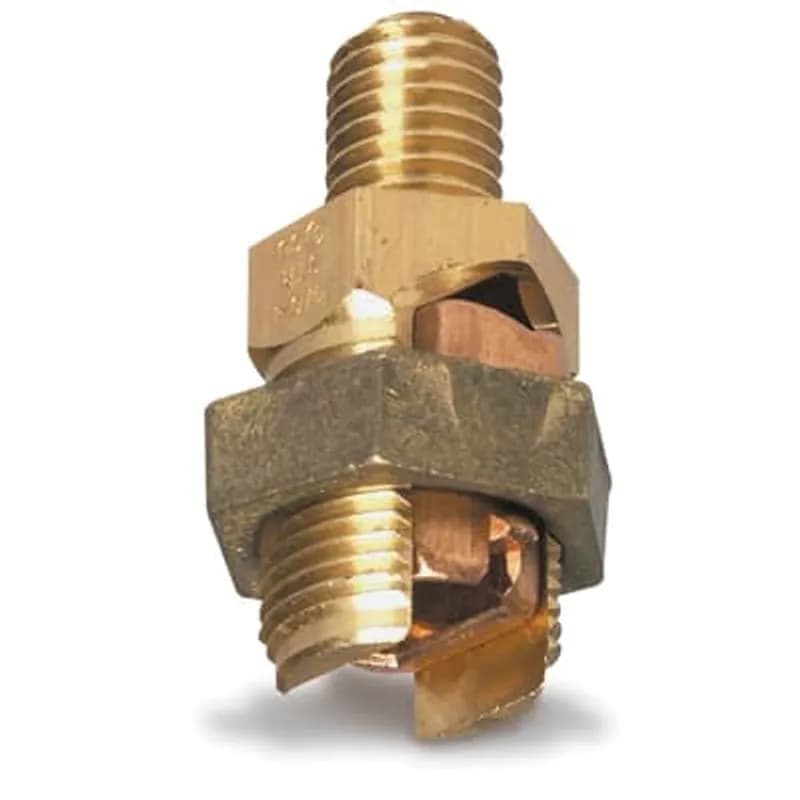

The ABB SP6DS Short Stud Double Service Post Connector (SKU: SP6DS) is designed for reliable electrical connections in various industrial applications. This connector is engineered to accommodate conductors ranging from 2/0 to 2 AWG stranded wire, and also supports 2 AWG solid wire. The stud size is specified as 1/2-13 x 3/4 inches, providing a secure mounting point for terminal lugs. This connector facilitates the termination of multiple conductors to a single post, simplifying wiring configurations and ensuring efficient current transfer. Its construction is focused on providing a robust and dependable connection point for electrical distribution and service entrance applications. The double service post design allows for the connection of two separate conductor sets to a single stud, enhancing versatility in panel building and equipment manufacturing. ABB, a recognized leader in installation products, ensures that the SP6DS meets stringent manufacturing standards for electrical infrastructure components. The UNSPSC code for this product is 39121613, categorizing it within electrical connectors and hardware. This connector is a practical solution for electrical contractors and maintenance professionals requiring dependable termination points for medium-gauge conductors.
  • Accommodates 2/0 to 2 AWG stranded conductors
  • Supports 2 AWG solid conductors
  • Features a 1/2-13 x 3/4 inch stud size
  • Double service post design for multiple connections
  • Manufactured by ABB - Installation Products

Specifications

Application
For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus bar
Conductor Material
Bronze
Insulation
No
Size
Stud Size 1/2 - 13 x 3/4
Special Features
Hex design bolts are machined from high-conductivity bronze alloy
Standard
UL E9809
Type
Mechanical Grounding
Package Dimensions (L x W x H)
6.8 IN x 5.3 IN x 4.7 IN
Package Dimensions (L x W x H)
17.272 cm x 13.462 cm x 11.938 cm
Package Weight (Imperial)
0.1000 L
Package Weight (Metric)
0.0450 kg
