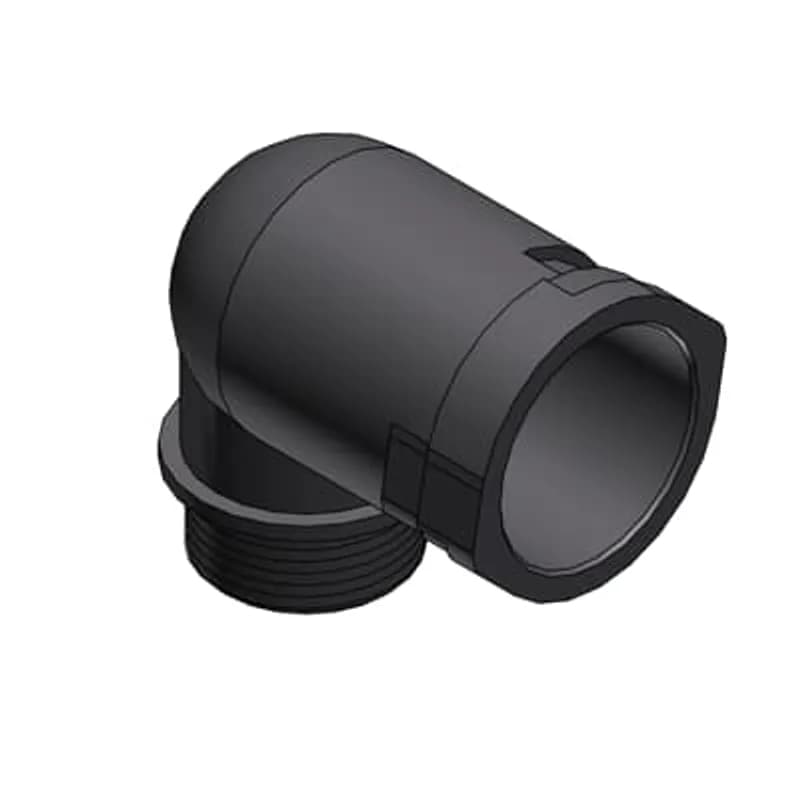

ABB - Installation Products SLWD-M162 - Smart Line 90 Degree Grey One-Piece Elbow with Integral Cone Seal, Material-Polyamide 6, Conduit Size NW12, Thread Size - M16x1.5
ABB - Installation Products

SLWD-M162

UPC: 786209971197

Documents & Media
Video ClipManufacturer Product Website

Contact for Pricing

Overview

Upgrade your electrical conduit systems with the ABB Smart Line 90 Degree Grey One-Piece Elbow (SKU: SLWD-M162), a premium conduit fitting engineered for uncompromising performance in industrial, commercial, and residential applications. Manufactured by ABB – Installation Products, this high-quality elbow combines advanced materials and precision engineering to deliver exceptional durability, reliability, and ease of installation. Crafted from durable Polyamide 6 (PA6), the SLWD-M162 ensures outstanding resistance to chemicals, UV radiation, and mechanical stress, making it ideal for harsh environments. The integral cone seal provides a secure, watertight connection that prevents moisture ingress and maintains system integrity over time. This one-piece design eliminates the need for additional components, reducing installation time and minimizing the risk of leaks or failures. Designed for conduit size NW12 and featuring an M16x1.5 thread, this 90-degree elbow offers a seamless fit with compatible conduit systems. Its gray color ensures easy identification and integration into existing installations. Whether you're working in manufacturing plants, data centers, commercial buildings, or residential wiring systems, the ABB Smart Line fitting delivers consistent performance and long-term reliability. ABB’s Smart Line fittings are engineered to meet stringent industry standards, ensuring compliance with quality and safety regulations. The SLWD-M162 is part of ABB’s comprehensive range of installation products, trusted by professionals worldwide for their precision, durability, and ease of use. Invest in the SLWD-M162 to enhance the efficiency, safety, and longevity of your electrical conduit systems.
  • 90-degree elbow fitting for NW12 conduit systems
  • One-piece design with integral cone seal for watertight connections
  • Made from durable Polyamide 6 (PA6) for chemical, UV, and mechanical resistance
  • M16x1.5 thread for secure attachment to compatible systems
  • Ideal for industrial, commercial, and residential electrical installations

Specifications

Application
Machine Building, Installation and Construction Industries
Declaration of Conformity - CE
9AKK107680A0674
Material
Polyamide/Nylon 6
Material Quality
Nylon;Polyamide/Nylon 6
Special Features
Elbows-90 Degree
Type
Elbows-90 Degree
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.020 L
Package Weight (Metric)
0.009 kg

Similar Products

SLWD-M160

SLWD-M120

SLWD-M202

Color: Grey

Material: Polyamide 6

Size: M20x1.5

SLWD-P167

Color: Gray

Material: Polyamide 6

Size: NW17 , PG16 Thread

SLWD-M207

SLWD-M253

Color: Grey

Material: Polyamide 6

Size: NW23 Conduit, M25x1.5 Thread

You May Also Be Interested In

Smart Line 90 Degree Grey One-Piece Elbow with Integral Cone Seal, Material-Polyamide 6, Conduit Size NW10, Thread Size - M16x1.5

SLWD-M160

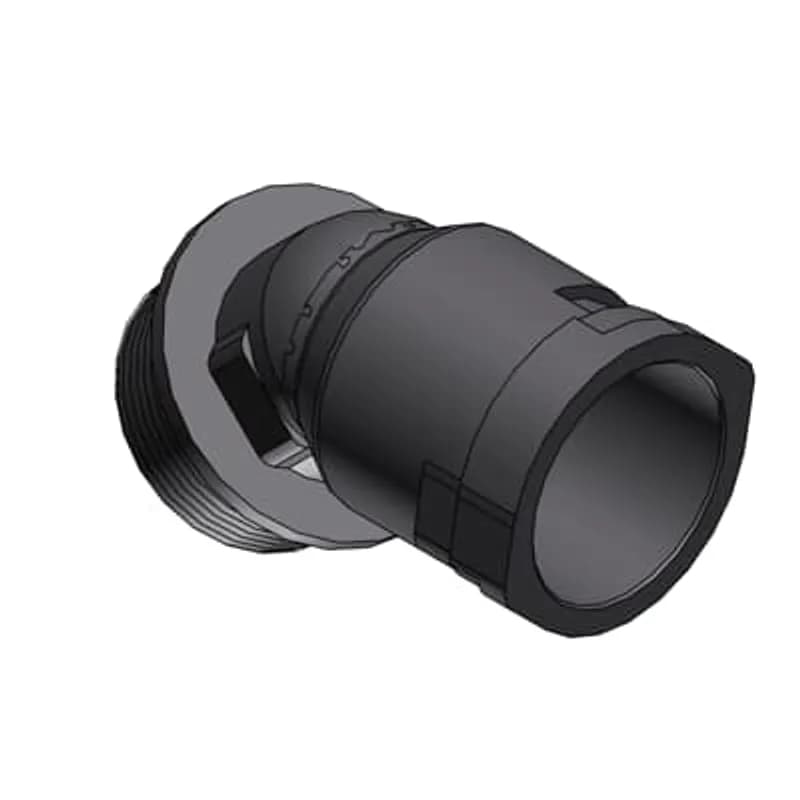

Smart Line 45 Degree Grey One-Piece Elbow with Integral Cone Seal, Material-Polyamide 6, Conduit Size NW12, Thread Size - M16x1.5
