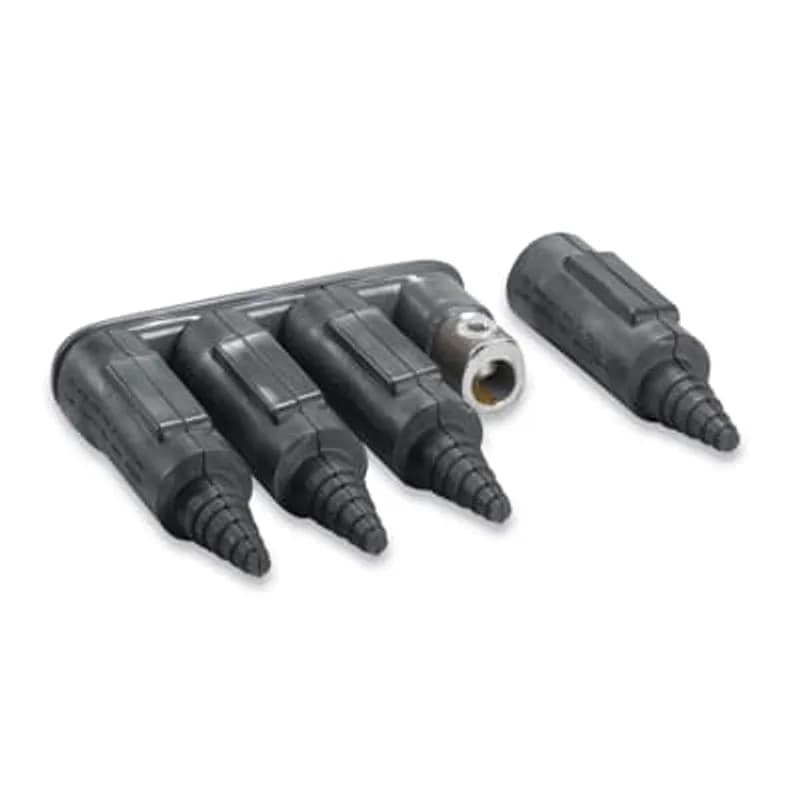

ABB - Installation Products SHC 500-4 SL - SweetHeart Aluminum, Black PVC Insulated, Set Screw Type Bus with Rubber Sealing Covers, #2 - 500 kcmil, #2-#14 Streetlight, Four Towers, 8.25 inch. Includes Screws, Rockets and Grease

ABB Installation Products SHC 500-4 SL SweetHeart Aluminum, Black PVC Insulated, Set Screw Type Bus with Rubber Sealing Covers…

UPC: 783786334643


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 27

Multiplier: 27

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SHC 500-4 SL SweetHeart Aluminum Bus is engineered for reliable electrical connections in demanding industrial applications. This set screw type bus features a durable black PVC insulation, providing robust protection and clear identification. Designed to accommodate a wide range of conductor sizes, it supports aluminum conductors from #2 AWG up to 500 kcmil, ensuring versatility for various wiring configurations. The #2 to #14 AWG capacity for streetlights further enhances its applicability in specialized infrastructure projects. Constructed with a high-quality aluminum body, the SHC 500-4 SL offers excellent conductivity and corrosion resistance. The set screw connection type ensures a secure and dependable mechanical connection, crucial for maintaining signal integrity and preventing power loss. This model is equipped with four towers, providing multiple connection points for efficient distribution. Its compact 8.25-inch length makes it suitable for installations where space is a consideration. Each ABB SHC 500-4 SL unit includes all necessary components for immediate installation: screws for secure mounting, rockets for robust anchoring, and grease to facilitate proper connection and prevent oxidation. The inclusion of rubber sealing covers adds an extra layer of protection against environmental factors, ensuring long-term performance. Manufactured by ABB - Installation Products, this bus bar is a testament to their commitment to quality and innovation in electrical infrastructure solutions. The UNSPSC code 39121443 categorizes this product within electrical connectors and accessories, highlighting its role in power distribution and management systems.
  • SweetHeart Aluminum Bus with Black PVC Insulation
  • Set Screw Type Connection for Secure Electrical Joints
  • Accommodates Aluminum Conductors #2 - 500 kcmil
  • Four Tower Design for Multiple Connections
  • Includes Screws, Rockets, and Grease for Installation

Specifications

Color
Black
Conductor Range
#2 to 500 kcmil
Connection
Mechanical
Insulation
PVC Coating
Material
Aluminum
Number of Conductors
4
Size
8.25 inch
Special Features
Oxide Inhibitor, Street Light
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.8500 L
Package Weight (Metric)
2.2000 kg
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.

UH 500-2 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.
Multi Seal, Copper Insulated Bus Connector, #10 - 500 kcmil, Six Conductor, 9 inch long, Santoprene Coated

RAB 65 CU

Multi Seal, Copper Insulated Bus Connector, #10 - 500 kcmil, Six Conductor, 9 inch long, Santoprene Coated
Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector, #2-1000 kcmil, Aluminum and Copper, 12 Conductor, includes Screws, Rockets and Caps. 21.432 inch

RXM 66 C

Aluminum Flood-Seal Multi-Port EPDM Rubber Insulated Bus Connector, #2-1000 kcmil, Aluminum and Copper, 12 Conductor, includes Screws, Rockets and Caps. 21.432 inch
Aluminum, Black PVC Dipped, 8 Outlets with (2) .312 inch Diameter holes on each outlet. Dimensions 16.125 inch long x 4.172 inch High x 1.250 inch wide. Thickness of Pad .437 inch. PVC Coating Thickness .125 inch.

FSQ 8-125

Aluminum, Black PVC Dipped, 8 Outlets with (2) .312 inch Diameter holes on each outlet. Dimensions 16.125 inch long x 4.172 inch High x 1.250 inch wide. Thickness of Pad .437 inch. PVC Coating Thickness .125 inch.
Multi-Port Transformer Connector - Bus 5 positions/towers with two 1/2 inch holes per tower, 1000 MCM, 11.750 inches x 12.531 inches. Welded 45 Degree Aluminum Pad with Six 0.625 inch Diameter Holes (Spacing 1.625 inch side to side and 1.750 inch front to back) on 5 inch x 3.312 inch x .750 inch Thick Pad. Coated with Black PVC. Includes 10 Screws for Towers. Left Hand Pad.

FS 5-175-6 BF 45 L

Multi-Port Transformer Connector - Bus 5 positions/towers with two 1/2 inch holes per tower, 1000 MCM, 11.750 inches x 12.531 inches. Welded 45 Degree Aluminum Pad with Six 0.625 inch Diameter Holes (Spacing 1.625 inch side to side and 1.750 inch front to back) on 5 inch x 3.312 inch x .750 inch Thick Pad. Coated with Black PVC. Includes 10 Screws for Towers. Left Hand Pad.
Tin-Plated Copper 175 Series connectors - two-way configuration, length 18 inches, outlets 12, Assembled with Insulating Rockets

FS 66-175 CUAWR

Tin-Plated Copper 175 Series connectors - two-way configuration, length 18 inches, outlets 12, Assembled with Insulating Rockets
SweetHeart Aluminum Bus Connector, Feeder 1/0 - 750 kcmil, Tap #6 - 350 kcmil. 4 Towers, Center 2 Towers with (2) 7/8 inch Diameter Holes and (1) 9/16 inch Diameter Hole, Outside Towers have One 11/16 inch Diameter Hole. PVC Coated. Comes with 8 Screws, Insulating Sleeves. Grease, Black PVC Coating. 9-7/16 inch long.

UH 2750-235 SLR

SweetHeart Aluminum Bus Connector, Feeder 1/0 - 750 kcmil, Tap #6 - 350 kcmil. 4 Towers, Center 2 Towers with (2) 7/8 inch Diameter Holes and (1) 9/16 inch Diameter Hole, Outside Towers have One 11/16 inch Diameter Hole. PVC Coated. Comes with 8 Screws, Insulating Sleeves. Grease, Black PVC Coating. 9-7/16 inch long.
SweetHeart Aluminum Bus connector, #2-500 kcmil, Aluminum and Copper, 6 Conductors. 12-39/64 inch wide. 2-1/4 inch Tower Center Spacing, 2 inches between Hole Centers of Towers. Black PVC Coating. (12 Screws 7/8-14 x 1-1/32 inch long, Silicone Grease.

UH 500-6 SLR

SweetHeart Aluminum Bus connector, #2-500 kcmil, Aluminum and Copper, 6 Conductors. 12-39/64 inch wide. 2-1/4 inch Tower Center Spacing, 2 inches between Hole Centers of Towers. Black PVC Coating. (12 Screws 7/8-14 x 1-1/32 inch long, Silicone Grease.

Frequently Asked Questions

What accessories are included with the SHC 500-4 SL?

The unit includes screws, rockets, and grease for installation.

What conductor sizes does the SHC 500-4 SL support?

The SHC 500-4 SL supports aluminum conductors from #2 AWG up to 500 kcmil, and #2 to #14 AWG for streetlights.

What is the insulation material of this bus bar?

The bus bar features black PVC insulation for protection and identification.

What type of connection does the SHC 500-4 SL use?

This model utilizes a set screw type connection for secure electrical joints.

What is the physical size of the SHC 500-4 SL bus bar?

The bus bar measures 8.25 inches in length and has four towers.
