ABB - Installation Products SHC 500-3 - SweetHeart, Aluminum Bus Connector - PVC Coated, 5.86 inch wide, For Cable Range #2 - 500 kcmil, Aluminum and Copper, has 3 Conductor/Tower positions. Each Tower has 1-Hole - 0.812 inch Diameter - 7/8-14 UNF-2B. Includes (3) Screws and Silicone Grease.

ABB Installation Products SHC 500-3 SweetHeart, Aluminum Bus Connector - PVC Coated, 5.86 inch wide, For Cable Range #2…

UPC: 075114249553


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

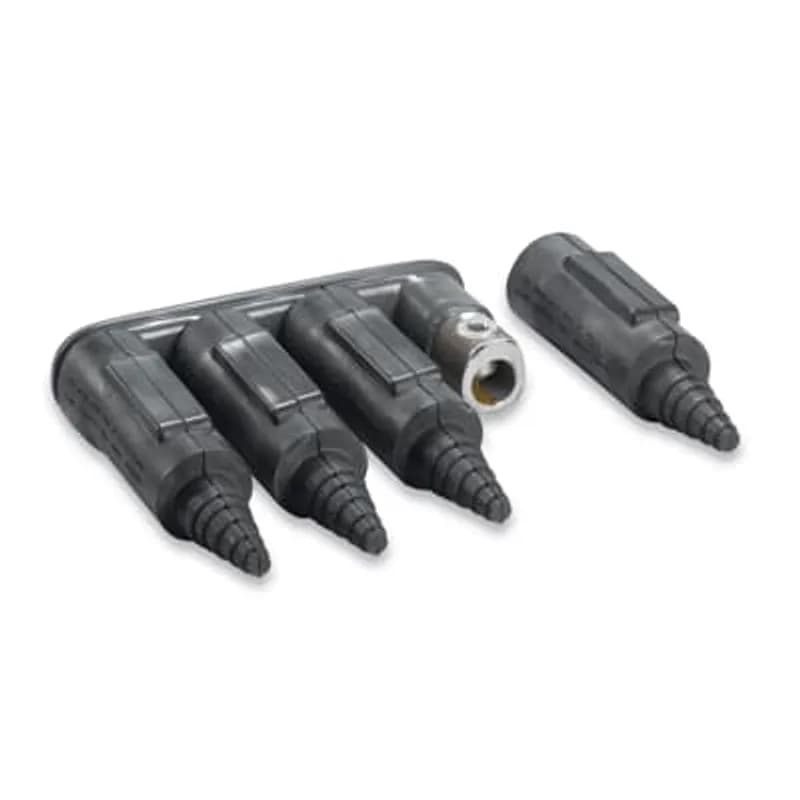

The ABB SweetHeart Aluminum Bus Connector (SKU SHC 500-3) is a high-capacity, multi-position bus connector designed for reliable electrical connections in industrial power distribution systems. This connector accommodates cable sizes ranging from #2 AWG to 500 kcmil, supporting both aluminum and copper conductors for versatile compatibility across electrical infrastructure applications. Key specifications include a 5.86-inch width and three conductor/tower positions, each featuring a single mounting hole with a 0.812-inch diameter and 7/8-14 UNF-2B thread for secure mechanical fastening. The connector is coated with durable PVC for enhanced insulation and corrosion resistance, ensuring long-term performance in demanding environments. Each unit includes three screws and silicone grease to facilitate proper installation and maintain electrical integrity. The SweetHeart series is part of ABB's Installation Products catalog, optimized for use in power distribution panels, motor control centers, and other industrial electrical systems where high-current, multi-conductor connections are required. Compatible with industry-standard conductors, this bus connector is engineered for applications requiring robust, low-resistance connections in high-power distribution networks. Its design supports efficient current transfer while minimizing heat generation, making it suitable for both new installations and retrofit projects in commercial and industrial facilities.
  • 5.86-inch width accommodates cable sizes from #2 AWG to 500 kcmil
  • Supports both aluminum and copper conductors for versatile compatibility
  • Three conductor/tower positions with 0.812-inch diameter, 7/8-14 UNF-2B mounting holes
  • PVC-coated for enhanced insulation and corrosion resistance
  • Includes three screws and silicone grease for immediate installation

Specifications

Color
Black
Conductor Range
#2 to 500 kcmil
Connection
Mechanical
Connection Type
Screw Terminal
Insulation
PVC Coating
Material
Aluminum
Material
Aluminum, Copper, PVC
Mounting Type
1-Hole - 0.812 inch Diameter - 7/8-14 UNF-2B
Number Of Conductors
3
Poles
3
Series
SweetHeart
Size
6.11 inch
Size
5.86 inch wide
Type
Insulated Multiport Bus Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.4000 L
Package Weight (Metric)
1.0890 kg
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.

UH 500-2 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 500 kcmil series - wire range 2-500 kcmil, length 3-7/8 inch, height 4-3/4 inch, outlets 2 with 2-Holes each. Black PVC Coating.
Tin Plated Copper, 90 Degree Flood Seal Mechanical Connector. Black PVC Coated, Conductor Range Copper #2-1000MCM. Includes (4) 7/8-14 x 1.312 Screws, (2) Insulating Rockets and Silicone Grease. 7-5/32 inch long.

UH 1000-90 CUAWR

Tin Plated Copper, 90 Degree Flood Seal Mechanical Connector. Black PVC Coated, Conductor Range Copper #2-1000MCM. Includes (4) 7/8-14 x 1.312 Screws, (2) Insulating Rockets and Silicone Grease. 7-5/32 inch long.
Aluminum Mechanical Splice, Double Screws, 18 Inches Long, 2 Wire, 350 kcmil - #6. Included (1) Repair Slice Cover, (4) Screws, (2) Insulating Rockets and Grease Packets.

USK 350-18 DS

Aluminum Mechanical Splice, Double Screws, 18 Inches Long, 2 Wire, 350 kcmil - #6. Included (1) Repair Slice Cover, (4) Screws, (2) Insulating Rockets and Grease Packets.
3 Outlet Flood Seal Connector. Tin Plated Copper, Conductor Range Copper #2-1000 kcmil. Length 10 inch x 2-1/8 inch wide. Includes (3) Insulating Rockets, (6) 7/8-14 x 1-5/16 inch Screws. Black PVC Coating. Silicone Grease. Instruction Sheet.

UH 1000-21 CUAWR

3 Outlet Flood Seal Connector. Tin Plated Copper, Conductor Range Copper #2-1000 kcmil. Length 10 inch x 2-1/8 inch wide. Includes (3) Insulating Rockets, (6) 7/8-14 x 1-5/16 inch Screws. Black PVC Coating. Silicone Grease. Instruction Sheet.
Tin Plated Copper, 2 Outlet Flood Seal Connector with StreetLight. Conductor Range Copper #2-500 kcmil, Length without Rockets 11-1/4 inches. Includes (2) Insulating Rockets with Streetlight option, (4) 7/8-14 x 1.0 Screws, (2) 9/16-18 x .75 Screws and has Silicone Grease packet.

UH 500-11 SL CUAWR

Tin Plated Copper, 2 Outlet Flood Seal Connector with StreetLight. Conductor Range Copper #2-500 kcmil, Length without Rockets 11-1/4 inches. Includes (2) Insulating Rockets with Streetlight option, (4) 7/8-14 x 1.0 Screws, (2) 9/16-18 x .75 Screws and has Silicone Grease packet.
SweetHeart, Aluminum Bus Connector, #6 - 350 kcmil, Aluminum and Copper, 5 Conductors, 8.875 inch x 2.944 inch, with Rockets, Screws and Silicone Grease. Black PVC Coating

SHC 5-6725

SweetHeart, Aluminum Bus Connector, #6 - 350 kcmil, Aluminum and Copper, 5 Conductors, 8.875 inch x 2.944 inch, with Rockets, Screws and Silicone Grease. Black PVC Coating
Aluminum Single Hook, Compression Lug, For Wire Size 2/0 Stranded - Compressed - Compact, Dies TX 76 249 840 11A. Length 2-29/32 inch. Diameter 29/32 inch. Prefilled with Oxide Inhibitor and Gray Capped.

SHK 2/0

Aluminum Single Hook, Compression Lug, For Wire Size 2/0 Stranded - Compressed - Compact, Dies TX 76 249 840 11A. Length 2-29/32 inch. Diameter 29/32 inch. Prefilled with Oxide Inhibitor and Gray Capped.
Aluminum Single Hook, Compression Lug, For Wire Size #2 Stranded - Compressed - Compact, Dies TX 76 249 840 11A. Length 2-29/32 inch. Diameter 29/32 inch. Prefilled with Oxide Inhibitor and Red Capped.

SHK 2

Aluminum Single Hook, Compression Lug, For Wire Size #2 Stranded - Compressed - Compact, Dies TX 76 249 840 11A. Length 2-29/32 inch. Diameter 29/32 inch. Prefilled with Oxide Inhibitor and Red Capped.

How to Install Sweetheart SHC 500 Connectors

This guide provides step-by-step instructions for the proper installation and wiring of Sweetheart SHC 500 Connectors, ensuring a secure and reliable electrical connection.

Estimated time: 30m

Tools needed:

Wire brush, Torque wrench

Supplies needed:

Sweetheart SHC 500 Connector, Electrical cable, Silicone grease, Correct cut-off ring

  1. Prepare the Connector

    WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules. Begin by removing the insulating sleeve from the connector outlet. Then, select the correct cut-off ring that matches the cable size you are using.

  2. Cut the Rocket Sleeve

    Carefully cut off the rocket sleeve at the tip of the arrow, ensuring that the correct cable size indication remains visible on the opened rocket.

  3. Strip Cable Insulation

    Strip approximately 2-1/4 inches of insulation from the end of the cable, exposing the conductor.

  4. Bevel Insulation (Optional)

    For best practice, bevel the cut edge of the cable insulation. While preferred, this step is not strictly necessary for installation.

  5. Clean the Conductor

    Thoroughly wire brush the bare conductor to remove any oxides from its surface, ensuring optimal electrical contact.

  6. Lubricate and Position Rocket

    Wipe the cable clean. Apply silicone grease to the prepared cable end. Then, slide the cut rocket over the prepared cable.

  7. Insert Conductor

    Insert the prepared conductor into the connector outlet. Ensure that a maximum of 1/8 inch of bare conductor is showing after insertion.

  8. Seat the Rocket Sleeve

    Slide the rocket sleeve over the outlet and onto the PVC shoulder. Continue sliding until the rocket firmly butts against the connector bar.

  9. Secure with Set Screws

    Tighten the set screws down onto the conductors using a torque wrench. Refer to the torque table for the recommended values based on wire size: #6 to #4 (120 in.-lbs. or 10 ft.-lbs.), #2 to 350 MCM (240 in.-lbs. or 20 ft.-lbs.), 400 to 500 MCM (360 in.-lbs. or 30 ft.-lbs.).
