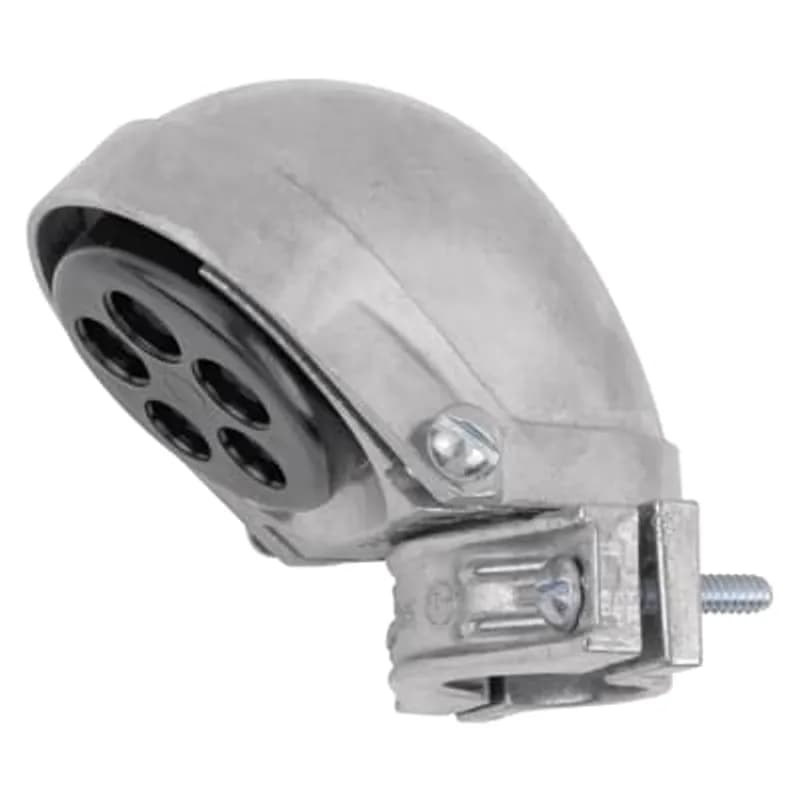

ABB - Installation Products SH 104 - Cap, Clamp-Type Service, Conduit Size 1-1/4 Inch, Number of Holes 5, Size 2(19/32 Inch) 3(5/8 Inch), Aluminum, For Rigid/Intermediate or Thinwall, Pack of 10
More images

ABB Installation Products SH 104 Cap, Clamp-Type Service, Conduit Size 1-1/4 Inch, Number of Holes 5, Size 2(19/32 Inch)…

UPC: 785991433562

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SH 104 Clamp-Type Service Cap, SKU SH 104, is an aluminum fitting designed for 1-1/4 inch conduit applications. This cap is compatible with Rigid, Intermediate, or Thinwall conduit types, ensuring versatility in electrical installations. The clamp-type service connection provides a secure and reliable method for sealing conduit ends. The design incorporates five holes, accommodating sizes 2 (19/32 inch) and 3 (5/8 inch), which are essential for grounding and mounting purposes. Constructed from durable aluminum, this service cap offers excellent corrosion resistance, making it suitable for various industrial environments. Each pack contains 10 units, providing an economical solution for projects requiring multiple fittings. The aluminum construction ensures long-term durability and reliability in demanding applications.
  • Fits 1-1/4" conduit (Rigid, Intermediate, or Thinwall)
  • 5 holes for sizes 2 (19/32") and 3 (5/8") for grounding/mounting
  • Durable aluminum construction for corrosion resistance
  • Clamp-type service connection for secure sealing
  • Sold in packs of 10 for economical bulk use

Specifications

Connection Type
Clamp-Type
Connection Type
Clamp-Type Service
Material
Aluminum
Size
1-1/4 Inch
Size
1-1/4
Size
1-1/4 Inch Conduit, 2(19/32 Inch) x 3(5/8 Inch)
Size
1-1/4 Inch Conduit, Size 2 (19/32 Inch), Size 3 (5/8 Inch)
Standard
UL E13938
Standard
UL E13938 / UL E13938
Type
Cable Caps
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.380 L
Package Weight (Metric)
0.172 kg
