Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*

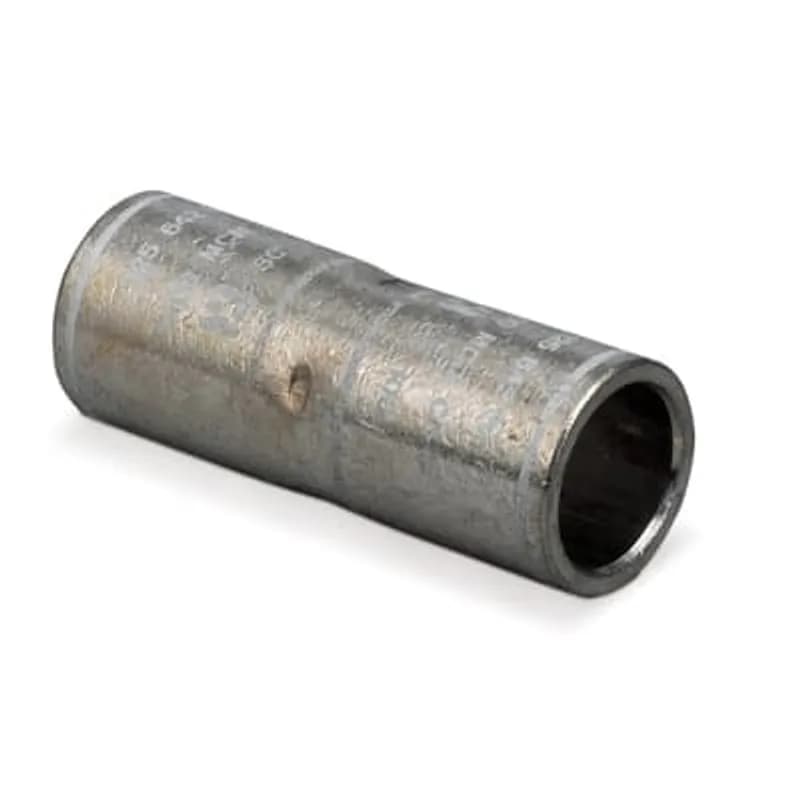

Overview
- UL and CSA listed for safety compliance
- Tin-plated copper for corrosion resistance
- 600 kcmil wire size compatibility
- 2-7/8" length with no center stop
- Compatible with dies 96 and 1 1/8-1" dimple tooling
Specifications
Application | Heavy Duty Applications |
Conductor Range | 600 kcmil |
Connection | Compression |
Connection Type | Straight Splice |
Finish | Tin-Plated |
Insulation | None |
Material | Tin Plated Copper |
Material | Copper |
Number Of Conductors | 2 |
Series | SC |
Size | 2.937 |
Size | 600 kcmil CU |
Special Features | Made from electrolytic seamless copper tubing. Dimpled center stop equalizes cable insertion. Tin plated to resist corrosion. All Splices marked with conductor sizes and die references for easy identification |
Type | Compression Splice |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.4200 L |
Package Weight (Metric) | 0.1910 kg |
GL600NB
2 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 600 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
CSP600
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 600 kcmil, Tin Plated, Die Color Code Green
SC 500
Tin Plated Copper Straight Splices - standard barrel, wire size 500 kcmil CU, Length 2-7/8 inch. Installing Dies TH, 87, 251. Dimple. No Center Stop. CSA. UL listed.SC 6
Tin Plated Copper Straight Splices - standard barrel, wire size 6 Stranded CU, Length 1-3/4 inch. Installing Dies TE, 24. Dimple. No Center Stop. CSA. UL listed.
U 1 B 61
Aluminum 2 inch Service Entrance Compression Splice for Wire Range, End A: 6 ACSR, 5 an 6 Stranded, 4 Solid, Blue, End B: 10 Stranded, 8 Solid, Brown, Die: 5/8, TU, BG, CSA-22. For AL to AL or AL to CU Conductors. 2 inch x 5/8 inch Diameter. Oil Stop.SC 8
Tin Plated Copper Straight Splices - standard barrel, wire size 8 Stranded CU, Length 1-1/16 inch. Installing Dies TC, 21, 236. Dimple. No Center Stop. CSA. UL listed.U 1 B 1010
Aluminum 2 inch Service Entrance Compression Splice for Wire Range, End A: 1/0 ACSR, 1/0 Stranded, Yellow, End B: 1/0 ACSR, 1/0 Stranded, Yellow, Die: 5/8, TU, BG, CSA-22. For AL to AL or AL to CU Conductors. 2 inch x 5/8 inch Diameter. Oil Stop.Frequently Asked Questions
What wire size does the SC 600 support?
The SC 600 is designed for 600 kcmil copper wire.
Is the SC 600 UL and CSA certified?
Yes, the SC 600 is UL and CSA listed for electrical safety.
What is the length of the SC 600 splice?
The SC 600 has a length of 2-7/8 inches.
Does the SC 600 have a center stop?
No, the SC 600 does not include a center stop.
What installing dies are compatible with the SC 600?
The SC 600 works with installing dies 96 and 1 1/8-1 inch dimple tooling.
