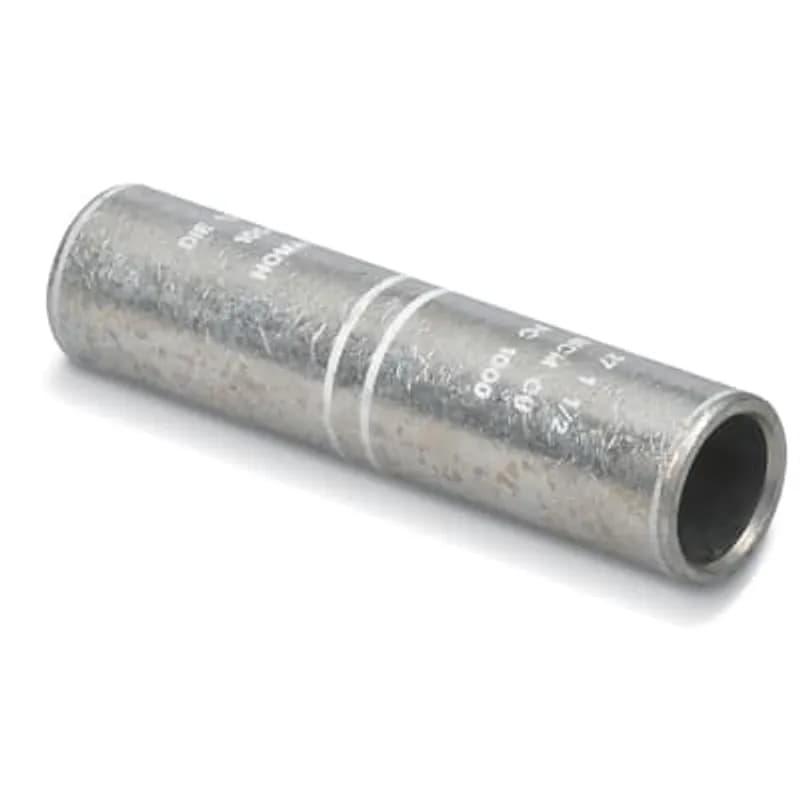

ABB - Installation Products SC 4/0 NCS - Tin Plated Copper Compression Splice, 4/0 Stranded Copper, Tin Plated. No Center Stop. No Dimple. Length 2-3/16 inch. Bore Full Length of item. Dies TW-TY 54 243.

ABB Installation Products SC 4/0 NCS Tin Plated Copper Compression Splice, 4/0 Stranded Copper, Tin Plated. No Center Stop.…

UPC: 783786751396


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SC 4/0 NCS is a tin-plated copper compression splice designed for 4/0 stranded copper conductors. This splice, SKU SC 4/0 NCS, features a full bore length of 2-3/16 inches, ensuring complete conductor engagement and maximizing contact surface area for reduced resistance and heat. The absence of a center stop and dimple provides flexibility during insertion and alignment, simplifying the installation process. The tin plating offers enhanced conductivity and corrosion resistance, protecting the splice against environmental degradation and extending its service life. This splice is compatible with dies TW-TY 54 and 243, making it suitable for power distribution and critical electrical connections. It is an effective solution for joining 4/0 AWG stranded copper conductors in infrastructure applications, maintaining electrical circuit integrity, preventing power loss, and ensuring operational safety. The full bore design facilitates easier crimping and maintains a secure connection.
  • Tin-plated copper construction for conductivity and corrosion resistance
  • Designed for 4/0 AWG stranded copper conductors
  • Full bore length of 2-3/16 inches for maximum conductor engagement
  • No center stop or dimple for flexible insertion and alignment
  • Compatible with TW-TY 54 and 243 dies

Specifications

Application
Heavy Duty Applications
Conductor Range
4/0 STR Copper AWG
Connection
Compression
Connection Type
Compression Splice
Finish
Tin-Plated
Insulation
None
Material
Copper
Material
Tin Plated Copper
Number Of Conductors
2
Series
TW-TY 54 243
Size
2.187
Size
4/0 Stranded Copper
Special Features
Made from electrolytic seamless copper tubing. Dimpled center stop equalizes cable insertion. Tin plated to resist corrosion. All Splices marked with conductor sizes and die references for easy identification
Type
Compression Splice
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Tin Plated Copper Straight Splices - standard barrel, wire size 4/0 Stranded CU, Length 2-1/8 inch. Installing Dies TW-TY, 54, 243. Dimple. No Center Stop. CSA. UL listed.

SC 4/0

Tin Plated Copper Straight Splices - standard barrel, wire size 4/0 Stranded CU, Length 2-1/8 inch. Installing Dies TW-TY, 54, 243. Dimple. No Center Stop. CSA. UL listed.
Stranded Bi-Metallic Pin Terminal 1 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

PT1

Stranded Bi-Metallic Pin Terminal 1 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Panduit BS18-C Non-Insulated Butt Splice

BS18-C

Panduit BS18-C Non-Insulated Butt Splice
Aluminum Compression Splice, 500 kcmil AL-CU, Dual Rated Aluminum and Copper, Installing Dies 140H, 301, 342, 1 1/2. Length 6-3/16 inch. Oil Stop. Oxide Inhibitor. Pink Caps.

SACL 500

Aluminum Compression Splice, 500 kcmil AL-CU, Dual Rated Aluminum and Copper, Installing Dies 140H, 301, 342, 1 1/2. Length 6-3/16 inch. Oil Stop. Oxide Inhibitor. Pink Caps.
Tin-Plated Copper Straight Splices - long barrel, wire size #1 Stranded CU. Dies TB, 37. Length 2-7/8 inch. Dimpled Center Stop.

C 1-HM

Tin-Plated Copper Straight Splices - long barrel, wire size #1 Stranded CU. Dies TB, 37. Length 2-7/8 inch. Dimpled Center Stop.
Tin-Plated Copper Straight Splices - long barrel, wire size 1500 kcmil CU. Dies 150, 31, 1 3/4. Length 6-1/2 inch. Dimpled Center Stop.

C 1500

Tin-Plated Copper Straight Splices - long barrel, wire size 1500 kcmil CU. Dies 150, 31, 1 3/4. Length 6-1/2 inch. Dimpled Center Stop.
Tin-Plated Copper Straight Splices - long barrel, wire size #2 Stranded CU. Dies TL-TN, 33, 162, 3/8. Length 2-5/8 inch. Dimpled Center Stop. CSA. UL Listed.

C 2-HM

Tin-Plated Copper Straight Splices - long barrel, wire size #2 Stranded CU. Dies TL-TN, 33, 162, 3/8. Length 2-5/8 inch. Dimpled Center Stop. CSA. UL Listed.
Tin-Plated Copper Straight Splices - long barrel, wire size #3 Stranded CU. Dies TL-TN, 33, 162, 3/8. Length 2-11/16 inch. Dimpled Center Stop. CSA. UL Listed.

C 3-HM

Tin-Plated Copper Straight Splices - long barrel, wire size #3 Stranded CU. Dies TL-TN, 33, 162, 3/8. Length 2-11/16 inch. Dimpled Center Stop. CSA. UL Listed.
