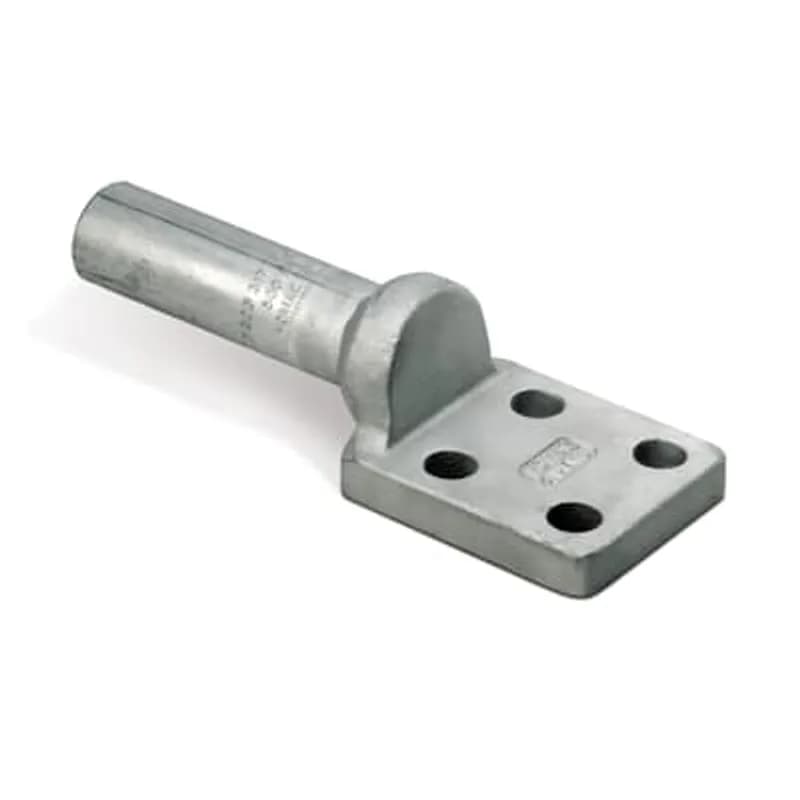

ABB - Installation Products SAM 600-4 NTN - Tin Plated Aluminum Four-Hole NEMA Lugs, common die series, concentric 556.5-600, installing dies 1 5/16, 300, 14A, 106, 317. 8-1/4 inch overall length, 3-5/16 inch Barrel bore depth, 3 inch wide pad. Oxide Inhibitor. Dual Rated for Aluminum and Copper Conductors
ABB - Installation Products

SAM 600-4 NTN

UPC: 783786748938

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB SAM 600-4 NTN tin-plated aluminum NEMA lugs provide a reliable termination solution for 556.5 to 600 MCM conductors. Designed for compatibility with common die series, these lugs feature a 3-5/16 inch barrel bore depth and a 3-inch wide pad for secure conductor attachment. The 8-1/4 inch overall length ensures adequate clearance for installation in confined spaces. Dual-rated for both aluminum and copper conductors, the SAM 600-4 NTN eliminates the need for separate lug types, reducing inventory complexity. The oxide inhibitor coating prevents corrosion, extending service life in harsh environments. Compatible with installing dies 1 5/16, 300, 14A, 106, and 317, this lug supports standard crimping tools for consistent, high-integrity terminations. Ideal for industrial power distribution, motor control centers, and renewable energy systems where high-current conductors require durable, code-compliant terminations.
  • Tin-plated aluminum construction for corrosion resistance
  • Dual-rated for aluminum and copper conductors
  • 8.25-inch overall length with 3-5/16-inch barrel bore depth
  • 3-inch wide pad for secure conductor attachment
  • Compatible with dies 1 5/16, 300, 14A, 106, and 317

Specifications

Connection
Compression
Finish
Tin Plated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Size
8-1/4 inch overall length, 3-5/16 inch Barrel bore depth, 3 inch wide pad
Special Features
Tin Plated. 4-Hole NEMA Pad. Oxide Inhibitor
Type
Compression Lug Four Hole
Wire Size
Concentric 556.5 to 600 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.

PH10-38R-E

Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
The ABB Installation Products 54965BE10PH is a premium industrial component designed for robust and efficient electrical installations. Engineered to meet stringent industry standards, this product ensures reliable performance in demanding environments. Its durable construction and precise engineering make it ideal for a wide range of industrial applications, including power distribution, automation, and control systems. Trusted by professionals worldwide, ABB's commitment to quality and innovation is evident in this product, delivering dependable solutions for your electrical needs.

54965BE10PH

The ABB Installation Products 54965BE10PH is a premium industrial component designed for robust and efficient electrical installations. Engineered to meet stringent industry standards, this product ensures reliable performance in demanding environments. Its durable construction and precise engineering make it ideal for a wide range of industrial applications, including power distribution, automation, and control systems. Trusted by professionals worldwide, ABB's commitment to quality and innovation is evident in this product, delivering dependable solutions for your electrical needs.
Rectangular Connector Housings, Wire-to-Board / Wire-to-Wire / Wire-to-Panel, 25 Position, .2 in [5.08 mm] Centerline, 5 Row, Polyester, AMP Metrimate

211150-1

Rectangular Connector Housings, Wire-to-Board / Wire-to-Wire / Wire-to-Panel, 25 Position, .2 in [5.08 mm] Centerline, 5 Row, Polyester, AMP Metrimate

Frequently Asked Questions

What is the barrel bore depth of the SAM 600-4 NTN?

The barrel bore depth is 3-5/16 inches, ensuring secure conductor retention.

What conductor sizes are compatible with the SAM 600-4 NTN?

The lug is designed for 556.5 to 600 MCM conductors, supporting both aluminum and copper types.

What tools are required to install the SAM 600-4 NTN?

The lug is compatible with installing dies 1 5/16, 300, 14A, 106, and 317, typically used with standard crimping tools.

Does the SAM 600-4 NTN require special handling for aluminum conductors?

No, the dual-rated design allows direct use with aluminum conductors without additional preparation.

Is the SAM 600-4 NTN suitable for outdoor installations?

The tin plating and oxide inhibitor provide corrosion resistance, making it suitable for outdoor and harsh environments.
