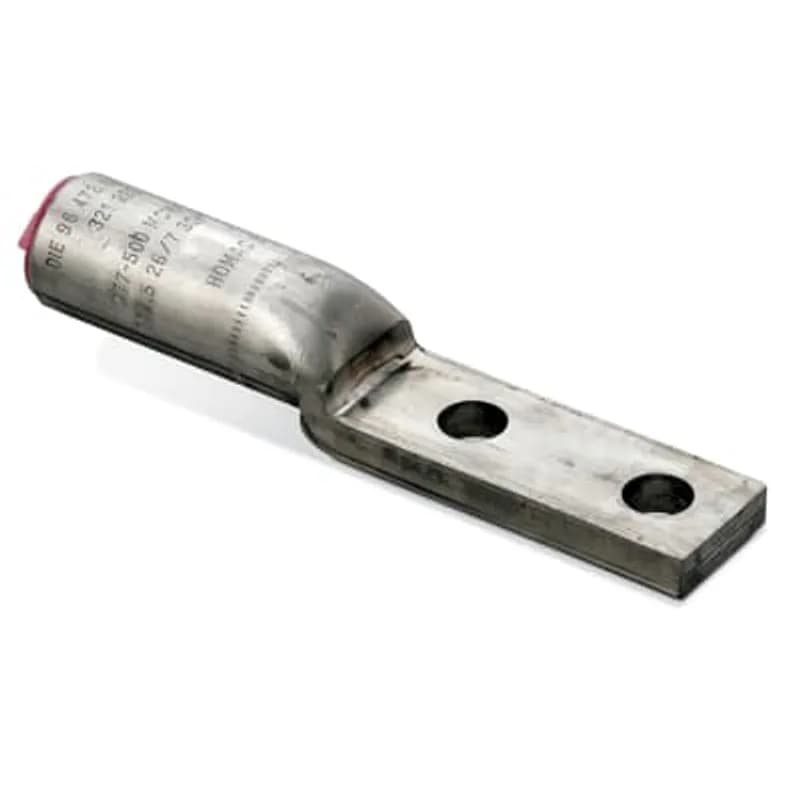

ABB - Installation Products SA 8 NTN - Tin-Plated Aluminum Two-Hole NEMA Lugs - straight lug, #8 Stranded, #6 Solid. Installing dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/8 inch. Pad 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-15/32 inch. Oxide Inhibitor. Green Cap. Dual Rated for Aluminum and Copper Conductors

ABB Installation Products SA 8 NTN Tin-Plated Aluminum Two-Hole NEMA Lugs - straight lug, #8 Stranded, #6 Solid. Installing…

UPC: 783786750405


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SA 8 NTN is a tin-plated aluminum two-hole lug designed for reliable electrical connections. This lug is dual-rated, meaning it is suitable for use with both aluminum and copper conductors, offering versatility in installation. It accommodates #8 stranded and #6 solid conductors, ensuring compatibility with common wiring sizes. Key specifications include a straight lug configuration with a length of 5-1/8 inches. The pad measures 7/8 inch wide by 3-1/16 inches long, with a thickness of 7/32 inch. It features two 9/16 inch diameter holes spaced 1-3/4 inches apart on center, facilitating secure mounting. The barrel length is 1-15/32 inches. The SA 8 NTN comes with an integrated oxide inhibitor and a green cap, which aids in identification and protection. Installation is supported by a range of dies, including TU, 52, BG, 243, 5/8, and CSA22. This lug is manufactured by ABB - Installation Products, SKU SA 8 NTN. Its construction and dual-rating make it a practical choice for electrical termination applications where both aluminum and copper conductors are present.
  • Tin-plated aluminum construction for corrosion resistance.
  • Dual-rated for use with both aluminum and copper conductors.
  • Accommodates #8 stranded and #6 solid conductors.
  • Two 9/16 inch diameter holes on 1-3/4 inch center for secure mounting.
  • Includes oxide inhibitor and green cap for protection and identification.

Specifications

Application
Designed for General Applications and for Installation on 125-N Series Insulated Buses
Connection
Compression
Finish
Tin Plated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Size
Pad Length 3-3/16 inch, width 7/8 inch
Special Features
Dual-Rated for use with Aluminum and Copper Conductors. Made from Aluminum for High Strength and High Conductivity. Connector Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with conductor sizes and die references
Standard
ANSI C119.4
Type
Compression Lug Two Hole
Wire Size
#8 STR AWG , #6 SOL AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1400 L
Package Weight (Metric)
0.0640 kg
Aluminum One-Hole Lugs - Common Die Series - Straight Lug, Wire Range #8 Stranded, #6 Solid. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-5/16 inch long x 13/63 inch thick. (1) 13/32 inch Diameter hole. Barrel 1-19/64 inch. Oxide Inhibitor. Blue Cap. For Use with 3/8 inch Bolt. Dual Rated for Aluminum and Copper Conductors

SA 8-38

Aluminum One-Hole Lugs - Common Die Series - Straight Lug, Wire Range #8 Stranded, #6 Solid. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-5/16 inch long x 13/63 inch thick. (1) 13/32 inch Diameter hole. Barrel 1-19/64 inch. Oxide Inhibitor. Blue Cap. For Use with 3/8 inch Bolt. Dual Rated for Aluminum and Copper Conductors
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 1/0 Stranded - ACSR, 2/0 Compressed - Compact. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-31/32 inch long. Oxide Inhibitor. Yellow Cap Dual Rated for Aluminum and Copper Conductors

SAK 1/0 NTN

Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 1/0 Stranded - ACSR, 2/0 Compressed - Compact. Installing dies TX, 76, 249, 840, 845, 11A. Length 5-3/4 inch. Pad 1-1/4 inch wide x 3-1/8 inch long x 23/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-31/32 inch long. Oxide Inhibitor. Yellow Cap Dual Rated for Aluminum and Copper Conductors
Tin Plated Copper Two-Hole Belled-End NEMA Lugs. wire size 750 kcmil CU. Installing Dies 106, 24, 1 5/16. Length 7 inch. Pad 1-3/4 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 2-13/16 inch.

L 750 NB

Tin Plated Copper Two-Hole Belled-End NEMA Lugs. wire size 750 kcmil CU. Installing Dies 106, 24, 1 5/16. Length 7 inch. Pad 1-3/4 inch wide x 3-1/8 inch long x 9/32 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 2-13/16 inch.
Tin Plated Copper Two-Hole Straight NEMA Lugs. wire size # 3 Stranded CU. Installing Dies 33, 162, 3/8, 10. Length 4-3/4 inch. Pad 3/4 inch wide x 3 inch long x 53/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 1-5/16 inch.

L 3 N

Tin Plated Copper Two-Hole Straight NEMA Lugs. wire size # 3 Stranded CU. Installing Dies 33, 162, 3/8, 10. Length 4-3/4 inch. Pad 3/4 inch wide x 3 inch long x 53/64 inch thick. (2) 9/16 inch holes on 1-3/4 inch center. Barrel 1-5/16 inch.
Aluminum Meter Socket Lug - One-Hole - for 3/8 inch bolt, Wire Range #6 Stranded - Compressed, #6 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 27/64 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors

SAKM 6-38

Aluminum Meter Socket Lug - One-Hole - for 3/8 inch bolt, Wire Range #6 Stranded - Compressed, #6 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 27/64 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors
Aluminum Compression Lug, Wire Range 600 kcmil Stranded, 556.5 Stranded, 545 ACAR AL-CU. Installing Dies 106, 300, 317, 1 5/16, 15A, 6020AH. Length 8-1/4 inch. Welded Pad 3 inch wide x 3 inch long x 5/8 inch thick. (4) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 4-3/8 inch long. Uses Bolt size 1/2 inch, Oxide Inhibitor. Black Cap.

SAM 600-4 N

Aluminum Compression Lug, Wire Range 600 kcmil Stranded, 556.5 Stranded, 545 ACAR AL-CU. Installing Dies 106, 300, 317, 1 5/16, 15A, 6020AH. Length 8-1/4 inch. Welded Pad 3 inch wide x 3 inch long x 5/8 inch thick. (4) 9/16 inch diameter holes on 1-3/4 inch centers. Barrel 4-3/8 inch long. Uses Bolt size 1/2 inch, Oxide Inhibitor. Black Cap.
Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 350 kcmil Aluminum. Installing dies TX, 76, 249, 840, 11A. Length 6-1/4 inch. Pad 1-7/32 inch wide x 3-3/32 inch long x 19/64 inch thick. (2) 9/16 inch diameter holes on 1/3-4 inch center. Barrel 2-1/16 inch long. Oxide Inhibitor. Red Cap.

SAK 350 NTN

Tin Plated Aluminum Two-Hole NEMA Lugs. Wire Range 350 kcmil Aluminum. Installing dies TX, 76, 249, 840, 11A. Length 6-1/4 inch. Pad 1-7/32 inch wide x 3-3/32 inch long x 19/64 inch thick. (2) 9/16 inch diameter holes on 1/3-4 inch center. Barrel 2-1/16 inch long. Oxide Inhibitor. Red Cap.
