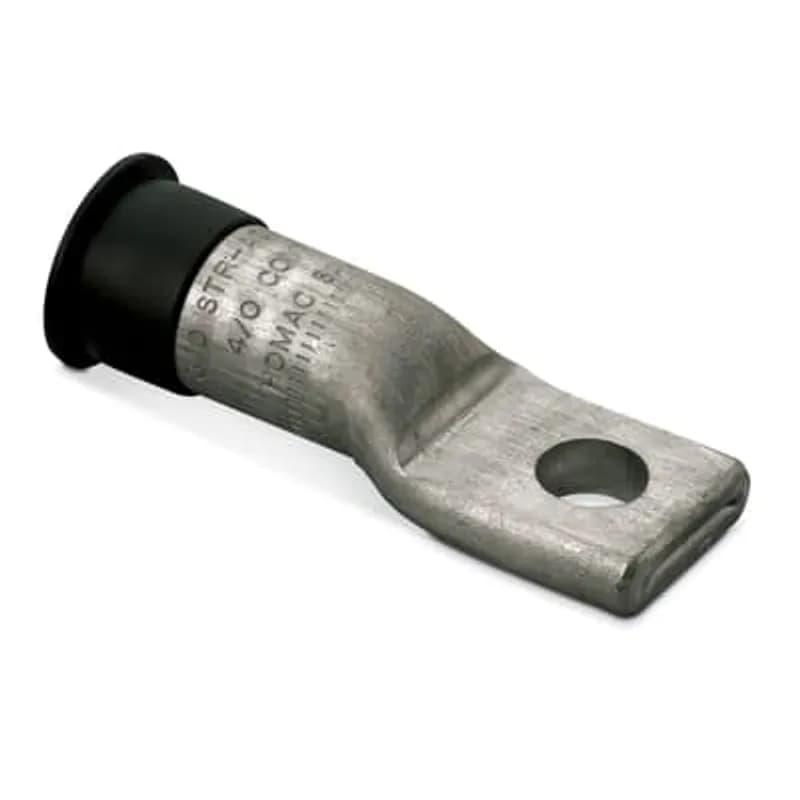

ABB - Installation Products SA 386-48 - Aluminum One-Hole Lugs - Wire Range 1 Stranded, 1/0 Compressed Compact, Installing dies 22, 5/8, BG, 243. Length 3-1/8 inch. Pad 7/8 inch wide x 1-5/16 inch long x 13/64 inch thick. (1) 17/32 inch diameter hole. Barrel 1-5/16 inch. Oxide Inhibitor. Yellow Cap. Dual Rated for Aluminum and Copper Conductors

ABB Installation Products SA 386-48 Aluminum One-Hole Lugs - Wire Range 1 Stranded, 1/0 Compressed Compact, Installing dies…

UPC: 783786750108


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SA 386-48 is a single-hole lug designed for reliable electrical connections. Constructed from aluminum, this lug is dual-rated, making it suitable for both aluminum and copper conductors. It accommodates wire sizes ranging from 1 AWG stranded to 1/0 AWG compressed compact, utilizing specific installing dies including 22, 5/8, BG, and 243 for proper crimping. The lug features a barrel length of 1-5/16 inches and a pad measuring 7/8 inch wide by 1-5/16 inch long, with a thickness of 13/64 inch. A single 17/32 inch diameter hole is provided for mounting. The SA 386-48 comes with an oxide inhibitor pre-applied and is identified by a yellow cap, indicating its specific wire size compatibility. This product is manufactured by ABB - Installation Products. Key specifications include: SKU SA 386-48, total length of 3-1/8 inches, and a pad width of 7/8 inch. The dual-rated capability ensures versatility in various electrical installations where both conductor types may be present. The integrated oxide inhibitor helps prevent corrosion and maintain electrical conductivity over time, crucial for long-term performance. The yellow cap serves as a visual indicator for correct die selection during installation, promoting proper and safe termination. This lug is suitable for applications requiring secure and durable connections for medium to large gauge conductors.
  • Dual-rated for aluminum and copper conductors
  • Accommodates 1 AWG stranded and 1/0 AWG compressed compact wire
  • Includes oxide inhibitor and yellow cap for identification
  • Pad dimensions: 7/8" W x 1-5/16" L x 13/64" T
  • Barrel length: 1-5/16", Hole diameter: 17/32"

Specifications

Application
Designed for general applications and for installation on Homac 125 series insulated buses
Color
Yellow
Connection
Compression
Connection Type
Compression
Housing Material
Aluminum
Housing Material
Aluminium
Material
Aluminum
Series
SA
Size
3-1/8 x 7/8 inch wide
Size
3-1/8 inch
Special Features
Entire conductor range installed by four dies. Lessens your die inventory. Dual-Rated for use with Aluminumand Copper Conductors. Made of Aluminum for high strength and high conductivity. Prefilled with Oxide Inhibitor to Prevent Oxidation and keep out Moisture. Marked with Conductor Sizes and Die References for Easy Identification
Standard
ANSI C119.4
Type
Compression Lug One Hole
Wire Size
#1 STR AWG , 1/0 COMPR/COMPT AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0600 L
Package Weight (Metric)
0.0270 kg
Tin Plated Aluminum Compression One-Hole NEMA Lug. Wire Range #1 Standed, 1/0 Compressed - Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-17/32 inch long x 13/64 inch thick. (1) 17/32 inch hole. Barrel 1-19/64 inch. Oxide Inhibitor. Yellow Cap. For use with 1/2 inch bolt. Dual Rated for Aluminum and Copper Conductors

SA 386-48 TN

Tin Plated Aluminum Compression One-Hole NEMA Lug. Wire Range #1 Standed, 1/0 Compressed - Compact. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-17/32 inch long x 13/64 inch thick. (1) 17/32 inch hole. Barrel 1-19/64 inch. Oxide Inhibitor. Yellow Cap. For use with 1/2 inch bolt. Dual Rated for Aluminum and Copper Conductors
2 AWG Parallel "T" Tap Connector With Cover Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.

GP-2WC

2 AWG Parallel "T" Tap Connector With Cover Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Flexible cover allows for either parallel or "T" tap wire entry. Secure snap cover eliminates need for taping. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C.
Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.

PH10-38R-E

Heat Shrink Ring Terminal 12 10 AWG, 3/8" stud size.
Aluminum Compression One-Hole NEMA Lug. Wire Range #2 Standed - Compressed, #2 and #1 Compact, #1 Solid. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-5/16 inch long x 13/64 inch thick. (1) 17/32 inch hole. Barrel 1-19/64 inch. Oxide Inhibitor. Red Cap. For use with 1/2 inch bolt. Dual Rated for Aluminum and Copper Conductors

SA 3-48

Aluminum Compression One-Hole NEMA Lug. Wire Range #2 Standed - Compressed, #2 and #1 Compact, #1 Solid. Installing Dies TU, 52, BG, 243, 5/8, CSA 22. Length 3-1/8 inch. Pad 55/64 inch wide x 1-5/16 inch long x 13/64 inch thick. (1) 17/32 inch hole. Barrel 1-19/64 inch. Oxide Inhibitor. Red Cap. For use with 1/2 inch bolt. Dual Rated for Aluminum and Copper Conductors
Aluminum Two-Hole Compression Lug, 1/0 Solid, #2 ACSR, #2-#1 Stranded, #1 Compressed-Compact, Installing Dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/4 inch. Pad 29/32 inch wide x 3-3/16 inch long x 17/64 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Barrel 1-1/2 inch. Hardware included (2) 1/2-13 x 1-1/2 inch Full Thread Galvanized Bolts, (2) 1/2-13 Galvanized Nuts, (4) 1/2 (SAE) Galvanized Flat Washers and (2) Stainless Steel 1/2 inch Belleville Washers. Dual Rated for Aluminum and Copper Conductors

SA 2 NGSH

Aluminum Two-Hole Compression Lug, 1/0 Solid, #2 ACSR, #2-#1 Stranded, #1 Compressed-Compact, Installing Dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/4 inch. Pad 29/32 inch wide x 3-3/16 inch long x 17/64 inch thick. (2) 9/16 inch Diameter holes on 1-3/4 inch centers. Barrel 1-1/2 inch. Hardware included (2) 1/2-13 x 1-1/2 inch Full Thread Galvanized Bolts, (2) 1/2-13 Galvanized Nuts, (4) 1/2 (SAE) Galvanized Flat Washers and (2) Stainless Steel 1/2 inch Belleville Washers. Dual Rated for Aluminum and Copper Conductors
Tin Plated Aluminum One-Hole - One Slot Compression Lug, Wire Range 336.4 - 350 kcmil AL-CU, 185 mm2, 400 Compact, 350 Compressed, 266.8 (26/7) and 336.4 (18/1) ACSR, Installing Dies 96, 299, 655, 321, 316, 13A, 1 1/8-1. Length 7 inch. Pad 1-1/4 inch wide x 3-3/4 inch long x 23/64 inch thick. (1) 9/16 inch diameter hole and (1) 9/32 inch Radius Slot on 1-3/4 - 2-1/4 inch centers. Barrel 2-3/16 inch. Oxide Inhibitor. Brown Cap.

SAB 350-225 STN

Tin Plated Aluminum One-Hole - One Slot Compression Lug, Wire Range 336.4 - 350 kcmil AL-CU, 185 mm2, 400 Compact, 350 Compressed, 266.8 (26/7) and 336.4 (18/1) ACSR, Installing Dies 96, 299, 655, 321, 316, 13A, 1 1/8-1. Length 7 inch. Pad 1-1/4 inch wide x 3-3/4 inch long x 23/64 inch thick. (1) 9/16 inch diameter hole and (1) 9/32 inch Radius Slot on 1-3/4 - 2-1/4 inch centers. Barrel 2-3/16 inch. Oxide Inhibitor. Brown Cap.
Copper Lug, Bottom of Pad - Serrated, Top of Pad - Flat, No Holes In Pad. Pad 11/16 inch wide x 5/8 inch long x 7/64 inch thick at top of Serrations. Barrel 11/16 inch. For Copper Conductors

RTL 1

Copper Lug, Bottom of Pad - Serrated, Top of Pad - Flat, No Holes In Pad. Pad 11/16 inch wide x 5/8 inch long x 7/64 inch thick at top of Serrations. Barrel 11/16 inch. For Copper Conductors
Copper Lug, Bottom of Pad - Serrated, Top of Pad - Flat, No Holes In Pad. Pad 21/32 inch wide x 5/8 inch long x 7/64 inch thick at top of Serrations. Barrel 11/16 inch. For Copper Conductors.

RTL 2

Copper Lug, Bottom of Pad - Serrated, Top of Pad - Flat, No Holes In Pad. Pad 21/32 inch wide x 5/8 inch long x 7/64 inch thick at top of Serrations. Barrel 11/16 inch. For Copper Conductors.
