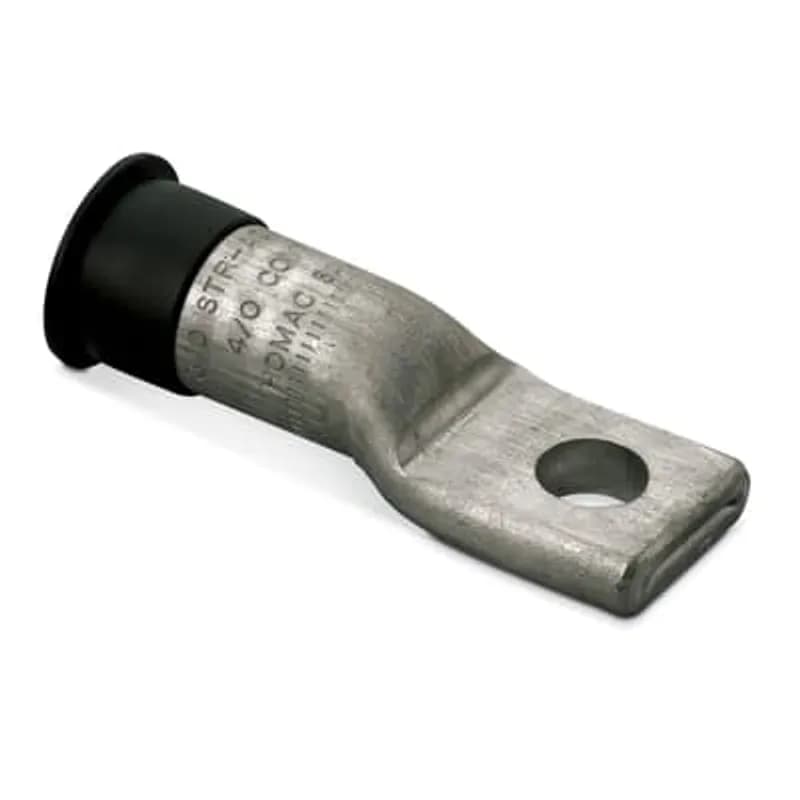

SA 3-48 TN

The lug has a length of 3-1/8 inches.

The lug is designed for use with a 1/2 inch bolt.

Yes, the lug is dual-rated for both aluminum and copper conductors.

The pad measures 55/64 inch wide, 1-13/16 inch long, and 13/64 inch thick.

The lug has a 17/32 inch hole for bolt installation.

The lug supports #2 stranded, #2 and #1 compact, and #1 solid wire ranges.

Yes, the lug features an oxide inhibitor coating to prevent corrosion.

Compatible installation dies include TU, 52, BG, 243, 5/8, and CSA 22.
