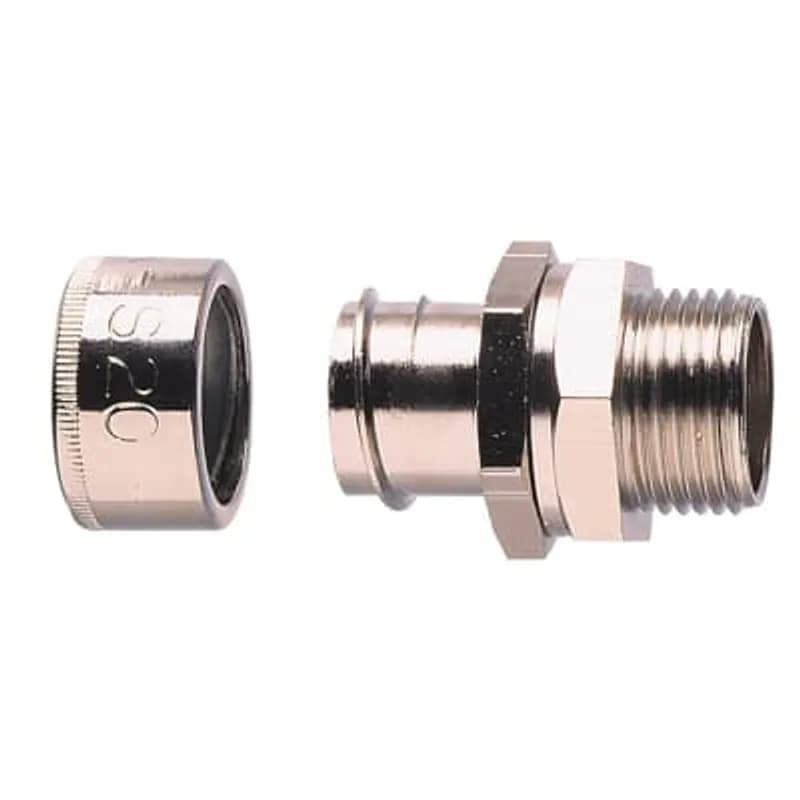

ABB - Installation Products S20/PG16/B - 1/2 Inch Nickel Plated Brass Straight Fitting with Swivel External Threads, PG Thread Size PG16
ABB - Installation Products

S20/PG16/B

UPC: 786210261478

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB 1116M Brass ME Enlarger is a high-quality industrial component engineered for precision and reliability in demanding applications. Constructed from durable brass, this enlarger offers exceptional corrosion resistance and longevity, making it suitable for challenging environments. It features a precise thread conversion from PG 11.0 x 6.5mm external to PG 16 x 8.5mm internal, ensuring a secure and seamless integration into various mechanical and electrical systems. This ME Enlarger is ideal for applications requiring robust thread adaptation, such as in industrial machinery, automation systems, and control cabinets. Its robust construction guarantees consistent performance and ease of installation, meeting stringent industry standards. Trust ABB Installation Products for precision-engineered solutions that deliver superior durability and operational efficiency. The ABB 1116M is designed to provide a reliable connection point, facilitating complex system configurations with confidence. Key Features: * Durable brass construction for enhanced longevity. * Precise thread dimensions: PG 11.0 x 6.5mm (outside) to PG 16 x 8.5mm (inside). * Excellent corrosion resistance for industrial environments. * Designed for secure and reliable connections in mechanical and electrical systems. * Ideal for industrial machinery, automation, and control applications.
  • High-quality brass construction for durability and corrosion resistance.
  • Precision thread conversion: PG 11.0 x 6.5mm (outside) to PG 16 x 8.5mm (inside).
  • Engineered for reliable performance in demanding industrial environments.
  • Facilitates secure connections in mechanical and electrical systems.
  • Ideal for use in industrial machinery, automation systems, and control applications.

Specifications

Application
For Insertion into Threaded Entries or Knockout to Connect Conduit
Cable Entry
PG16 Thread
Color
Metallic
Connection
Straight
Finish
Nickel Plated
Material
Brass
Size
1/2 Inch
Type
Conduit Fitting with PG Threads
Package Dimensions (L x W x H)
1 IN x 5.9 IN x 7.87 IN
Package Dimensions (L x W x H)
2.54 cm x 14.986 cm x 19.9898 cm
Package Weight (Imperial)
0.110 L
Package Weight (Metric)
0.050 kg
