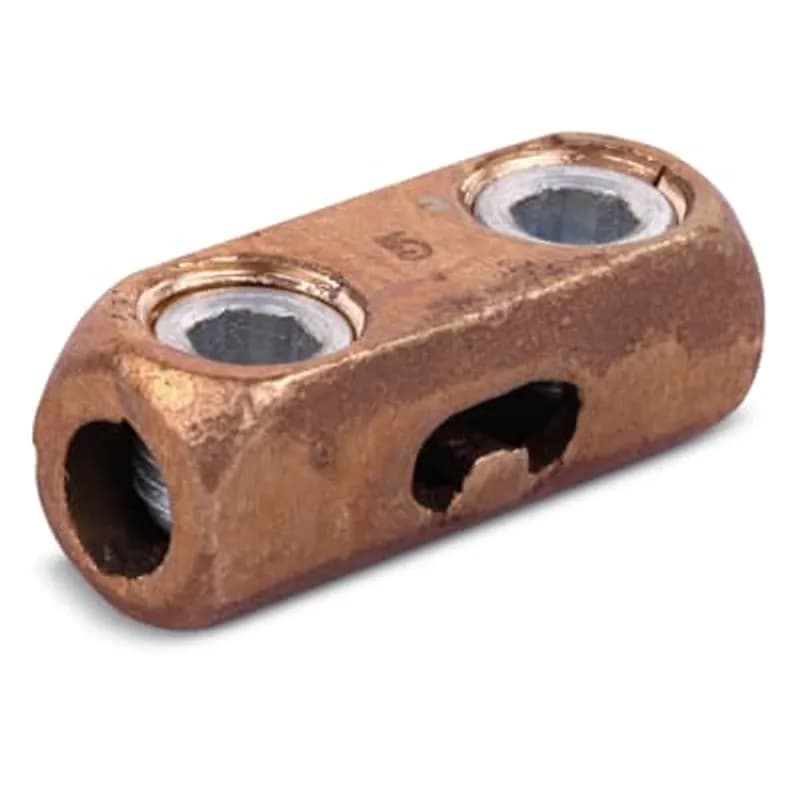

ABB - Installation Products S100BB - Type S - Copper End-to-End Splice Connector for Conductor Range 4 Sol.-1 Str.

ABB Installation Products S100BB Type S - Copper End-to-End Splice Connector for Conductor Range 4 Sol.-1 Str.

UPC: 783786130351

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Type S Copper End-to-End Splice Connector (SKU: S100BB) is designed for reliable electrical connections in industrial applications. This connector facilitates the joining of conductors, ensuring continuity and signal integrity. It is specifically engineered for copper conductors, accommodating a range of sizes from 4 AWG solid to 1 AWG stranded. This versatility makes it suitable for various wiring configurations encountered in electrical installations. The end-to-end design allows for a direct and secure splice, minimizing connection points and potential failure modes. Constructed from copper, it offers excellent electrical conductivity, crucial for efficient power transmission and signal transfer. The Type S designation indicates a specific product series within ABB's Installation Products catalog, known for its adherence to established electrical standards. This connector is a fundamental component for electricians and maintenance professionals working with copper wiring systems. Its application is direct and functional, providing a secure mechanical and electrical bond between conductor segments. The UNSPSC code 39121408 classifies this product under electrical connectors, highlighting its role in electrical infrastructure. When specifying components for electrical circuits, the precise conductor range compatibility, as provided (4 Sol.-1 Str.), is critical
  • ABB Type S Copper End-to-End Splice Connector
  • Accommodates conductor range: 4 AWG Solid to 1 AWG Stranded
  • Constructed from copper for excellent conductivity
  • Designed for reliable electrical connections
  • Suitable for industrial wiring applications

Specifications

Material
Copper
Special Features
Cast of high strength copper alloy
Standard
UL E9809
Type
Copper Connectors
Package Dimensions (L x W x H)
5 IN x 3.37 IN x 6.5 IN
Package Dimensions (L x W x H)
12.7 cm x 8.5598 cm x 16.51 cm
Package Weight (Imperial)
0.1200 L
Package Weight (Metric)
0.0540 kg
