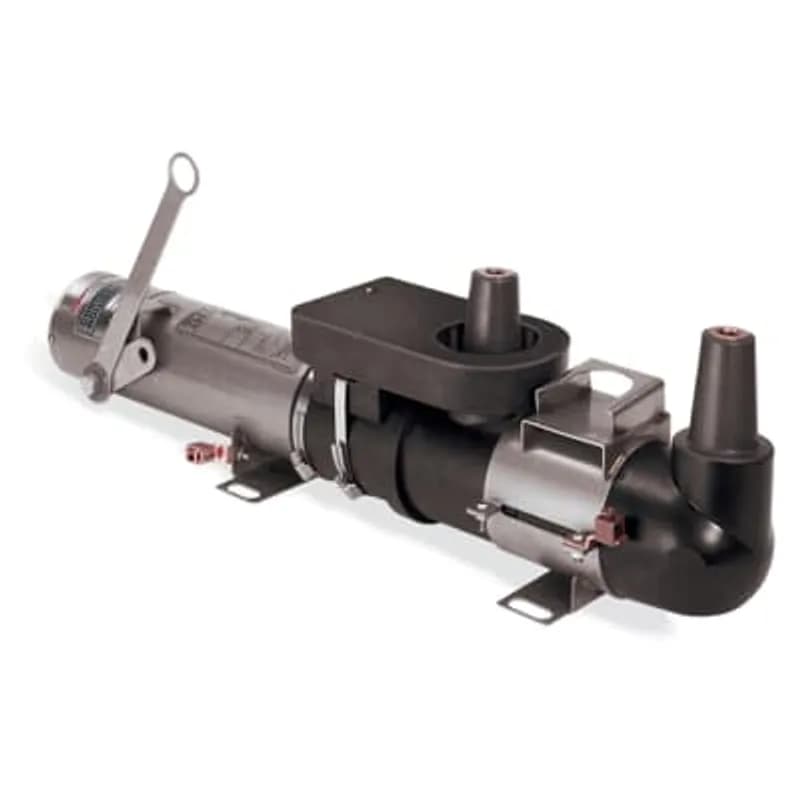

ABB - Installation Products RMVI121276AB638040 - Riser Pole Molded Vacuum Interrupter, Single-Phase, 27kV, 600 Amp Termination, Air Bushings (for Riser Pole Units), External 80 Control with Selectable Single/Three-Phase Trip Function (to be used on (3) Single-Phase MVI Mechanisms)

ABB Installation Products RMVI121276AB638040 Riser Pole Molded Vacuum Interrupter, Single-Phase, 27kV, 600 Amp Termination, Air…

UPC: 783786669721


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Riser Pole Molded Vacuum Interrupter (MVI), SKU RMVI121276AB638040, is a single-phase unit designed for critical electrical distribution applications. It features a 27kV rating and a 600 Amp termination capacity, ensuring reliable operation under significant load. The unit is equipped with air bushings specifically for riser pole configurations, facilitating straightforward installation and connection within overhead or underground distribution systems. A key operational feature is the external 80 control mechanism, which offers selectable single-phase or three-phase trip functionality. This flexibility allows for precise protection schemes tailored to specific network requirements. It is important to note that this single-phase MVI mechanism is intended for use with three separate single-phase MVI mechanisms to achieve three-phase protection. This modular approach provides adaptability for various system designs and maintenance strategies. Manufactured by ABB - Installation Products, this interrupter is built to meet the demands of utility and industrial power distribution. Its molded vacuum interrupter technology provides a robust and maintenance-free switching solution for circuit interruption. The 39121639 UNSPSC code categorizes this product within electrical power switchgear and control components.
  • Single-phase Riser Pole Molded Vacuum Interrupter (MVI)
  • 27kV voltage rating for distribution networks
  • 600 Amp termination capacity
  • Air bushings designed for riser pole installations
  • External 80 control with selectable single/three-phase trip

Specifications

Amperage Rating
600 A
Application
Make, Carry and Automatically Interrupt Currents
Connection Type
Air Bushings
Current Rating
600 A
Length
30-5/8 in
Length
778 mm
Material
EPDM Rubber
Material
Molded Vacuum
Number Of Phases
1
Operating Temperature, Maximum
149 F
Operating Temperature, Maximum
65 C
Operating Temperature, Minimum
-40 F
Operating Temperature, Minimum
-40 C
Poles
1
Series
RMVI
Special Features
EPDM Molded Rubber Insulation. Field Programmable with a Wide Range of Time-Circuit Characteristic (TCC) Curves and Trip Settings. Control Monitors the Circuit Condition
Standard
ANSI C37.60, IEEE 386, ANSI C57.12.28
Type
Molded Vacuum Interrupter - Single Phase
Voltage Rating
27 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
