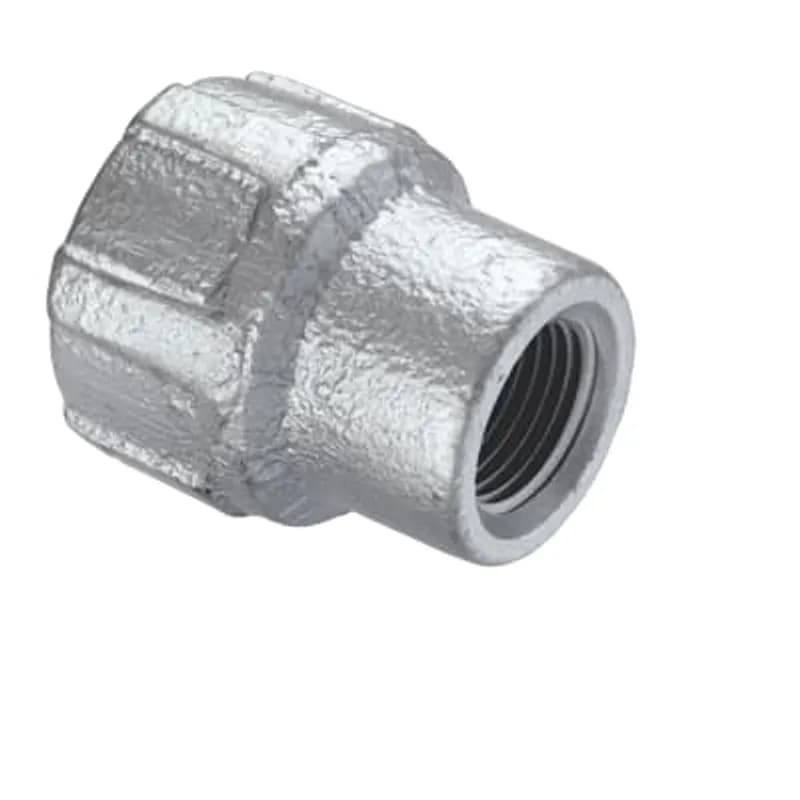

ABB - Installation Products REC21-TB - Funnel Shaped Reducers for Hazardous and Non Hazardous Locations, Iron Zinc Plated, A (NPT) 3/4 Inch, B (NPT) 1/2 Inch 14

ABB Installation Products REC21-TB Funnel Shaped Reducers for Hazardous and Non Hazardous Locations, Iron Zinc Plated, A…

UPC: 786210058573


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB REC21-TB is a funnel-shaped reducer designed for threaded heavy wall conduit systems in both hazardous and non-hazardous locations. This iron zinc-plated reducer provides a secure transition between 3/4" NPT inlet and 1/2" NPT outlet, enabling efficient conduit size reduction while maintaining system integrity. The funnel design facilitates easier wire pulling and cable management during installation, reducing labor time and potential damage to conductors. Constructed from durable iron with a zinc-plated finish, the REC21-TB offers corrosion resistance suitable for industrial environments. The reducer features NPT threads with a minimum of five full threads and includes an integral bushing to prevent wire damage during installation. With a catalog number REC21-TB and dimensions of 1⅝" (C), this component is engineered for use in threaded conduit systems where precise size transitions are required. The zinc plating provides additional protection against environmental factors, extending service life in demanding applications. This reducer is part of ABB's T&B hazardous location fittings series, designed for compatibility with heavy wall conduit systems. The product is suitable for applications requiring conduit hub size reduction or replacement of couplings and reducers in existing installations.
  • 3/4" NPT inlet to 1/2" NPT outlet transition
  • Funnel design for easier wire pulling and cable management
  • Iron construction with zinc-plated finish for corrosion resistance
  • NPT threads with minimum five full threads and integral bushing
  • Suitable for hazardous and non-hazardous location installations

Specifications

Application
Connects Two Different Sizes of Conduit Together or is Used to Replace a Coupling and Reducer in an Installation
Material Quality
Iron
Special Features
All Hubs have NPT Threads with a Minimum of Five Full Threads and Integral Bushing for Preventing Damage to Wires
Standard
UL E193396
Trade Size
3/4 to 1/2 in
Type
Reducer
Package Dimensions (L x W x H)
7.3 IN x 5.2 IN x 9 IN
Package Dimensions (L x W x H)
18.542 cm x 13.208 cm x 22.86 cm
Package Weight (Imperial)
1.2400 L
Package Weight (Metric)
0.5630 kg
AV Connector Adapter for IP66 Static Connector - Fits to Connector Size NW/Metric 23/25 Output Fits to Connector Size NW/Metric 12/16, Color Gray

SAVD-23/12GT

AV Connector Adapter for IP66 Static Connector - Fits to Connector Size NW/Metric 23/25 Output Fits to Connector Size NW/Metric 12/16, Color Gray
MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Male with O-Ring, Cable Diameter 17.45-20.62mm (.687-.812")

5544W

MAX-LOC® Strain Relief Cord-Sealing Grip, 3/4" NPT, Straight Male with O-Ring, Cable Diameter 17.45-20.62mm (.687-.812")
Transition Coupling, Rigid/IMC Conduit to Liquidtight FMC, 1/2 Inch, NPT Threads

4370-LT

Transition Coupling, Rigid/IMC Conduit to Liquidtight FMC, 1/2 Inch, NPT Threads
Funnel Shaped Reducers for Hazardous and Non Hazardous Locations, Iron Zinc Plated, A (NPT) 1 Inch, B (NPT) 3/4 Inch 14

REC32-TB

Funnel Shaped Reducers for Hazardous and Non Hazardous Locations, Iron Zinc Plated, A (NPT) 1 Inch, B (NPT) 3/4 Inch 14
Funnel Shaped Reducers for Hazardous and Non Hazardous Locations, Iron Zinc Plated, A (NPT) 1 Inch, B (NPT) 1/2 Inch 14

REC31-TB

Funnel Shaped Reducers for Hazardous and Non Hazardous Locations, Iron Zinc Plated, A (NPT) 1 Inch, B (NPT) 1/2 Inch 14
1 Inch Combination Compression Coupling, Steel for Use with EMT Conduit

532

1 Inch Combination Compression Coupling, Steel for Use with EMT Conduit
1-1/2 Inch to 1/2 Inch Reducer, Aluminum, for Use with Rigid/IMC Conduit

607AL

1-1/2 Inch to 1/2 Inch Reducer, Aluminum, for Use with Rigid/IMC Conduit
1-1/4 Inch to 3/4 Inch Reducer, Aluminum, for Use with Rigid/IMC Conduit

605AL

1-1/4 Inch to 3/4 Inch Reducer, Aluminum, for Use with Rigid/IMC Conduit

Frequently Asked Questions

What material is the ABB REC21-TB reducer made of?

The ABB REC21-TB reducer is constructed from iron with a zinc-plated finish.

What are the NPT sizes for the REC21-TB reducer?

The REC21-TB reducer has a 3/4 Inch NPT inlet and a 1/2 Inch NPT outlet.

Can the REC21-TB reducer be used in hazardous locations?

Yes, the ABB REC21-TB reducer is designed for use in both hazardous and non-hazardous locations.

What is the purpose of the funnel shape on this reducer?

The funnel shape facilitates easier wire pulling and cable management during installation.
