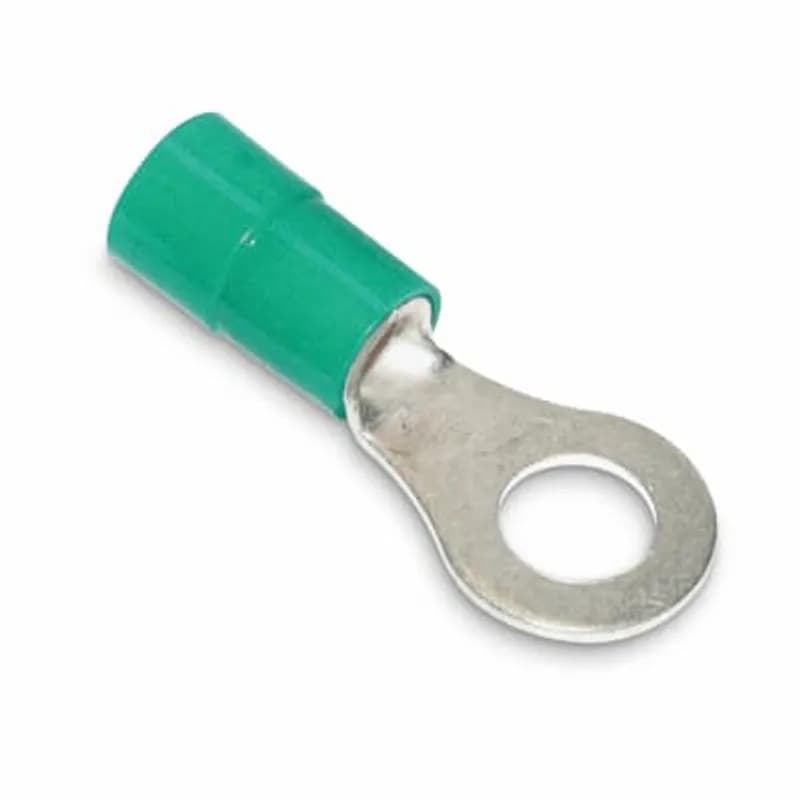

ABB Installation Products RBC14-12 Nylon Insulated Heavy-Duty Ring Terminal, Length 1.49 Inches, Width .76 Inches, Maximum…
UPC: 786210899077
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Heavy-duty ring terminal for #16-#14 AWG wire
- 1/2 inch bolt hole for secure mounting
- Tin-plated copper construction for corrosion resistance
- Durable nylon insulation for environmental protection
- Green color for easy identification
Specifications
Color | Green |
Connection Type | Ring Terminal |
Material | Copper |
Material | Copper (tin‑plated) with nylon insulation |
Material | Tin-Plated Copper, Nylon |
Material | Nylon, Copper, Tin Plated |
Material | Tin-Plated Copper with Nylon Insulation |
Material | Tin-Plated Copper |
Mounting Type | Bolt Hole |
Mounting Type | Bolt Hole (1/2 Inch) |
Series | RBC14-12 |
Series | RBC |
Size | 1.49" L x 0.76" W, 0.210" max insulation diameter, 1/2" bolt hole |
Size | 1.49" L, 0.76" W, Max insulation 0.210" |
Size | Length 1.49 in, Width 0.76 in, Max Insulation 0.210 in, Bolt Hole 0.5 in |
Size | Length 1.49 Inches, Width 0.76 Inches, Maximum Insulation 0.210 Inches |
Size | Length: 1.49 Inches, Width: 0.76 Inches, Maximum Insulation Diameter: 0.210 Inches, Bolt Hole: 1/2 Inch |
Size | 1.49" L x 0.76" W, 0.210" max insulation, 1/2" bolt hole |
Size | Length 1.49 Inches, Width 0.76 Inches, Maximum Insulation 0.210 Inches, Bolt Hole 0.5 Inches |
Size | Length 1.49 Inches, Width 0.76 Inches, Maximum Insulation 0.210 Inches, Bolt Hole 1/2 Inch |
Special Features | Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams |
Standard | UL E9809 / UL E9809 |
Standard | UL E9809 |
Type | Nylon Insulated Heavy-Duty Ring Terminal |
Voltage Rating | 600 V |
Wire Size | 16-14 AWG |
Package Dimensions (L x W x H) | 2.5 IN x 1.3 IN x 3.5 IN |
Package Dimensions (L x W x H) | 6.35 cm x 3.302 cm x 8.89 cm |
Package Weight (Imperial) | 0.010 L |
Package Weight (Metric) | 0.005 kg |
