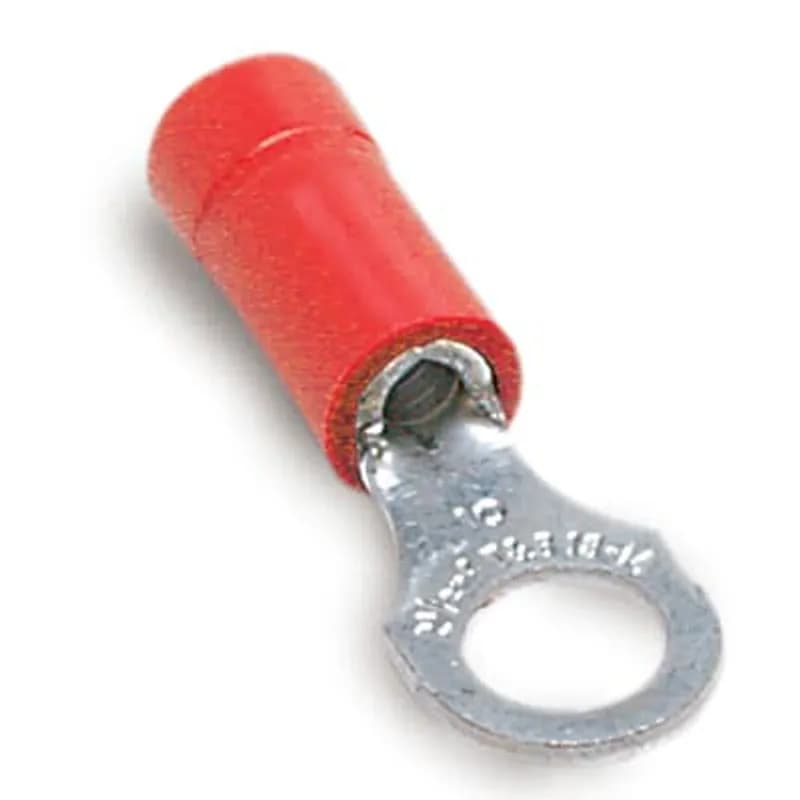

ABB - Installation Products RA713M - Nylon Insulated Ring Terminal, Length 1.10 Inches, Width .46 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Tin Plated, On Mylar Tape, 1,000 Pack

ABB Installation Products RA713M Nylon Insulated Ring Terminal, Length 1.10 Inches, Width .46 Inches, Maximum Insulation…

UPC: 786210861678

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB RA713M (SKU: RA713M) is a tin-plated copper nylon insulated ring terminal designed for secure electrical connections in industrial settings. This terminal features a ring tongue design that ensures a reliable connection, even in applications with high vibration, due to its ability to prevent disconnection unless the screw is fully removed. The integrated metal insulation grip sleeve crimps onto the wire insulation, providing crucial protection and strain relief to the crimp joint, further enhancing its suitability for high-vibration environments. Internal barrel serrations are incorporated to ensure optimal wire contact and achieve maximum tensile strength. Rated for UL Flammability UL 94 HB and a maximum insulation temperature of 221°F (105°C), this terminal is also UL and CSA rated up to 600V per UL 486A/B. The RA713M has a wire range of #22-–16 AWG, a 1/4" bolt hole size, and dimensions of 1.10 inches in length and 0.46 inches in width. Its red color coding aids in identification, and it is supplied on Mylar tape for organized handling. Each pack contains 1,000 terminals, making it an efficient choice for bulk installations in electrical panels, control systems, and industrial machinery where robust insulation and corrosion resistance are paramount. This terminal is manufactured by ABB - Installation Products.
  • Ring tongue design for secure connection in high vibration applications.
  • Metal insulation grip sleeve provides protection and strain relief.
  • Internal barrel serrations ensure good wire contact and maximum tensile strength.
  • UL Flammability UL 94 HB; Max Insulation Temp: 221°F (105°C).
  • UL and CSA rated up to 600V per UL 486A/B.
