UPC: 786210856698
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*

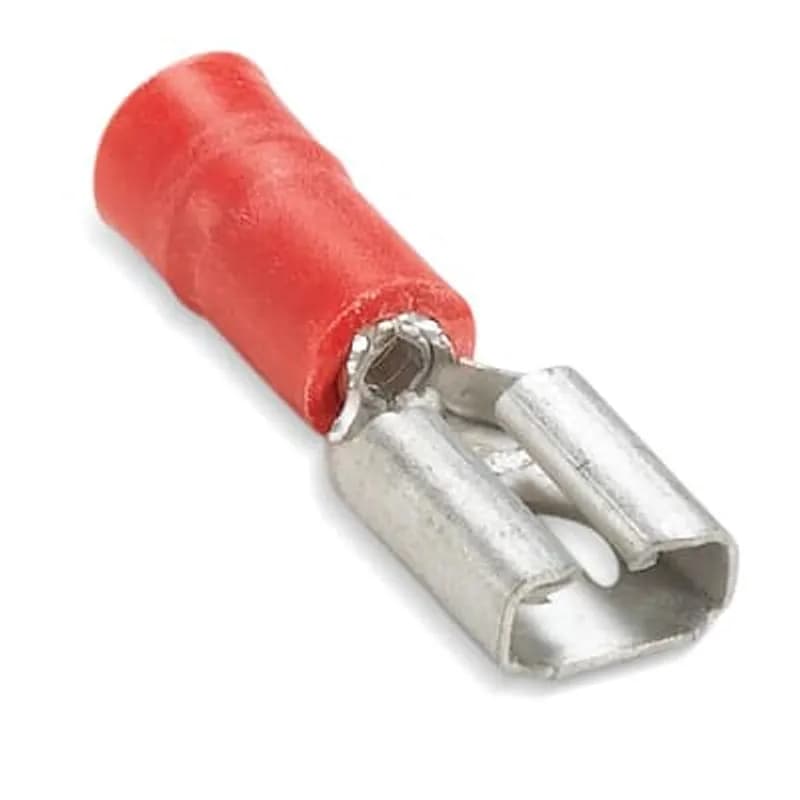

Overview
- High-quality brass construction with tin plating for superior conductivity and corrosion resistance
- Fully insulated with red nylon for enhanced safety and protection against short circuits
- Compatible with #22-#18 AWG wire, ideal for a wide range of electrical applications
- Compact design with 0.250x0.032 tab size for easy installation in tight spaces
- Available in a 1,000-pack for bulk industrial and commercial use
Specifications
Color | Red |
Connection Type | Female Disconnect |
Finish | Tin Plated |
Insulation | Nylon/Polyamide |
Insulation | Yes |
Material | Brass |
Material | Brass, Tin Plated, Nylon |
Material | Brass, Tin Plated |
Material | Tin-Plated Brass |
Mounting Type | Tab Size 0.250x0.032 |
Series | RA |
Series | RA2573 |
Size | 1.01 inches (Length) x 0.38 inches (Width) |
Size | Length 1.01 Inches, Width 0.38 Inches |
Special Features | Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength |
Standard | UL E66716 / UL E66716 |
Type | Nylon Fully Insulated Female Disconnect |
Package Dimensions (L x W x H) | 6.1 IN x 5.1 IN x 4.19 IN |
Package Dimensions (L x W x H) | 15.494 cm x 12.954 cm x 10.6426 cm |
Package Weight (Imperial) | 0.001 L |
Package Weight (Metric) | 0.001 kg |
