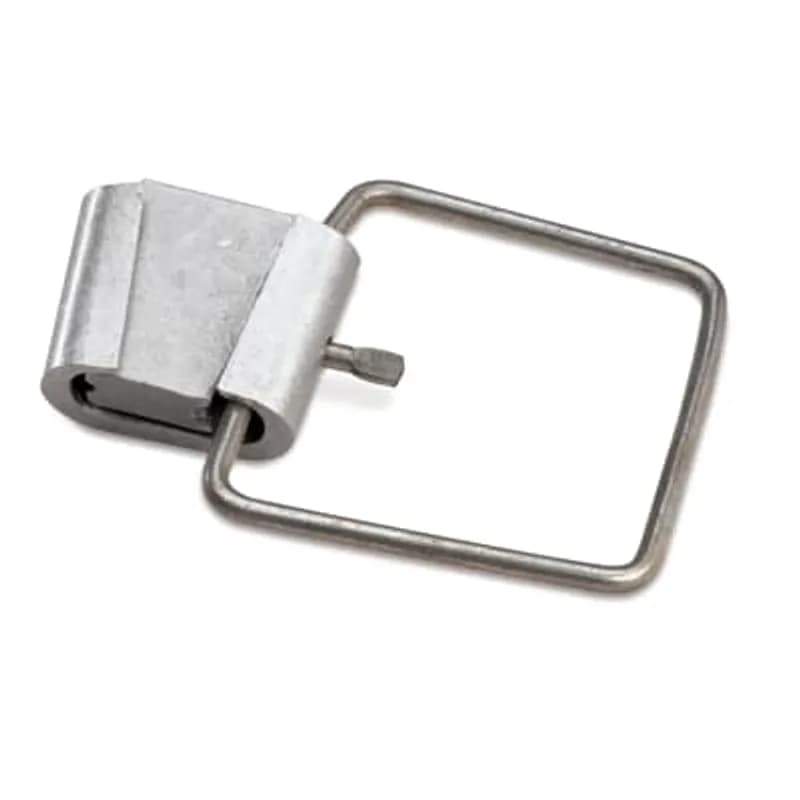

ABB - Installation Products PT-35002-S10 - PowerTap Stirrups, wire size 350 AAC, bail size 1/0

ABB Installation Products PT-35002-S10 PowerTap Stirrups, wire size 350 AAC, bail size 1/0

UPC: 783786743537


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PowerTap Stirrups, SKU PT-35002-S10, are designed for secure and reliable electrical connections in industrial applications. This specific model is engineered to accommodate wire sizes of 350 AAC (All Aluminum Conductor) and features a bail size of 1/0. Manufactured by ABB - Installation Products, these stirrups are a critical component for ensuring the integrity of power distribution systems. The PowerTap stirrup provides a robust connection point, facilitating the safe and efficient transfer of electrical current. Its construction is focused on durability and performance, meeting the stringent requirements of industrial environments where reliable connections are paramount. The 350 AAC wire capacity indicates its suitability for medium to heavy-duty power transmission lines. The 1/0 bail size ensures compatibility with standard connectors and hardware used in these applications. ABB's commitment to quality in their Installation Products line means that the PT-35002-S10 is built to last, minimizing maintenance needs and downtime. This stirrup is essential for electrical contractors, utility companies, and industrial facilities requiring dependable power tap connections. Its precise specifications ensure it integrates seamlessly into existing infrastructure, providing a secure point for branching or terminating conductors.
  • Designed for 350 AAC wire size
  • Features a 1/0 bail size
  • Manufactured by ABB - Installation Products
  • Ensures secure and reliable electrical connections
  • Ideal for industrial power distribution

Specifications

Application
Built for Strength, Conductivity and Longevity
Conductor Size
350 AAC kcmil
Current Rating
350 A
Environmental Conditions
Outdoor Use
Finish
Bare Wedge;Tin Plated
Material
Aluminum;Copper
Size
2.125 inch Long Wedge, 1.965 inch long C-Body, 4.525 inch Wide Stirrup
Size
1/0
Special Features
Low Stresses produced at interfaces precludes significant conductor creep and minimize loss of clamping force on connectors. Contact forces are nearly constant during temperature changes or conductor compaction. Driving action helps remove oxidation from Conductor and lowers contact resistance
Standard
RUS Accepted
Tap Size
1/0 AWG
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Stirrup Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
