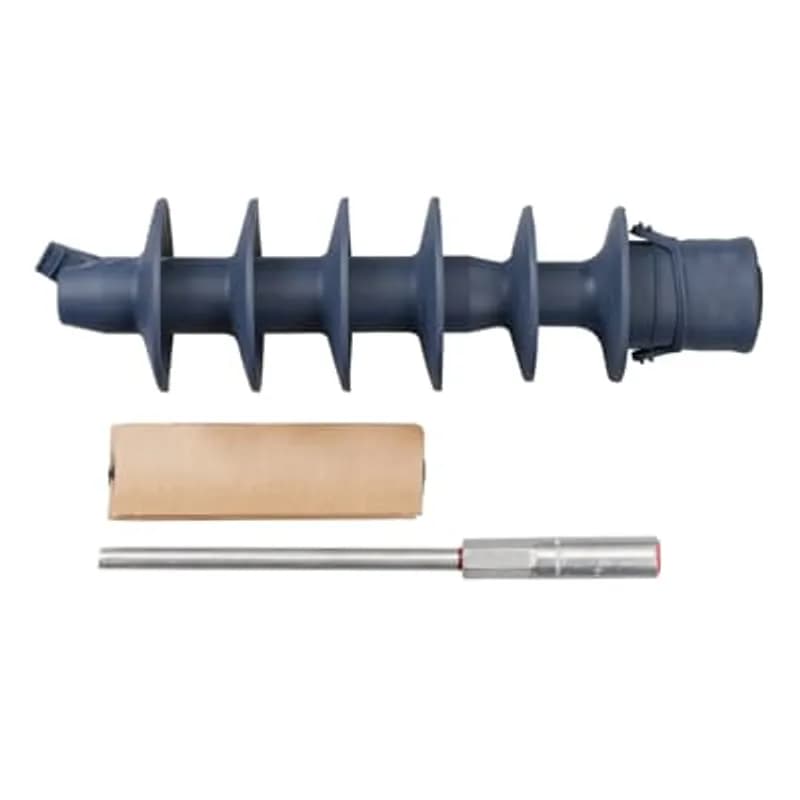

ABB - Installation Products PCT21260-4 - 25kv, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.

ABB Installation Products PCT21260-4 25kv, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum…

UPC: 783786499533

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PCT21260-4 is a single-piece terminator designed for 25kV power cable termination applications. Manufactured by ABB Installation Products, this Class 1 terminator is specifically engineered for use with aluminum conductors only. It features an integrated aluminum rod contact, ensuring a secure and reliable connection for your power distribution needs. The PCT21260-4 is compatible with a conductor size range of 3/0 Stranded/Compressed or 4/0 Compact/Solid. Its insulation diameter range accommodates sizes from .830 to 1.180 inches, providing flexibility for various cable types. This termination solution is crucial for maintaining the integrity and safety of medium-voltage power systems. The robust construction and precise engineering from ABB Installation Products guarantee dependable performance in demanding electrical environments. When specifying termination components, the PCT21260-4 offers a straightforward, single-piece solution that simplifies installation while meeting critical electrical standards for 25kV applications. Its design prioritizes efficient current transfer and long-term reliability, making it a sound choice for utility, industrial, and commercial power infrastructure projects. Ensure proper application by verifying conductor size and insulation diameter against the specified ranges. The SKU for this product is PCT21260-4, and it is part of the UNSPSC code 26121648 classification. Trust ABB Installation Products for your essential electrical connection requirements.
  • 25kV Voltage Rating for medium-voltage applications
  • Single Piece Terminator (Class 1) for simplified installation
  • Includes Aluminum Rod Contact for aluminum conductors only
  • Compatible with 3/0 Stranded/Compressed or 4/0 Compact/Solid conductors
  • Accommodates Insulation Diameter Range from .830 to 1.180 inches

Specifications

Application
Cable Termination, 25kV
Color
Gray
Conductor Size
3/0 STR AWG , 3/0 COMPR AWG , 4/0 SOL AWG , 4/0 COMPT AWG
Number Of Terminals
(1) Single Phase
Special Features
Rod Contact
Standard
IEEE 48 for Riser Pole, Padmount Indoor and Outdoor Applications
Type
Cable Termination
Voltage Rating
25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.9300 L
Package Weight (Metric)
0.4220 kg
25kv, Single Piece Terminator (Class 1), One Hole Spade Lug, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.

PCT2-0260-5

25kv, Single Piece Terminator (Class 1), One Hole Spade Lug, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.
15kV, Single Piece Terminator (Class 1), Two-Hole Spade Lug. Power Cable Termination, Conductor Size - 2/0 Stranded/Compressed or 3/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT10250-3

15kV, Single Piece Terminator (Class 1), Two-Hole Spade Lug. Power Cable Termination, Conductor Size - 2/0 Stranded/Compressed or 3/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
15kV, Single Piece Terminator (Class 1), Two Hole Spade Lug. Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT10270-3

15kV, Single Piece Terminator (Class 1), Two Hole Spade Lug. Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .640 to 1.070 inches.
25kv, Single Piece Terminator (Class 1), includes Universal Aluminum Rod Contact for Aluminum or Copper Conductors, Power Cable Termination, Conductor Size - #2 Stranded/Compressed or #1 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.

PCT20220-4

25kv, Single Piece Terminator (Class 1), includes Universal Aluminum Rod Contact for Aluminum or Copper Conductors, Power Cable Termination, Conductor Size - #2 Stranded/Compressed or #1 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.
25kv, Single Piece Terminator (Class 1), Two Hole Spade Lug, Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .830 to 1.180 inches.

PCT20270-3

25kv, Single Piece Terminator (Class 1), Two Hole Spade Lug, Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .830 to 1.180 inches.
15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 2/0 Stranded/Compressed or 3/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT11250-4 (1)

15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 2/0 Stranded/Compressed or 3/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
15kV, Single Piece Terminator (Class 1), One-Hole Spade Lug. Power Cable Termination, Conductor Size - #2 Stranded/Compressed or #1 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT10220-5

15kV, Single Piece Terminator (Class 1), One-Hole Spade Lug. Power Cable Termination, Conductor Size - #2 Stranded/Compressed or #1 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
15kV, Single Piece Terminator (Class 1), Two Hole Spade Lug. Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT1-1270-3

15kV, Single Piece Terminator (Class 1), Two Hole Spade Lug. Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .640 to 1.070 inches.

Frequently Asked Questions

What is the maximum voltage rating for this terminator?

The PCT21260-4 has a voltage rating of 25kV.

What type of conductors is this terminator designed for?

This terminator is designed for aluminum conductors only, specifically 3/0 Stranded/Compressed or 4/0 Compact/Solid.

What is the compatible insulation diameter range?

The compatible insulation diameter range for this terminator is from .830 to 1.180 inches.

What is the conductor size compatibility?

The terminator is compatible with 3/0 Stranded/Compressed or 4/0 Compact/Solid conductor sizes.

What is the manufacturer of the PCT21260-4?

The manufacturer of the PCT21260-4 is ABB - Installation Products.
