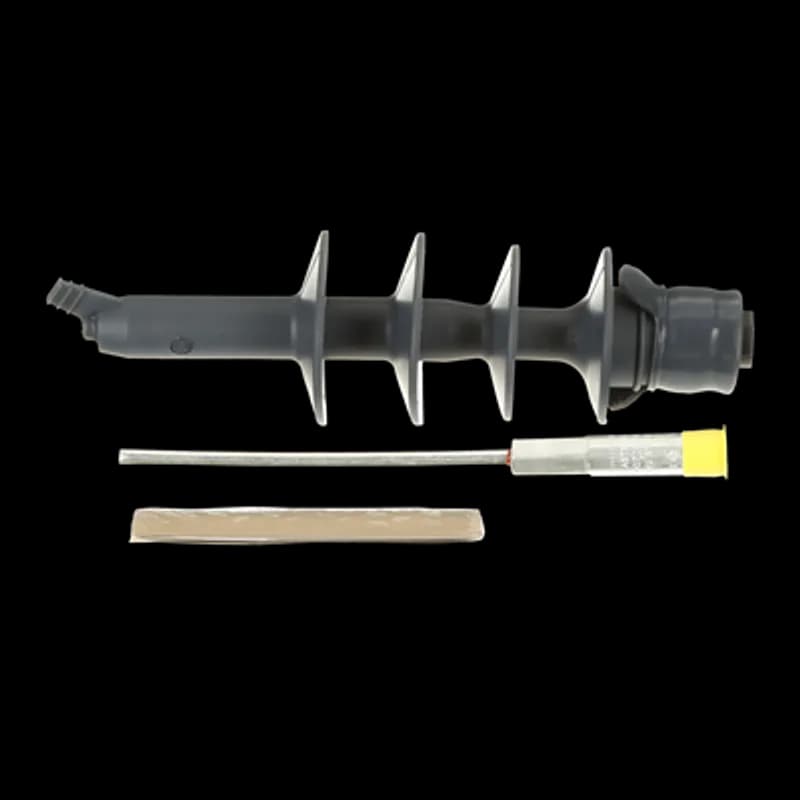

ABB - Installation Products PCT11240-4 - 15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 1/0 Stranded/Compressed or 2/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
More images
ABB - Installation Products

PCT11240-4

UPC: 783786470211

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 15

Multiplier: 15

*Contact for lower quantities*

Overview

ABB PCT11240-4 is a Class 1, single-piece terminator designed for 15kV power cable applications. This terminator includes an integrated aluminum rod contact, ensuring compatibility with 1/0 stranded/compressed or 2/0 compact/solid aluminum conductors. The unit accommodates insulation diameters ranging from 0.640 to 1.070 inches, providing a precise fit for standard medium-voltage cable configurations. Manufactured by ABB Installation Products, this terminator is optimized for reliable power cable termination in industrial and utility installations where aluminum conductors are specified. The single-piece design simplifies installation, reducing labor time and potential error points compared to multi-component termination systems. This terminator is suitable for Class 1 applications, meeting medium-voltage termination requirements without additional stress cones or complex assembly steps. The aluminum rod contact ensures consistent electrical continuity and mechanical stability, critical for long-term performance in power distribution systems. Use this terminator in substations, switchgear, and industrial motor control centers where 15kV-rated terminations are required for aluminum conductors within the specified size and insulation range.
  • 15kV Class 1 single-piece terminator for aluminum conductors
  • Compatible with 1/0 stranded/compressed or 2/0 compact/solid aluminum cables
  • Accommodates insulation diameters from 0.640 to 1.070 inches
  • Integrated aluminum rod contact for reliable electrical continuity
  • Manufactured by ABB Installation Products (SKU: PCT11240-4)

Specifications

Application
Cable Termination, 15kV
Color
Gray
Conductor Size
1/0 STR AWG , 1/0 COMPR AWG , 2/0 SOL AWG , 2/0 COMPT AWG
Number Of Terminals
(1) Single Phase
Special Features
Rod Contact
Standard
IEEE 48 for Riser Pole, Padmount Indoor and Outdoor Applications
Type
Cable Termination
Voltage Rating
15 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7500 L
Package Weight (Metric)
0.3400 kg
15kV, Single Piece Terminator (Class 1), includes Universal Aluminum Rod Contact as standard, Power Cable Termination, Conductor Size - 1/0 Stranded/Compressed or 2/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT10240-4

15kV, Single Piece Terminator (Class 1), includes Universal Aluminum Rod Contact as standard, Power Cable Termination, Conductor Size - 1/0 Stranded/Compressed or 2/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT11260-4

15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT11270-4

15kV, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .640 to 1.070 inches.
15kV, Single Piece Terminator (Class 1), Two-Hole Spade Lug. Power Cable Termination, Conductor Size - #1 Stranded/Compressed or 1/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT10230-3

15kV, Single Piece Terminator (Class 1), Two-Hole Spade Lug. Power Cable Termination, Conductor Size - #1 Stranded/Compressed or 1/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
25kv, Single Piece Terminator (Class 1), One Hole Spade Lug, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.

PCT2-0260-5

25kv, Single Piece Terminator (Class 1), One Hole Spade Lug, Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.
15kV, Single Piece Terminator (Class 1), One Hole Spade Lug. Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.

PCT1-0260-5

15kV, Single Piece Terminator (Class 1), One Hole Spade Lug. Power Cable Termination, Conductor Size - 3/0 Stranded/Compressed or 4/0 Compact/Solid, Use for Insulation Diameter Range from .640 to 1.070 inches.
25kv, Single Piece Terminator (Class 1), includes Universal Aluminum Rod Contact for Aluminum or Copper Conductors, Power Cable Termination, Conductor Size - 1/0 Stranded/Compressed or 2/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.

PCT20240-4

25kv, Single Piece Terminator (Class 1), includes Universal Aluminum Rod Contact for Aluminum or Copper Conductors, Power Cable Termination, Conductor Size - 1/0 Stranded/Compressed or 2/0 Compact/Solid, Use for Insulation Diameter Range from .830 to 1.180 inches.
25kv, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .830 to 1.180 inches.

PCT21270-4

25kv, Single Piece Terminator (Class 1), includes Aluminum Rod Contact for Aluminum Conductors only, Power Cable Termination, Conductor Size - 4/0 Stranded/Compressed, Use for Insulation Diameter Range from .830 to 1.180 inches.
