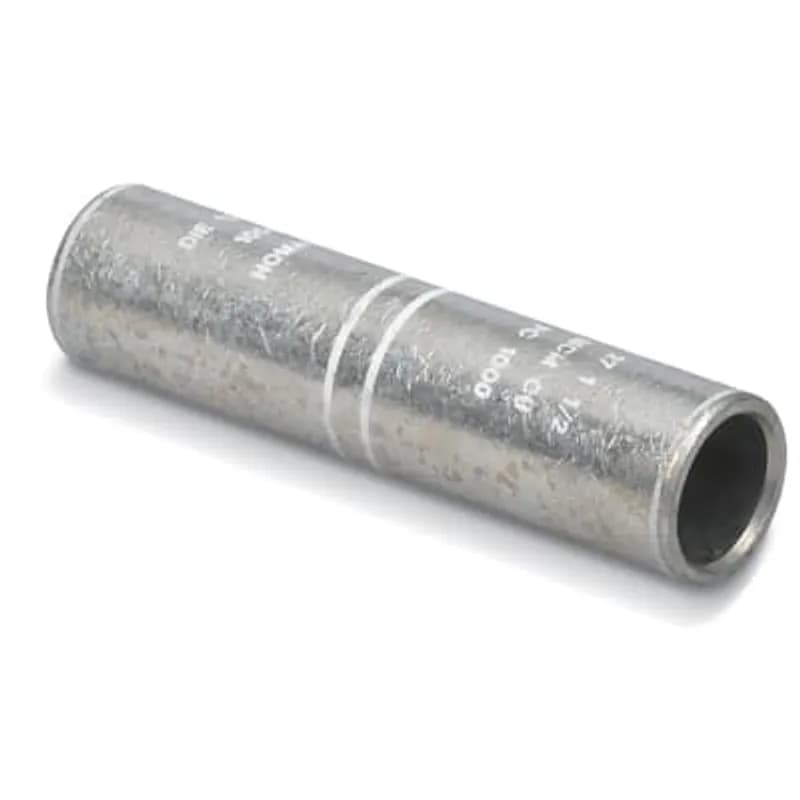

ABB Installation Products PC 500 Tin Plated Copper Straight Splice, Wire Size 500 kcmil Stranded Copper. Dies TH, 87, 20…
UPC: 783786741205
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Tin Plated Copper construction for corrosion resistance
- Designed for 500 kcmil Stranded Copper conductors
- Straight Splice configuration for easy installation
- Oil Stop feature prevents oil migration
- Compatible with dies TH, 87, 20, and 1
Specifications
Application | Provide High Conductivity Connections and Minimiz Voltage Drops |
Conductor Range | 500 kcmil |
Connection | Compression |
Finish | Tin-Plated |
Insulation | None |
Material | Copper |
Number Of Conductors | 2 |
Size | Length 4-5/8 inches |
Special Features | Solid Center Stop Prevents Oil Seepage. Tin Plated to Resist Corrosion |
Type | Compression Splice |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.5600 L |
Package Weight (Metric) | 0.2540 kg |
SL500N
2Hole Long Barrel Copper StackedCompression Lug500MCM-1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing.They are designed for usewith the L-NSeries. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.
RRK 500 CU
Copper Compression Splice Kits, Wire Range 500, Connector Length 6-3/4 Inches, Insulator Length 10-3/4 Inches, Dies 840,tx,76,249,11a, No Color Code. For Copper Conductors Only.
PTC 2
Tin Plated Copper Tapered Compression Splices - solid center oil stop, wire size #2 Stranded CU. Installing Dies TL-TN, 33, 10, 3/8. Length 2-1/8 inch. Barrel Length 31/32 inch.PTC 2/0
Tin Plated Copper Tapered Compression Splices - solid center oil stop, wire size 2/0 Stranded CU. Installing Dies TS, 45, 13, 9/16. Length 2-5/16 inch. Barrel Length 1-5/64 inch.PTC 250
Tin Plated Copper Tapered Compression Splices - solid center oil stop, wire size 250 kcmil CU. Installing Dies TR, 60, 16, 11/16. Length 2-5/8 inch. Barrel Length 1-1/4 inch.PTC 1/0
Tin Plated Copper Tapered Compression Splices - solid center oil stop, wire size 1/0 Stranded CU. Installing Dies TQ, 42, 12, 1/2. Length 2-1/8 inch. Barrel Length 31/32 inch.PTC 300
Tin Plated Copper Tapered Compression Splices - solid center oil stop, wire size 300 kcmil CU. Installing Dies 781, 17, TV, 66. Length 2-11/16 inch. Barrel Length 1-9/32 inch.Frequently Asked Questions
What wire size is compatible with the PC 500 splice?
The ABB PC 500 splice is designed for 500 kcmil stranded copper conductors.
What dies are compatible with the PC 500 splice?
The PC 500 splice is compatible with dies TH, 87, 20, and 1.
What is the material of the PC 500 splice?
The PC 500 splice is made of tin-plated copper.
Does the PC 500 splice have an oil stop feature?
Yes, the PC 500 splice features an 'Oil Stop' design to prevent oil migration.
What is the length of the PC 500 splice?
The PC 500 splice has a length of 4-11/16 inches.
